Photo,30m,Cable 90°,Emitter

Photo,30m,Cable 90°,Emitter

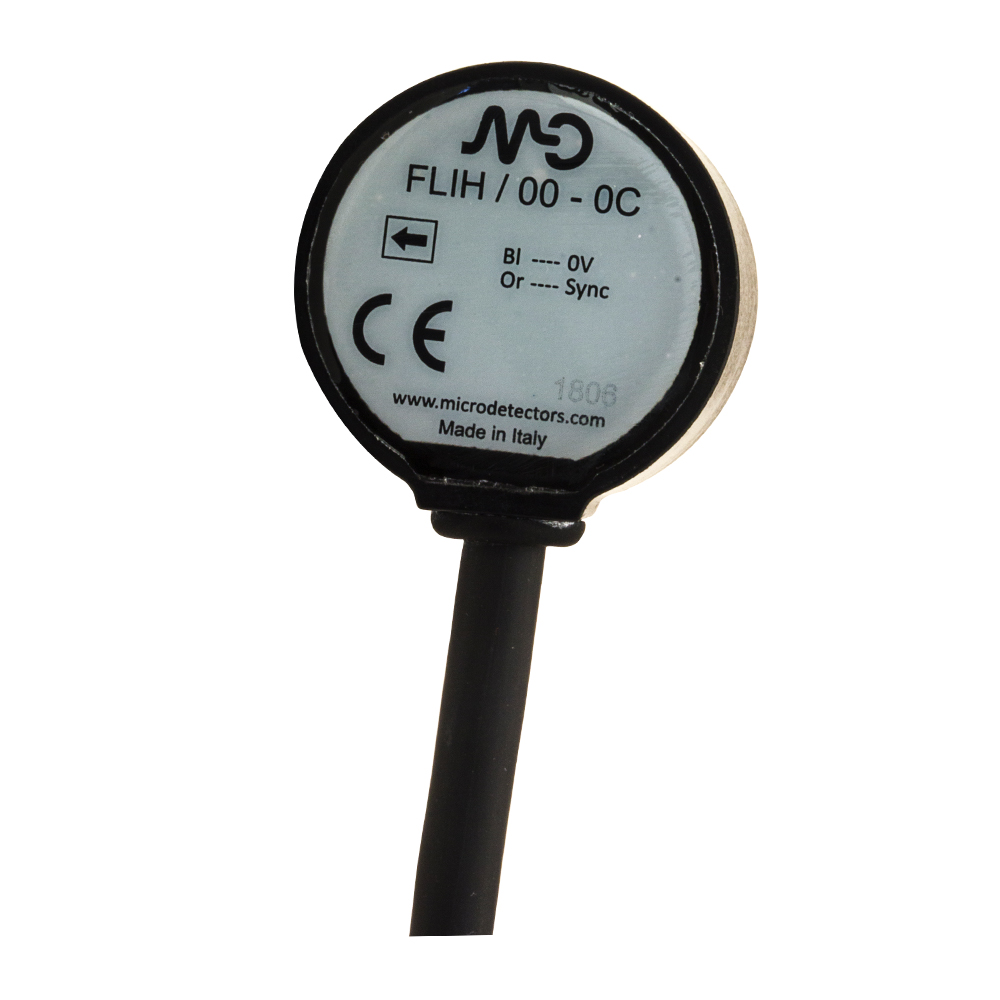

Photoelectric Applicative sensorEmitter 30 m T styleM18 plast. cable 5m at 90°

Article no.: FLIH/00-0C
Orderable item
Register
  • Description
    Overview

    Technical Features

    Detection properties
    Nominal sensing distance 30m
    Sensitivity adjustment No
    Application
    Function Principle Emitter
    Notes (3m for car washes)
    Emitter/Receiver Emitter
    Outputs
    Output type
    Electrical data
    Operating Voltage 19,2 … 28,8VDC
    LED indicators Green (RUN) Yellow (status output) Red (problem with otput)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Infrared (850nm)
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Weight 570 g (the pair)
    Housing Material PBT + PC
    Connections 5m PVC cable
    Active Head Material PC
    Tightening torque 1Nm
    Operating temperature -20..60°C (without freeze)
    Storage temperature -30..90°C (without freeze)
    Test/Approvals
    Approvals CE
    EMC compatibility EN 60947-5-2
    Degree of protection IP67 (front-head IP69K)
    Generical Data
    Operating Temperature - 20°C…+ 70°C (Without freeze)
    Mechanical Protection IP67 (front-head IP69K)
