Photo.M18,PNP-NO+NC,Cabl,Reflx
Photo.M18,Laser emiss.,PNP-NO+NC,Cable,Reflex

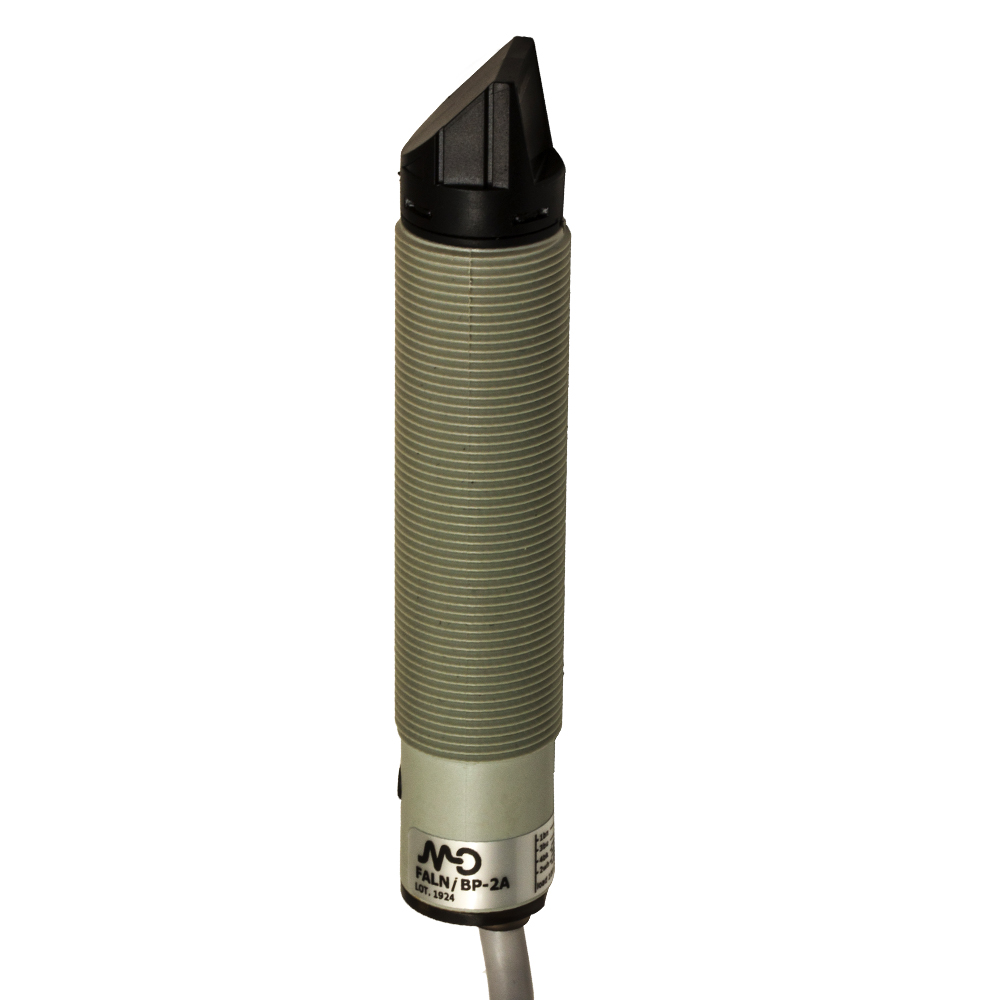

Photoelectric sensor M18 90° laser Retroreflective Polarized 20 m adj. PNP NO+NC plast. cable 2m axial
Orderable item
-
Description
Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Visible red laser emission models IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed
Technical Features
Detection propertiesNominal sensing distance 20m Thermal drift of Sr ≤10% Sr Repeat Accuracy 5% Sensitivity adjustment Teach-in ApplicationFunction Principle Polarized Notes On RL110 reflector ; 30m on RL201 , 5m on RL100D Optic position Radial 90° OutputsOutput type PNP NO+NC Output Function NO+NC Switching frequency 800Hz Response time 625µs Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 30mA Load current ≤100mA Leakage current ≤10μA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators Green power supply/yellow (LightON EG≥2)/yellow flashing (LightON 1 Time delay before availability ≤200ms Short-circuit protection Short circuit (autoreset), Overvoltage Reverse Polarity Protection Polarity inversal, Inpulsive voltage Emission LASER Red (650nm) class1 Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight) Mechanical dataDimensions M18 x 1/L=78,5mm Weight 50g Housing Material PBT/ PC cable exit Connections 2m PVC cable Active Head Material Glass / PC Tightening torque 1Nm Operating temperature - 15°C…+ 55° C (Without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1, screwdriver Generical DataDimensions M18 x 1/L=78,5mm Operating Temperature - 15°C...+ 55°C (Without freeze) Mechanical Protection IP67
