Photo.M18,PNP-NO+NC,Cable,Diff

Photo.M18,Laser emiss.,PNP-NO+NC,Cable,Diffuse

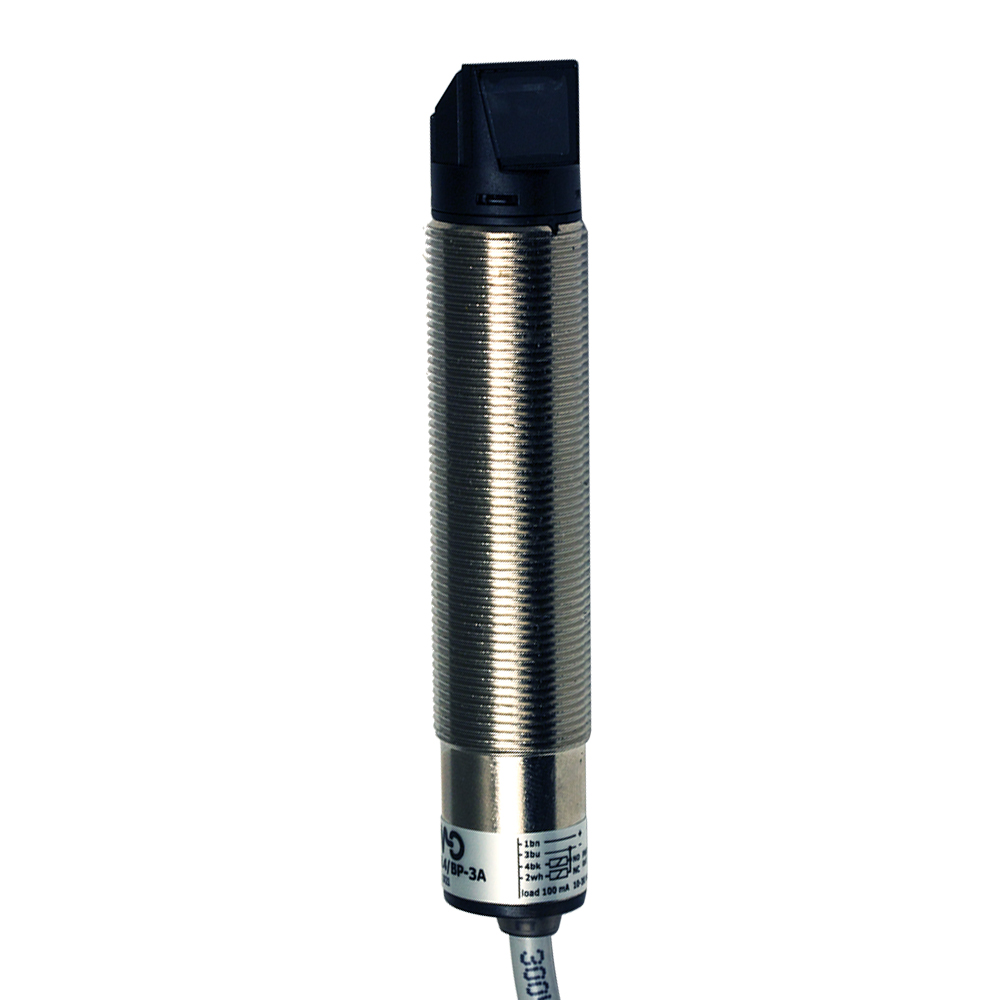

Photoelectric sensor M18 90° laser Diffuse 200 mm adj. PNP NO+NC met. cable 2m axial

Article no.: FAL4/BP-3A
Orderable item
Register
  • Description
    Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Visible red laser emission models IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed

    Technical Features

    Detection properties
    Nominal sensing distance 200mm
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Teach-in
    Application
    Function Principle Diffuse reflection (short distance, ≤200mm)
    Notes (focalized 100mm) white target 90% Kodak 200x200mm
    Optic position Radial 90°
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 800Hz
    Response time 625µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Green power supply/yellow (LightON EG≥2)/yellow flashing (LightON 1
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LASER Red (650nm) class1
    Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Dimensions M18 x 1/L=93,5mm
    Weight 130g
    Housing Material Nickel plated brass / PC cable exit
    Connections 2m PVC cable
    Active Head Material Glass / PC
    Tightening torque 25Nm
    Operating temperature -15°C...+ 55°C (Without freeze)
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories nuts M18 x 1, screwdriver
    Generical Data
    Dimensions M18 x 1/L=93,5mm
    Operating Temperature - 15°C...+ 55°C (Without freeze)
    Mechanical Protection IP67
