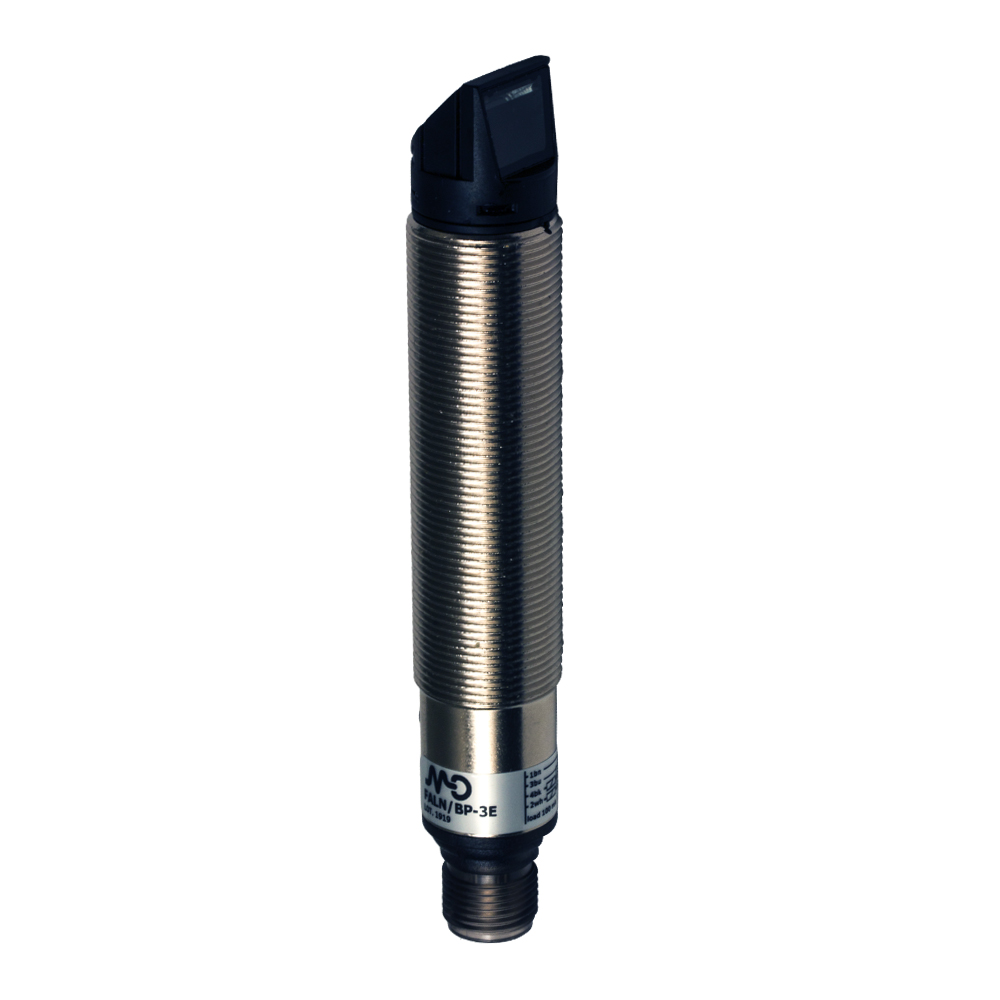

Ph.M18,PNP-NO+NC,M12,Reflx,ATX

Photo.M18,PNP-NO+NC,M12 plug,Reflex
Photoelectric sensor M18 90° laser Retroreflective Polarized 20 m adj. PNP NO+NC metal. conn. M12 II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C

Article no.: FALN/BP-3EAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 20m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Polarized
    Notes On RL110 reflector ; 30m on RL201 , 5m on RL100D
    Optic position Radial 90°
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 800Hz
    Response time 625µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Green power supply/yellow (LightON EG≥2)/yellow flashing (LightON 1
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LASER Red (650nm) class1
    Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Housing Material Nickel plated brass / PC plug
    Connections M12 plug
    Active Head Material Glass / PC
    Tightening torque 25Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M18 x 1, screwdriver
    Generical Data
    Dimensions M18 x 1/L=92,7mm
    Operating Temperature - 15°C...+ 55°C (Without freeze)
    Mechanical Protection IP67
