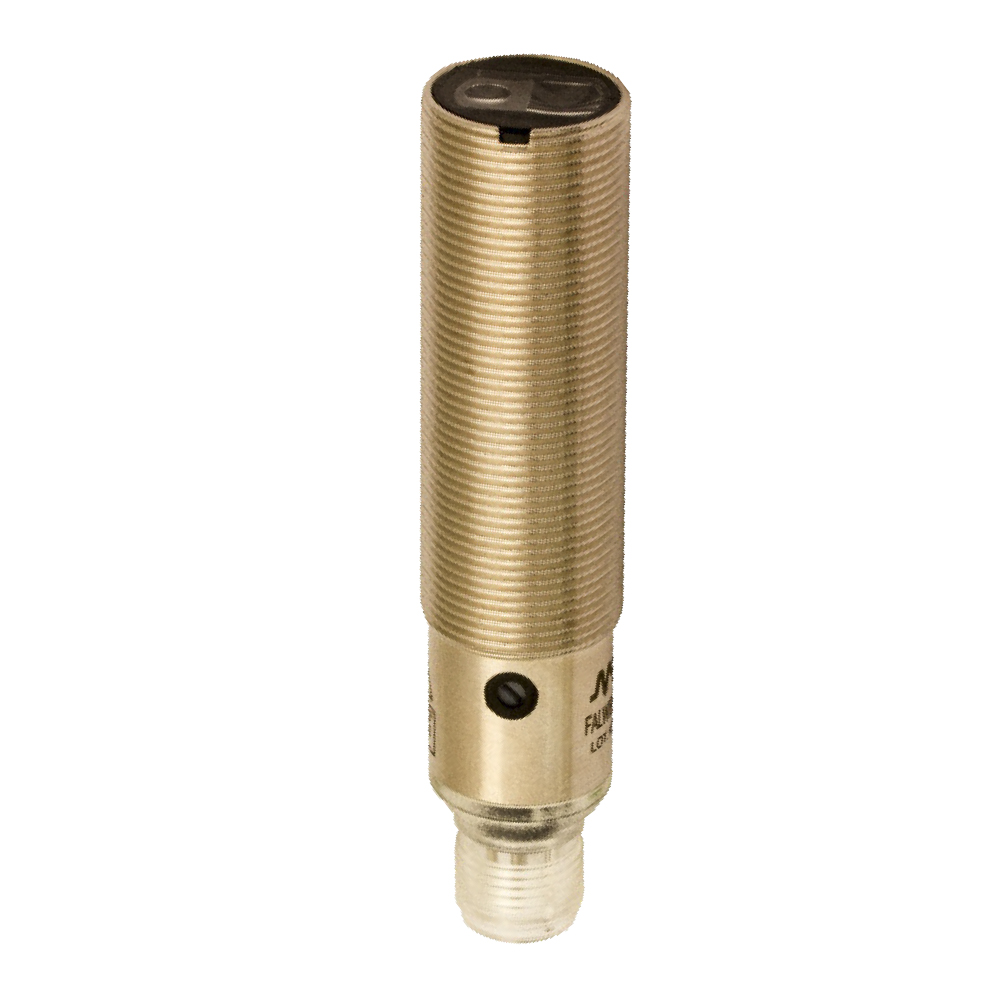

Photoelectric sensor M18 Axial laser class 1 Background Suppression 30..100 mm adj. NPN NO+NC metal plug M12
Orderable item
-
Description
Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Visible red laser emission models IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed
Technical Features
Detection propertiesNominal sensing distance 100mm Thermal drift of Sr ≤10% Sr Repeat Accuracy 10% Sensitivity adjustment Trimmer Minimum sensing distance (blind zone) 30mm ApplicationFunction Principle Blackground suppression Notes white target Kodak 90% 100 x 100mm Optic position Axial OutputsOutput type NPN NO+NC Output Function NO+NC Switching frequency 1,5kHz Response time 333µs Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 30mA Load current ≤100mA Leakage current ≤10μA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (Lon) or output status Lo/Do Time delay before availability ≤200ms Short-circuit protection Short circuit (autoreset), Overvoltage Reverse Polarity Protection Polarity inversal, Inpulsive voltage Emission LASER Red (650nm) class1 Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight) Mechanical dataDimensions M18 x 1/L=80m Weight 60g Housing Material Nickel plated brass / PA12 plug Connections M12 plug Active Head Material PMMA / ABS Tightening torque 25Nm Operating temperature -15°C...+ 55°C (Without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1, screwdriver Generical DataDimensions M18 x 1/L=80m Operating Temperature - 15°C...+ 55°C (Without freeze) Mechanical Protection IP67
