M18,Laser emiss.,Cabl,Emitter

Name: M18,Laser emiss.,Cabl,Emitter
SKU: FALH/X0-2A
Availability: BackOrder

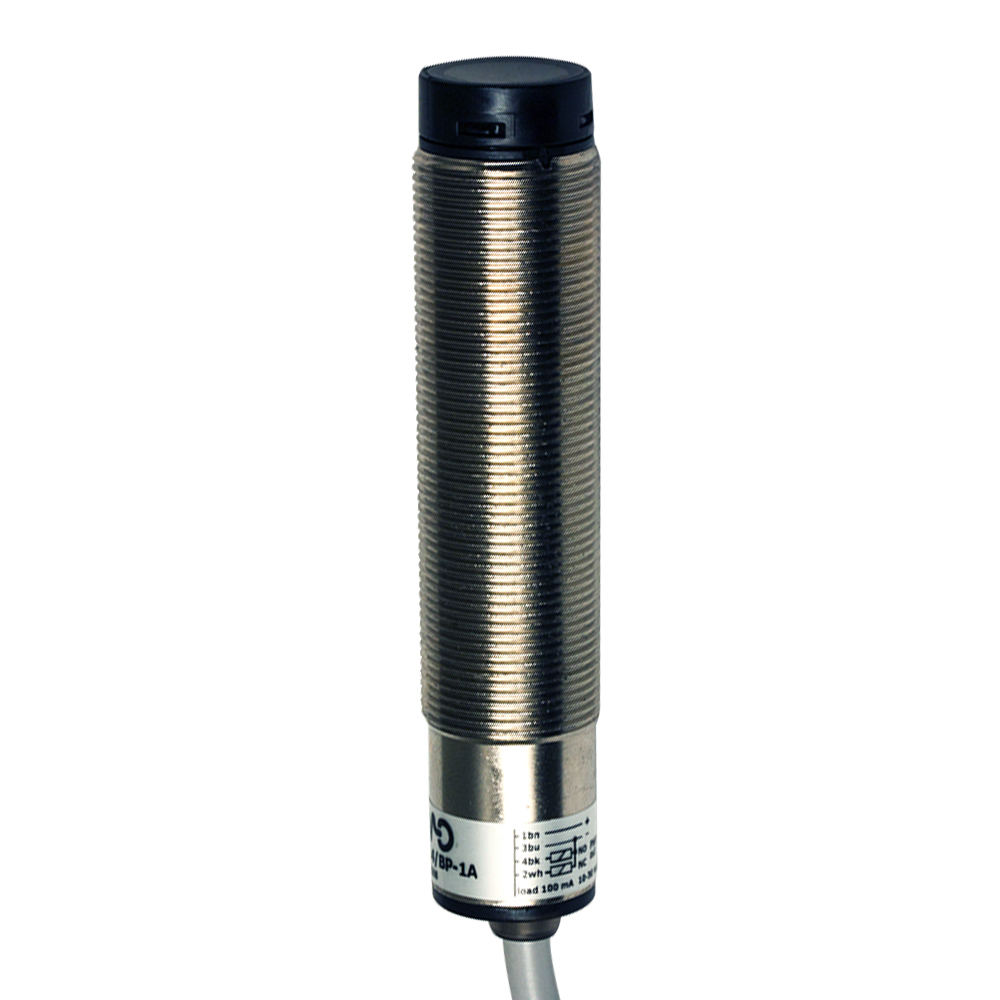

Photo.M18,Laser emiss.,Cable,Emitter
Photoelectric sensor M18 90° laser Emitt. 50 m Check plast. cable 2m axial

Article no.: FALH/X0-2A

Orderable item

Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Visible red laser emission models IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed

Technical Features

Detection properties

Nominal sensing distance	50m
Thermal drift of Sr	≤10% Sr
Repeat Accuracy	5%

Application

Function Principle	Emitter with check
Emitter/Receiver	Emitter
Check Input	BK/2 connected to 0Vdc swithing off the emission
Optic position	Radial 90°

Outputs

Output type

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 25mA
Max ripple content	≤10%
LED indicators	Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF)
Time delay before availability	≤200ms
Reverse Polarity Protection	Polarity inversal, Inpulsive voltage
Emission	LASER Red (650nm) class1

Mechanical data

Dimensions	M18 x 1/L=93,5mm
Weight	50g
Housing Material	PBT/ PC cable exit
Connections	2m PVC cable
Active Head Material	Glass / PC
Tightening torque	1Nm
Operating temperature	- 15°C…+ 55° C (Without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE cULus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M18 x 1

Generical Data

Dimensions	M18 x 1/L=93,5mm
Operating Temperature	- 15°C...+ 55°C (Without freeze)
Mechanical Protection	IP67
