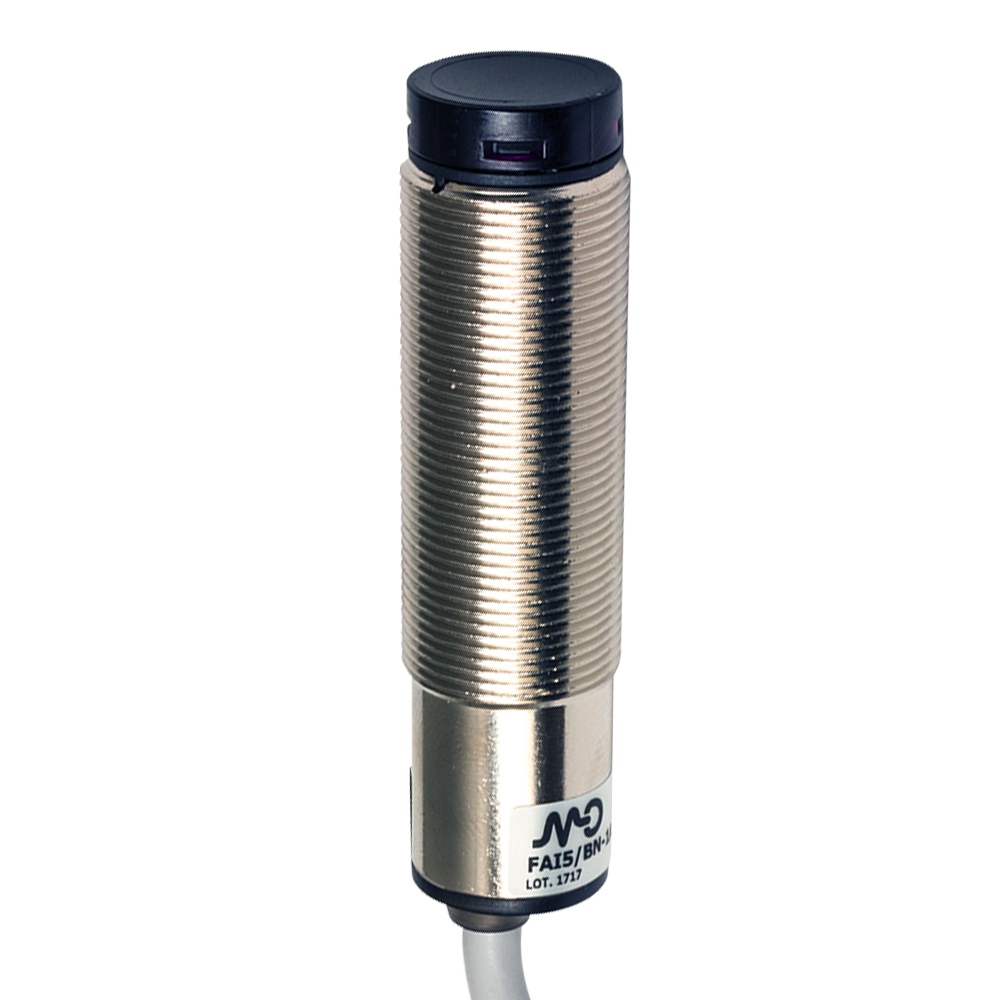

Photo.M18,PNP-NO+NC,Cabl,Reflx

Photo.M18,PNP-NO+NC,Cable,Reflex
Photoelectric sensor M18 Axial Retroreflective 5 m PNP NO+NC metal. cable 5m

Article no.: FAIC/BP-1A86
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 5m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment No
    Application
    Function Principle Retroreflective
    Notes On RL110 reflector
    Optic position Axial
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 250Hz
    Response time 2ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (Lon) or output status Lo/Do
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LED Infrared (880nm)
    Interference to external light 5000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Housing Material Nickel plated brass / PC cable exit
    Connections 5m PVC cable
    Active Head Material PC
    Tightening torque 25Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M18 x 1
    Generical Data
    Dimensions M18 x 1/L=67,5mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
