Photo.M18,NPN-NO+NC,Cable,Diff
Photo.M18,NPN-NO+NC,Cable,Diffuse

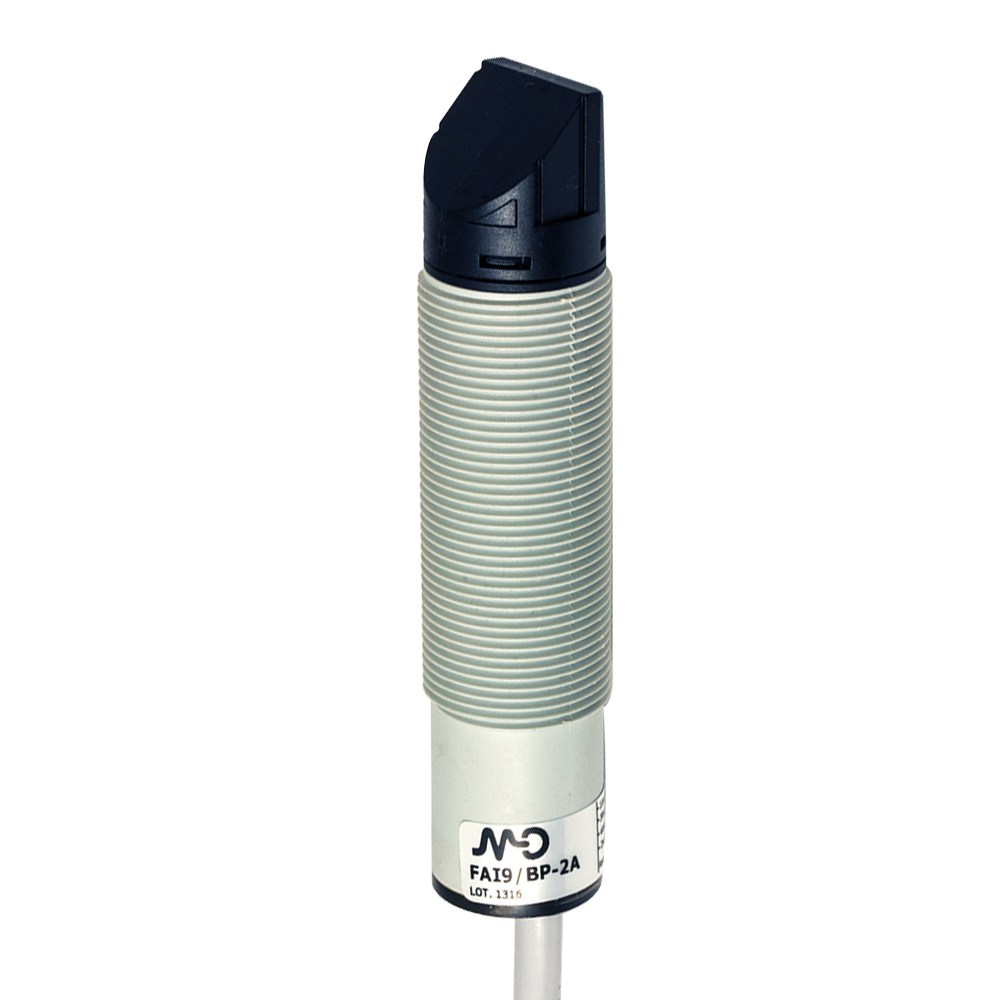

Photoelectric sensor M18 90° Diffuse 400 mm NPN NO+NC plast. cable 2m axial
Orderable item
-
Description
Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Retro-reflective models for transparent objects detection, with red emission IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed
Technical Features
Detection propertiesNominal sensing distance 400mm Thermal drift of Sr ≤10% Sr Repeat Accuracy 5% Sensitivity adjustment No ApplicationFunction Principle Diffuse reflection (medium distance, ≤600mm) Notes white target Kodak 90% 200 x 200mm Optic position Radial 90° OutputsOutput type NPN NO+NC Output Function NO+NC Switching frequency 250Hz Response time 2ms Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 30mA Load current ≤100mA Leakage current ≤10μA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (Lon) or output status Lo/Do Time delay before availability ≤200ms Short-circuit protection Short circuit (autoreset), Overvoltage Reverse Polarity Protection Polarity inversal, Inpulsive voltage Emission LED Infrared (880nm) Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight) Mechanical dataDimensions M18 x 1/L=78,5mm Weight 50g Housing Material PBT/ PC cable exit Connections 2m PVC cable Active Head Material PC Tightening torque 1Nm Operating temperature - 25°C…+ 70° C (Without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1 Generical DataDimensions M18 x 1/L=78,5mm Operating Temperature - 25°C…+ 70°C (Without freeze) Mechanical Protection IP67
