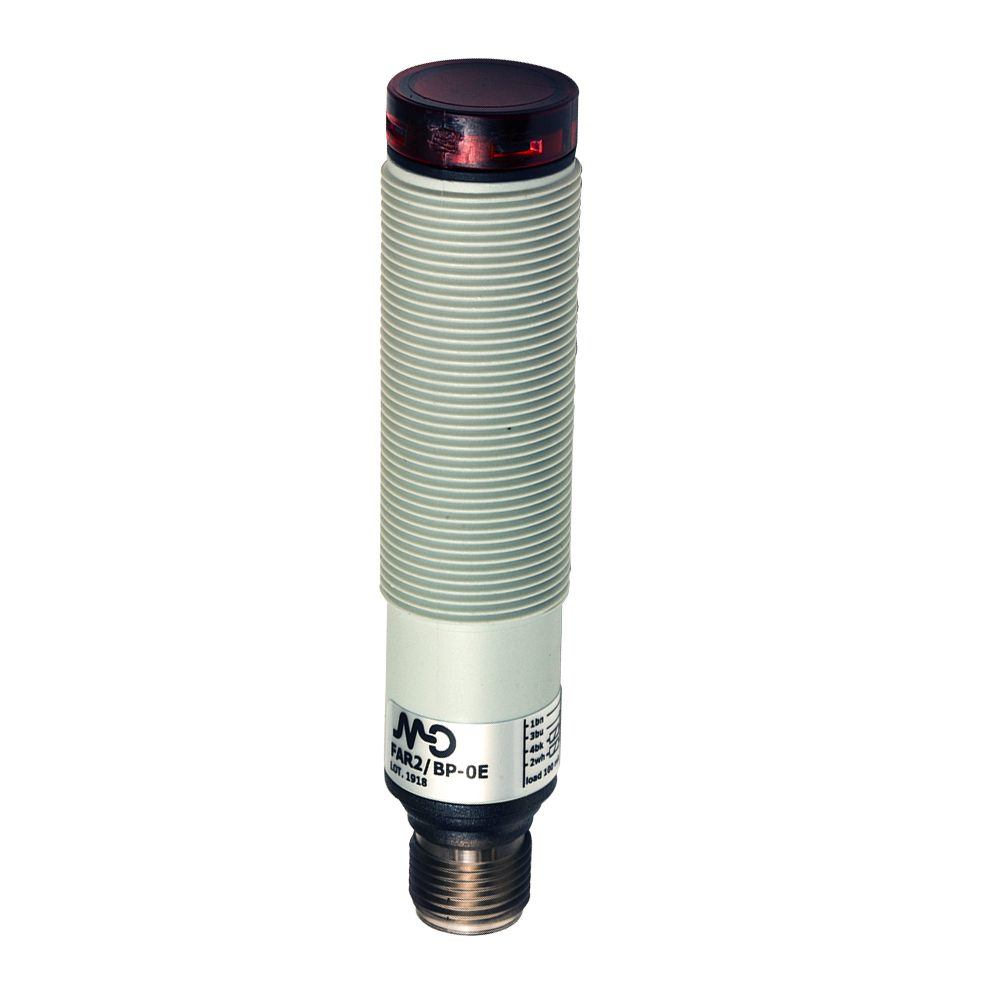

Ph.M18,PNP-NO+NC,M12,Rec,ATEX

Photo.M18,PNP-NO+NC,M12 plug,Receiver
Photoelectric sensor M18 Receiver 20 m PNP NO+NC plast. Conn. M12 II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C

Article no.: FAIZ/BP-0EAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 20m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment No
    Application
    Function Principle Receiver
    Emitter/Receiver Receiver
    Optic position Axial
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 250Hz
    Response time 2ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 25mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (Lon) or output status Lo/Do
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LED Infrared (880nm)
    Interference to external light 5000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Housing Material PBT / PC plug
    Connections M12 plug
    Active Head Material PC
    Tightening torque 1Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M18 x 1
    Generical Data
    Dimensions M18 x 1 /L =81,6mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
