Ph.M18,PNP-NO+NC,M12Plug,BGS

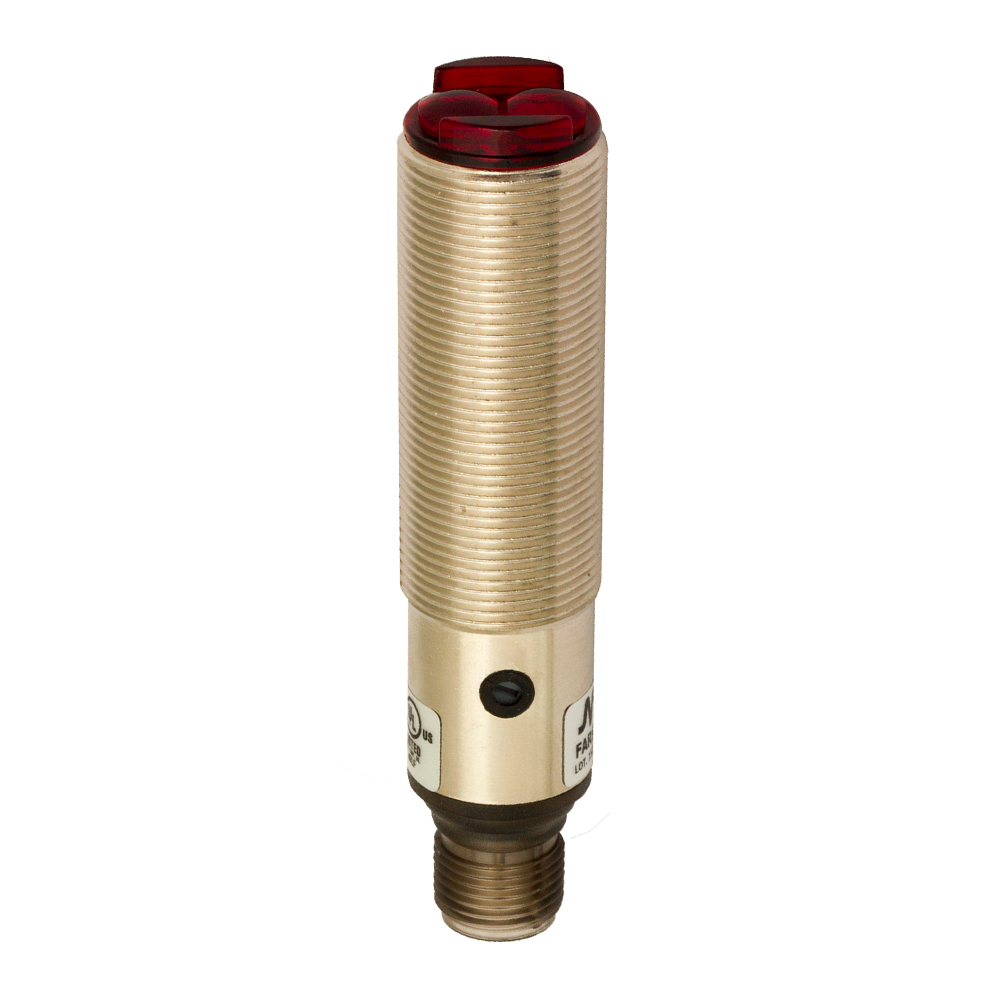

Photo.M18,PNP-NO+NC,M12 plug,BGS
Photoelectric sensor M18 Axial Background Suppression 60-100 mm adj. PNP NO+NC metal. Conn. M12 antireflex

Article no.: FARS/BP-1E7712
Orderable item
Register
  • Description
    Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Retro-reflective models for transparent objects detection, with red emission IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed

    Technical Features

    Detection properties
    Nominal sensing distance 100mm
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Minimum sensing distance (blind zone) 60mm
    Application
    Function Principle Blackground suppression
    Notes white target Kodak 90% 100 x 100mm
    Optic position Axial
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 1Khz
    Response time 500µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 25mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (Lon) or output status Lo/Do
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LED Red (660nm)
    Interference to external light 5000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Dimensions M18 x 1 /L =79,4mm
    Weight 100g
    Housing Material Nickel plated brass / PC plug
    Connections M12 plug
    Active Head Material PMMA
    Tightening torque 25Nm
    Operating temperature - 25°C…+ 70° C (Without freeze)
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories nuts M18 x 1, screwdriver
    Generical Data
    Dimensions M18 x 1 /L =79,4mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
