Ph.M18,PNP-NO+NC,M12,Diff,ATEX

Photo.M18,PNP-NO+NC,M12 plug,Diffuse

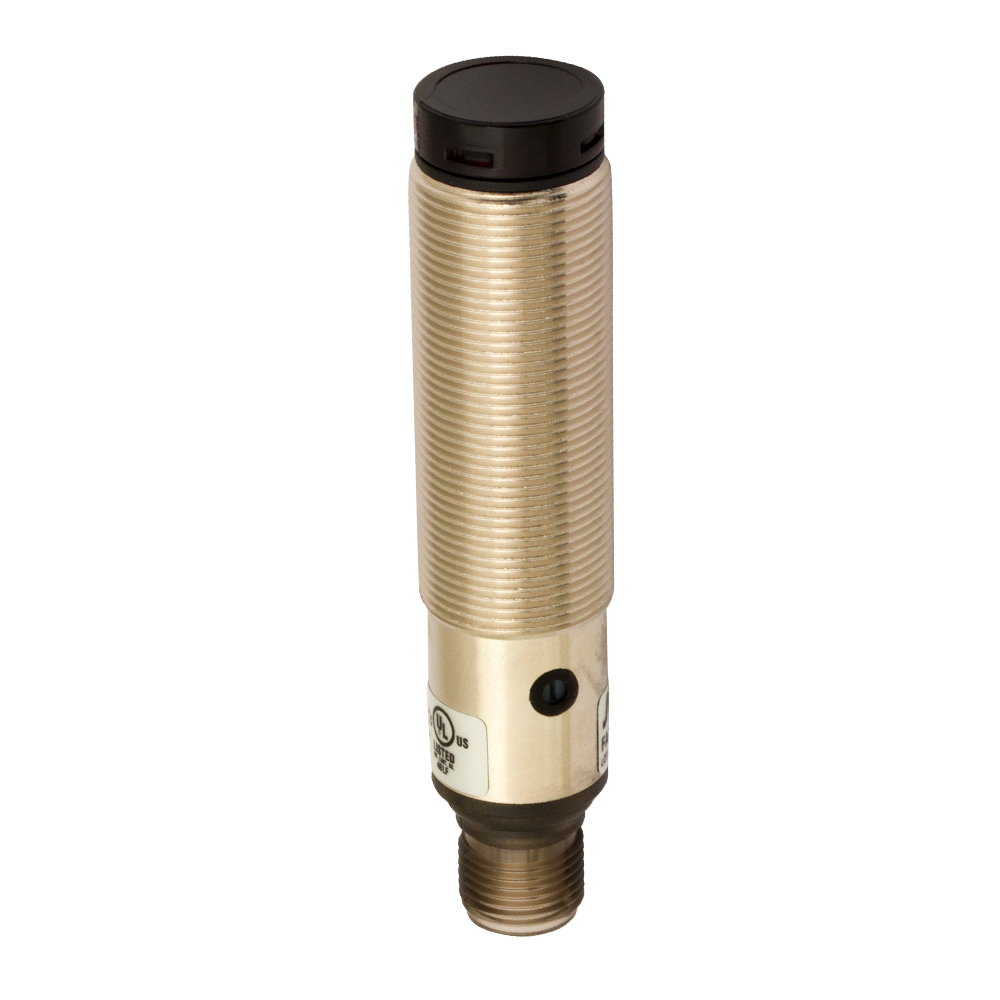

Photoelectric sensor M18 Diffuse 400 mm adj. PNP NO+NC conn. M12 II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C

Article no.: FAI7/BP-1EAN
Orderable item
Register
  • Description
    Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Retro-reflective models for transparent objects detection, with red emission IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed

    Technical Features

    Detection properties
    Nominal sensing distance 400mm
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Diffuse reflection (medium distance, ≤600mm)
    Notes white target Kodak 90% 200 x 200mm
    Optic position Axial
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 250Hz
    Response time 2ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (Lon) or output status Lo/Do
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LED Infrared (880nm)
    Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Dimensions M18 x 1 /L =81,6mm
    Weight 100g
    Housing Material Nickel plated brass / PC plug
    Connections M12 plug
    Active Head Material PC
    Tightening torque 25Nm
    Operating temperature - 25°C…+ 70° C (Without freeze)
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories nuts M18 x 1, screwdriver
    Generical Data
    Dimensions M18 x 1 /L =81,6mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
