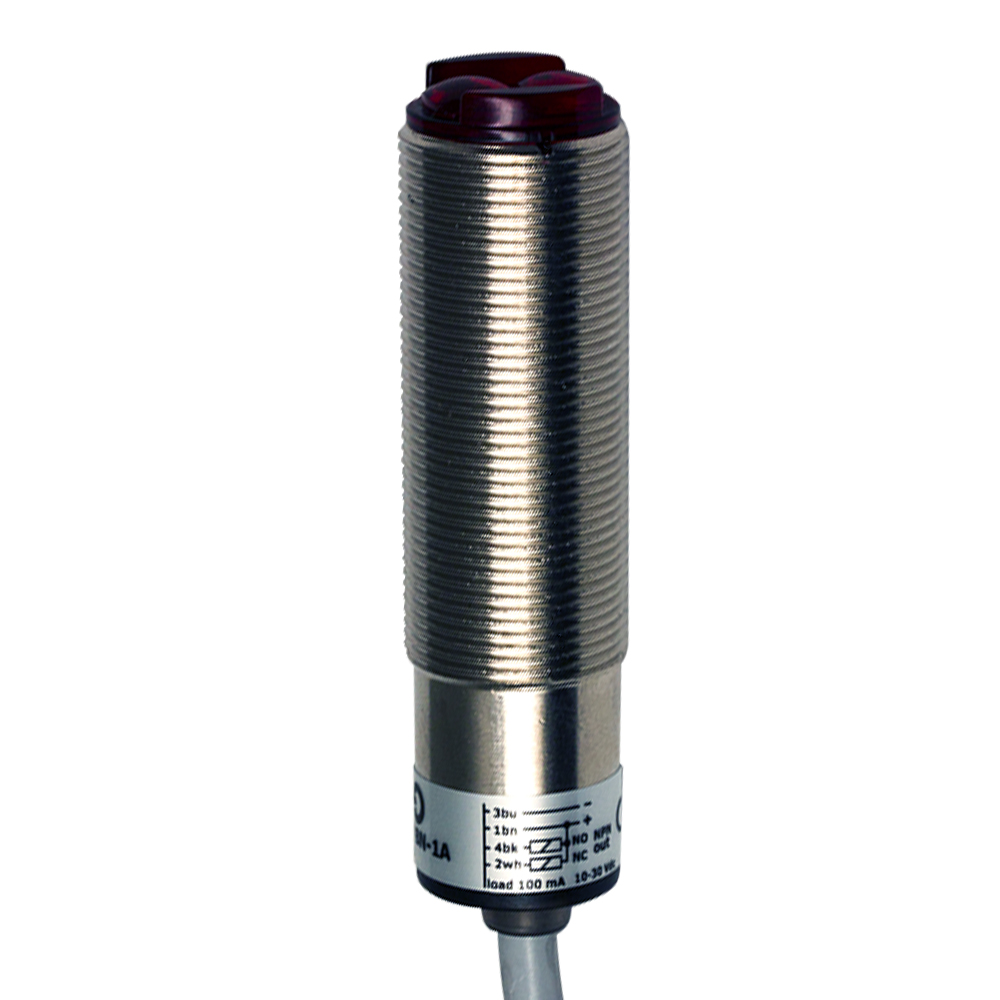

Ph.M18,NPN-NO+NC,Cabl,BGS,ATEX

Photo.M18,NPN-NO+NC,Cable,BGS
Photoelectric sensor M18 Axial Background Suppression 30-130 mm adj. NPN NO+NC metal. cable 2m axial II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C

Article no.: FARS/BN-1AAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 130mm
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Minimum sensing distance (blind zone) 30mm
    Application
    Function Principle Blackground suppression
    Notes white target Kodak 90% 100 x 100mm
    Optic position Axial
    Outputs
    Output type NPN NO+NC
    Output Function NO+NC
    Switching frequency 1Khz
    Response time 500µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 25mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (Lon) or output status Lo/Do
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LED Red (660nm)
    Interference to external light 5000lux (incandescent lamp), 10000lux (sunlight)
    Mechanical data
    Housing Material Nickel plated brass / PC cable exit
    Connections 2m PVC cable
    Active Head Material PMMA
    Tightening torque 25Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M18 x 1, screwdriver
    Generical Data
    Dimensions M18 x 1/L=65,5mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
