Ph.M18,IR emiss.,M12,Emitter

Name: Ph.M18,IR emiss.,M12,Emitter
SKU: FAIH/X0-1E
Availability: BackOrder

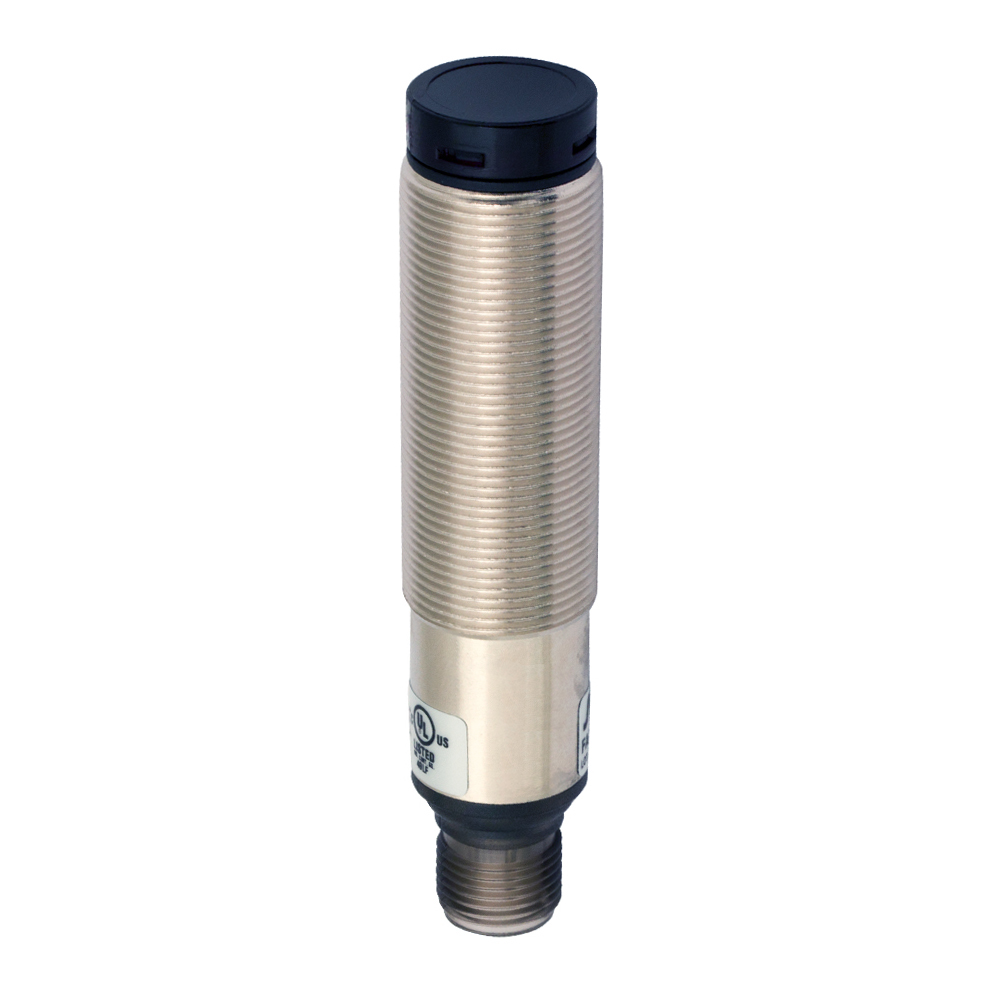

Photo.M18,IR emiss.,M12 plug,Emitter
Photoelectric sensor M18 Axial Emitt. 20 m Check metal. conn. M12

Article no.: FAIH/X0-1E

Orderable item

Overview Complete range of M18 sensors with 10...30 Vdc power supply Axial and radial optic with flat surface Retro-reflective models for transparent objects detection, with red emission IP67 protection degree Metallic or plastic housing Sensitivity adjustment available for all models Total protection against any type of electric damages Approvals: CE and cULus listed

Technical Features

Detection properties

Nominal sensing distance	20m
Thermal drift of Sr	≤10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	No

Application

Function Principle	Emitter with check
Emitter/Receiver	Emitter
Check Input	BK/2 connected to 0Vdc swithing off the emission
Optic position	Axial

Outputs

Output type
Switching frequency	250Hz
Response time	2ms

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 25mA
Max ripple content	≤10%
LED indicators	Yellow (powerON)
Time delay before availability	≤200ms
Reverse Polarity Protection	Polarity inversal, Inpulsive voltage
Emission	LED Infrared (880nm)

Mechanical data

Dimensions	M18 x 1 /L =81,6mm
Weight	100g
Housing Material	Nickel plated brass / PC plug
Connections	M12 plug
Active Head Material	PC
Tightening torque	25Nm
Operating temperature	- 25°C…+ 70° C (Without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE cULus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M18 x 1

Generical Data

Dimensions	M18 x 1 /L =81,6mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
