Ph.M18,IR emiss.,Cabl,Emit,ATX

Photo.M18,IR emiss.,Cable,Emitter

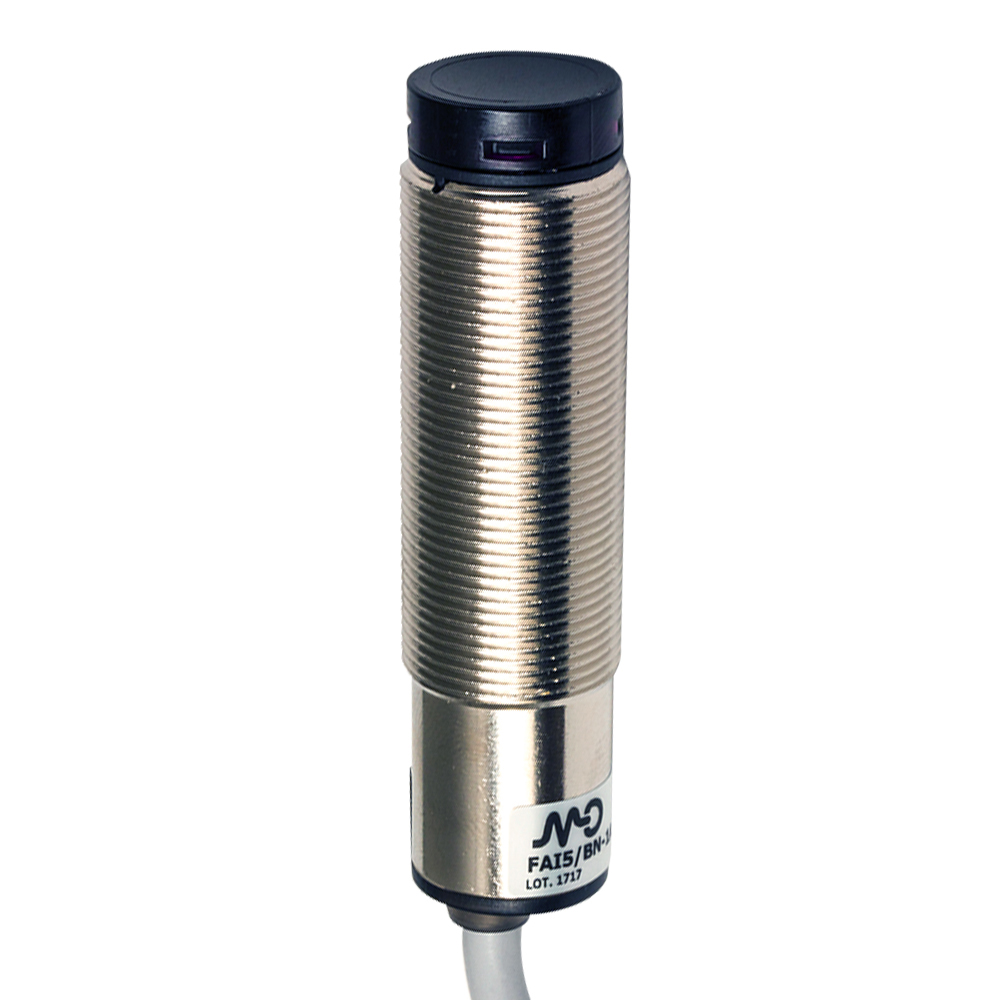

Photoelectric sensor M18 Emitt. 20 mmetal. cable 2m II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C

Article no.: FAIH/00-1AAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 20m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment No
    Application
    Function Principle Emitter
    Emitter/Receiver Emitter
    Optic position Axial
    Outputs
    Output type
    Switching frequency 250Hz
    Response time 2ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 25mA
    Max ripple content ≤10%
    LED indicators Yellow (powerON)
    Time delay before availability ≤200ms
    Reverse Polarity Protection Polarity inversal, Inpulsive voltage
    Emission LED Infrared (880nm)
    Mechanical data
    Housing Material Nickel plated brass / PC cable exit
    Connections 2m PVC cable
    Active Head Material PC
    Tightening torque 25Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M18 x 1
    Generical Data
    Dimensions M18 x 1/L=67,5mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
