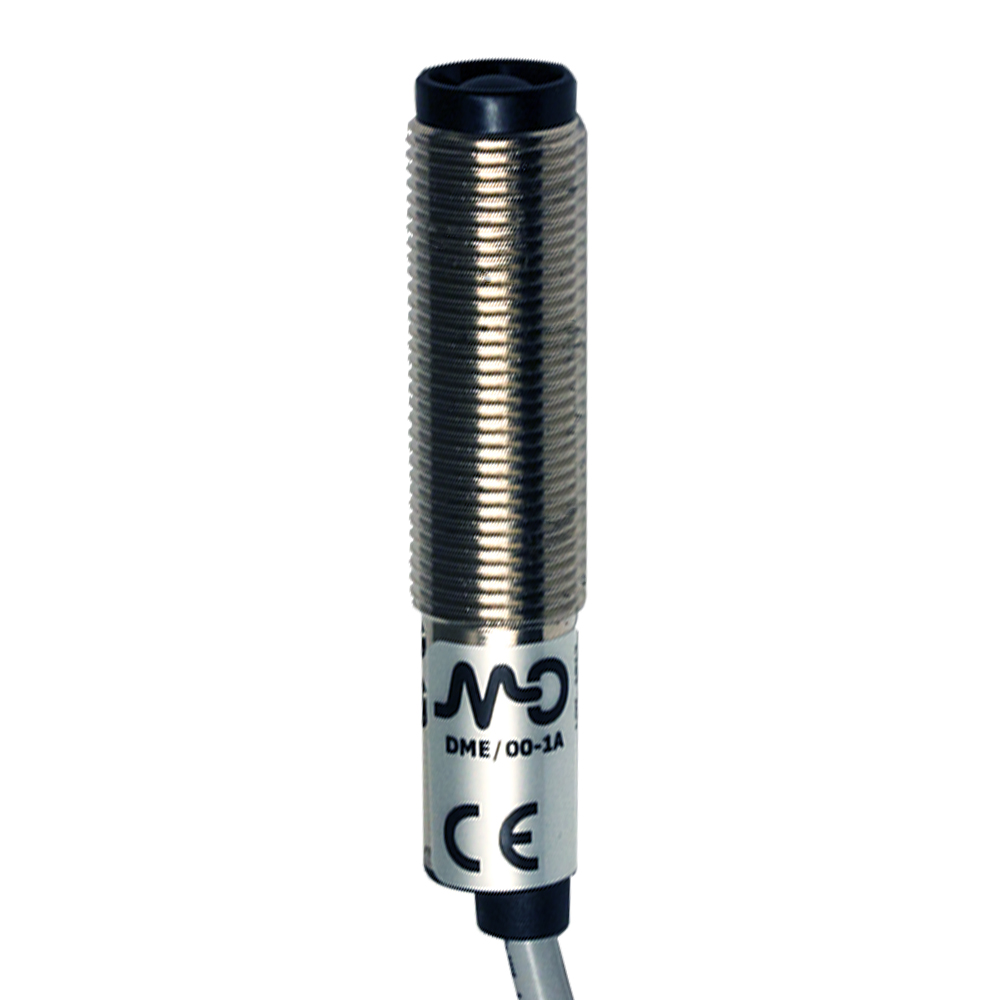

Photo.M12,IR emiss.,Cabl,Emitt

Name: Photo.M12,IR emiss.,Cabl,Emitt
SKU: DME/00-1A
Availability: BackOrder

Photo.M12,IR emiss.,Cable,Emitter
Photoelectric sensor M12 4 m Emitt. with adj. without check cable 2m axial

Article no.: DME/00-1A

Orderable item

Overview Models diffuse reflection, polarized and through-beam Local and remote teach-in function Light-on / Dark-on selectable outputs IP67 protection degree Multifunction LED status indicator Complete protection against electrical damages Approvals: CE and cULus listed

Technical Features

Detection properties

Nominal sensing distance	4m
Thermal drift of Sr	≤10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	Teach-in

Application

Function Principle	Emitter
Emitter/Receiver	Emitter
Optic position	Axial

Outputs

Output type

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 30mA
Load current
Leakage current
Output voltage drop
Max ripple content	≤10%
LED indicators	Yellow (Power ON)
Time delay before availability	≤150ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	LED Infrared (880nm)
Interference to external light
Impulsive Overvoltage Protection	Yes

Mechanical data

Dimensions	M12x1/L=54,5mm
Weight	60g
Housing Material	Nickel plated brass / PBT cable exit
Connections	2m PVC cable
Active Head Material	PMMA
Operating temperature	- 25°C…+ 70° C
Diameter/Dimension	M12

Test/Approvals

Approvals	CE cULus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M12 x 1

Generical Data

Dimensions	M12x1/L=54,5mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
