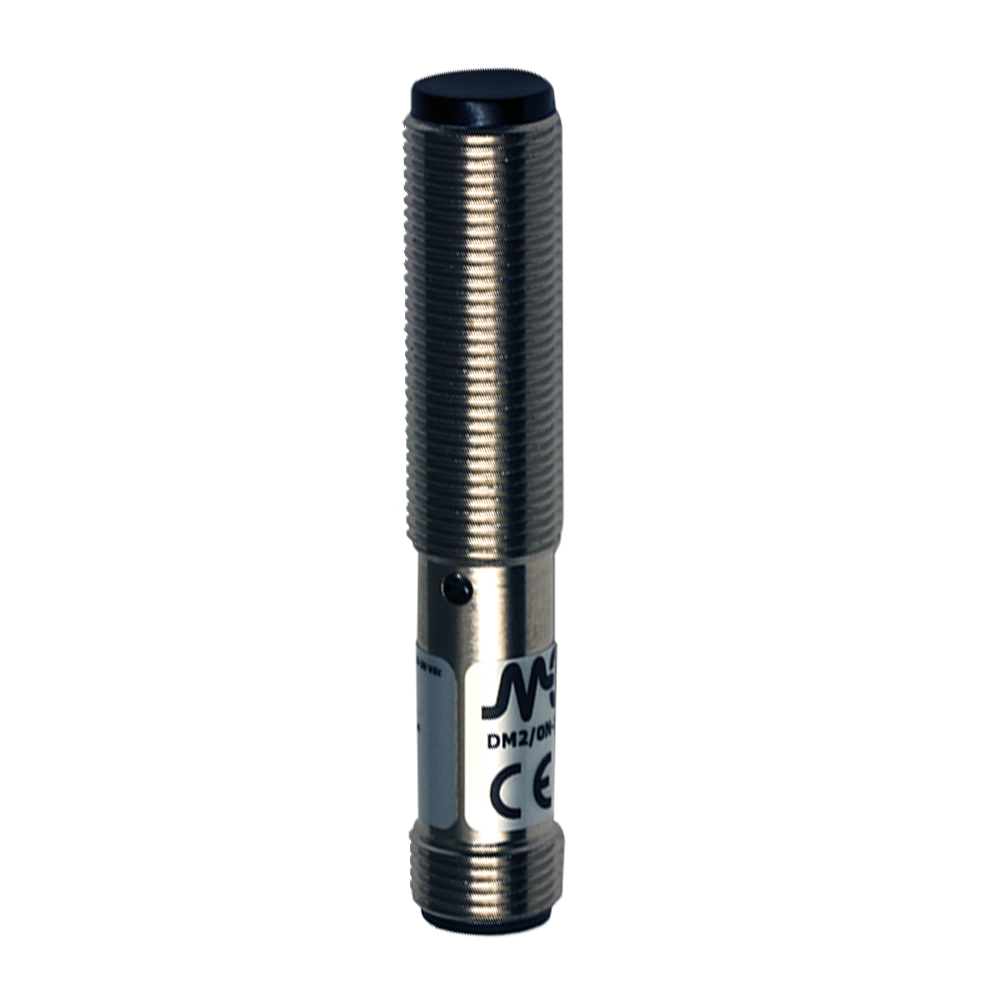

Ph.M12,PNP-NO/NC,M12,Receiver

Name: Ph.M12,PNP-NO/NC,M12,Receiver
SKU: DMR/0P-1H
Availability: BackOrder

Photo.M12,PNP-NO/NC,M12 plug,Receiver
Photoelectric sensor M12 4 m Receiver PNP L/D conn.M12

Article no.: DMR/0P-1H

Orderable item

Overview Models diffuse reflection, polarized and through-beam Local and remote teach-in function Light-on / Dark-on selectable outputs IP67 protection degree Multifunction LED status indicator Complete protection against electrical damages Approvals: CE and cULus listed

Technical Features

Detection properties

Nominal sensing distance	4m
Thermal drift of Sr	≤10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	No

Application

Function Principle	Receiver
Emitter/Receiver	Receiver
Optic position	Axial

Outputs

Output type	PNP L/D Selectable
Output Function	L/D Selectable
Switching frequency	250Hz
Response time	2ms

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 30mA
Load current	≤100mA
Leakage current	≤10μA
Output voltage drop	≤2V@Iload=100mA
Max ripple content	≤10%
LED indicators	Yellow (status output)
Time delay before availability	≤150ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	LED Infrared (880nm)
Interference to external light	3.000lux (incandescent lamp), 10.000lux (sunlight)
Impulsive Overvoltage Protection	Yes

Mechanical data

Dimensions	M12x1/L=65,5mm
Weight	28g
Housing Material	Nickel plated brass
Connections	M12 plug
Active Head Material	PMMA
Operating temperature	- 25°C…+ 70° C
Diameter/Dimension	M12

Test/Approvals

Approvals	CE cULus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M12 x 1

Generical Data

Dimensions	M12x1/L=65,5mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
