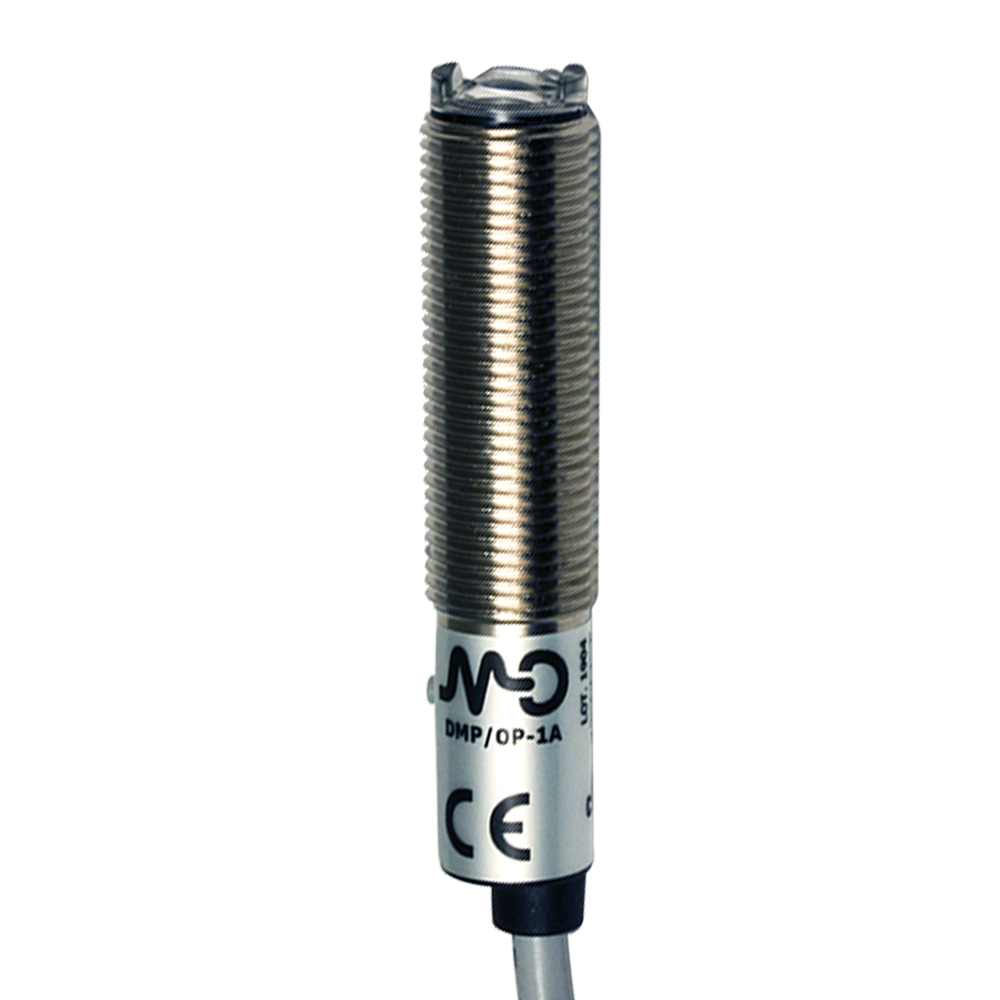

Ph.M12,PNP-NO/NC,Cabl,Refl,ATX

Photo.M12,PNP-NO/NC,Cable,Reflex
Photoelectric sensor M12 Polarized 2m PNP L/D cable 2m II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C

Article no.: DMP/0P-1AAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 2,5m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Teach-in
    Application
    Function Principle Polarized
    Notes On RL110 reflector
    Optic position Axial
    Outputs
    Output type PNP L/D Selectable
    Output Function L/D Selectable
    Switching frequency 400Hz
    Response time 1,25ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (status output)
    Time delay before availability ≤150ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Red (660nm)
    Interference to external light 3.000lux (incandescent lamp), 10.000lux (sunlight)
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Housing Material Nickel plated brass / PBT cable exit
    Connections 2m PVC cable
    Active Head Material PMMA
    Diameter/Dimension M12
    Test/Approvals
    Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M12 x 1
    Generical Data
    Dimensions M12x1/L=54,5mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
