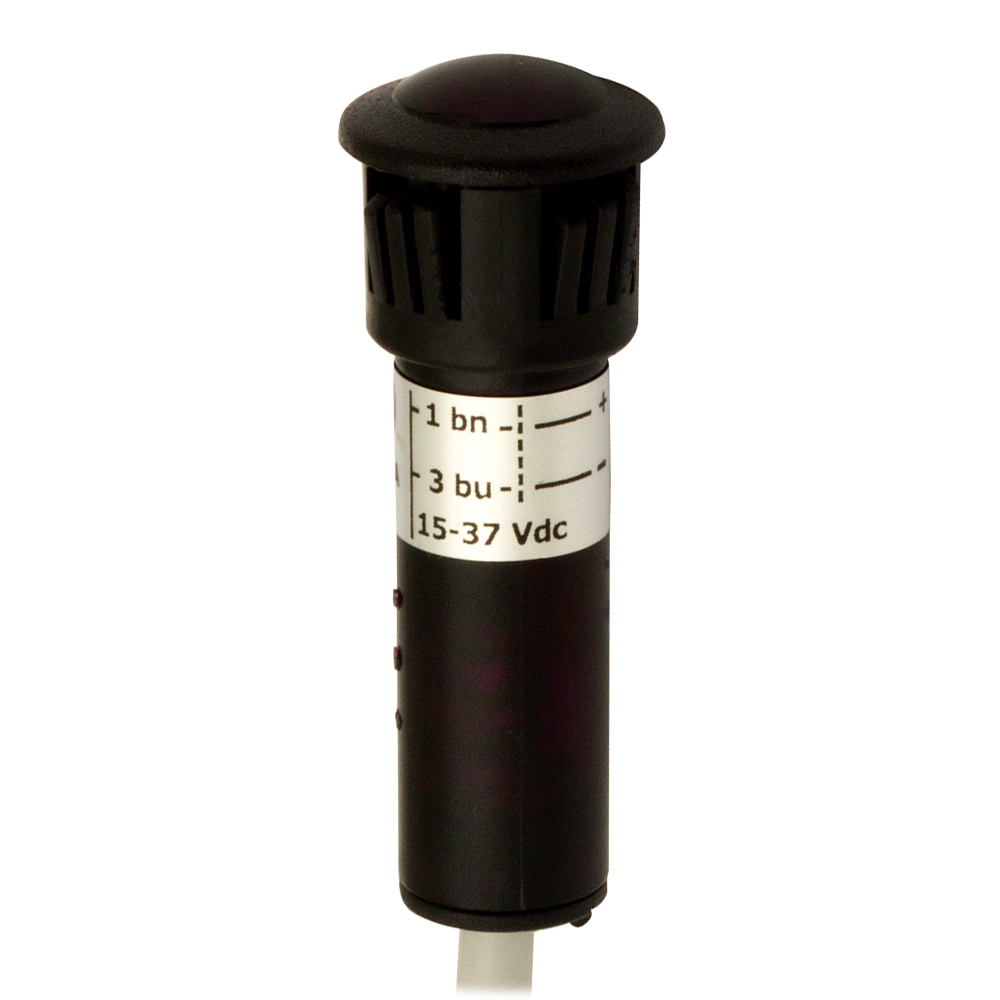

Photoelectric sensor Receiver PNP Don D10 mm clip cable 7 m

Article no.: DGR/DP-3D
Orderable item
Register
  • Description
    Overview Ø 10 mm plastic housing 41 mm length Ø 13 mm hole irreversibile spring latch fixing LED status indicator receiver only Complete protection against electrical damages IP67 protection degree Nominal sensing distance (Sn): 2 m ExG. = 4 Supply voltage 15...37 Vdc (10...30 Vdc for EA version) Approvals: CE

    Technical Features

    Detection properties
    Nominal sensing distance 2m
    Thermal drift of Sr ≤10%Sr
    Sensitivity adjustment No
    Application
    Function Principle Receiver
    Notes (EG=4)
    Emitter/Receiver Receiver
    Optic position Axial
    Outputs
    Output type PNP Don
    Output Function Don
    Switching frequency 40Hz
    Response time 1,25ms
    Electrical data
    Operating Voltage 15…37VDC
    No-Load supply current ≤ 10mA
    Load current ≤30mA
    Leakage current ≤10µA
    Output voltage drop ≤2V@Iload=30mA
    Max ripple content ≤10%
    LED indicators Yellow (Output status)
    Time delay before availability ≤ 100ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Interference to external light 20.000lux
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Dimensions M10x1/L=41mm
    Weight 210g
    Housing Material PC housing / POM fixing ring / ABS cable exit
    Connections 7m PVC cable
    Active Head Material PC
    Operating temperature - 25°C…+ 70° C (without freeze)
    Diameter/Dimension Ø 10mm
    Test/Approvals
    Approvals CE
    EMC compatibility EN 60947-5-3
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Generical Data
    Dimensions M10x1/L=41mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
