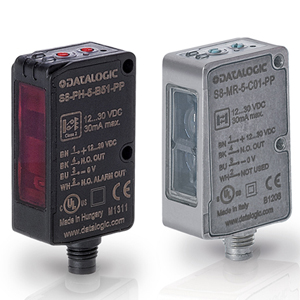

S8-PH-5-B53-OZ RRX P LASER COAX M8

S8-PH-5-B53-OZ
Photoelectric Sensor Cubic Compact Coaxial optics Retro Reflex polarized plastic radial npn/pnp with Teach-in IO-Link Laser emission M8

Article no.: 950800006
Orderable item
Register
  • Description
    Overview Compact dimensions (14x42x25 mm) Background suppression for transparent and shiny objects Contrast sensors up to 25 kHz switching frequency Extremely focused spot, under 1 mm (LASER model) Very high resolution LASER models INOX AISI 316L model Extended IO-Link parametrization with counter All output fully PNP/NPN/PP IO-Link configurable IO-link COM2 IO-Link dual channel with no jitter addition

    Technical Features

    Detection properties
    Nominal sensing distance 12m
    Sensitivity adjustment Teach-in
    Application
    Function Principle Polarized retroreflective
    Description Compact slim case
    Optic position Radial 90°
    Functions Polarized retroreflective
    Outputs
    Output type NPN / PNP IO Link
    Output Function IO Link
    Response time 0,5
    Electrical data
    Operating Voltage 12…30VDC
    No-Load supply current ≤ 40mA
    Output voltage drop ≤2V@Iload=100mA
    LED indicators Yellow (status output) or (output/alarm) Green (powerON)
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LASER Red
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 14x43x25
    Housing Material ABS(Housing), PMMA (Optics)
    Connections M8 plug 4pin
    Active Head Material PMMA
    Storage temperature - 25°C…+70°C
    Material Plastic - ABS / PMMA
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 14x43x25
    Operating Temperature - 25°C…+ 55°C (Without freeze)
    Mechanical Protection IP67
