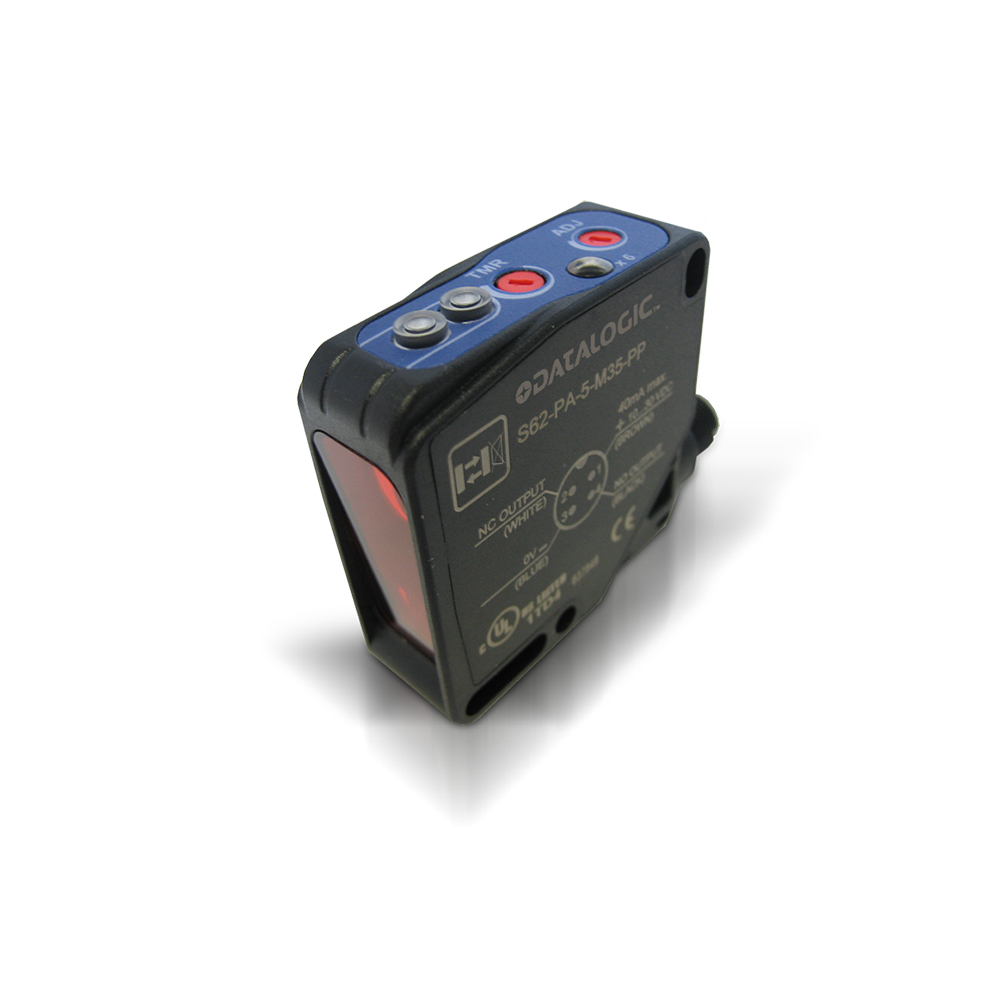

S62-PL-5-M11-PP BGS LASER 35cm PNP M12

S62-PL-5-M11-PP
Photoelectric Sensor Cubic 50x50 Red Laser emission multi turn trimmer adjustment Background Suppressor plastc axial laser pnp no/nc - M12

Article no.: 956211150
Orderable item
Register
  • Description
    Overview Sensors with red, infrared LED or LASER emission Background suppression from 3 cm to 2 m Polarized retroreflective up to 20 m Multivoltage 24-240Vac/24-60Vdc with Relay output NPN/PNP output NO-NC configuration

    Technical Features

    Detection properties
    Nominal sensing distance 350mm
    Sensitivity adjustment Trimmer
    Application
    Function Principle Blackground suppression
    Description Compact square case
    Optic position axial
    Functions Background suppression
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Response time 0,14
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Output voltage drop ≤2V@Iload=100mA
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LASER Red
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 18x50x50
    Housing Material ABS / PMMA
    Connections M12 plug
    Active Head Material PMMA
    Storage temperature - 25°C…+70°C
    Material
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 18x50x50
    Mechanical Protection IP67
