S6R-5-C200-P PROX DC M12 NO-NC

S6R-5-C200-P

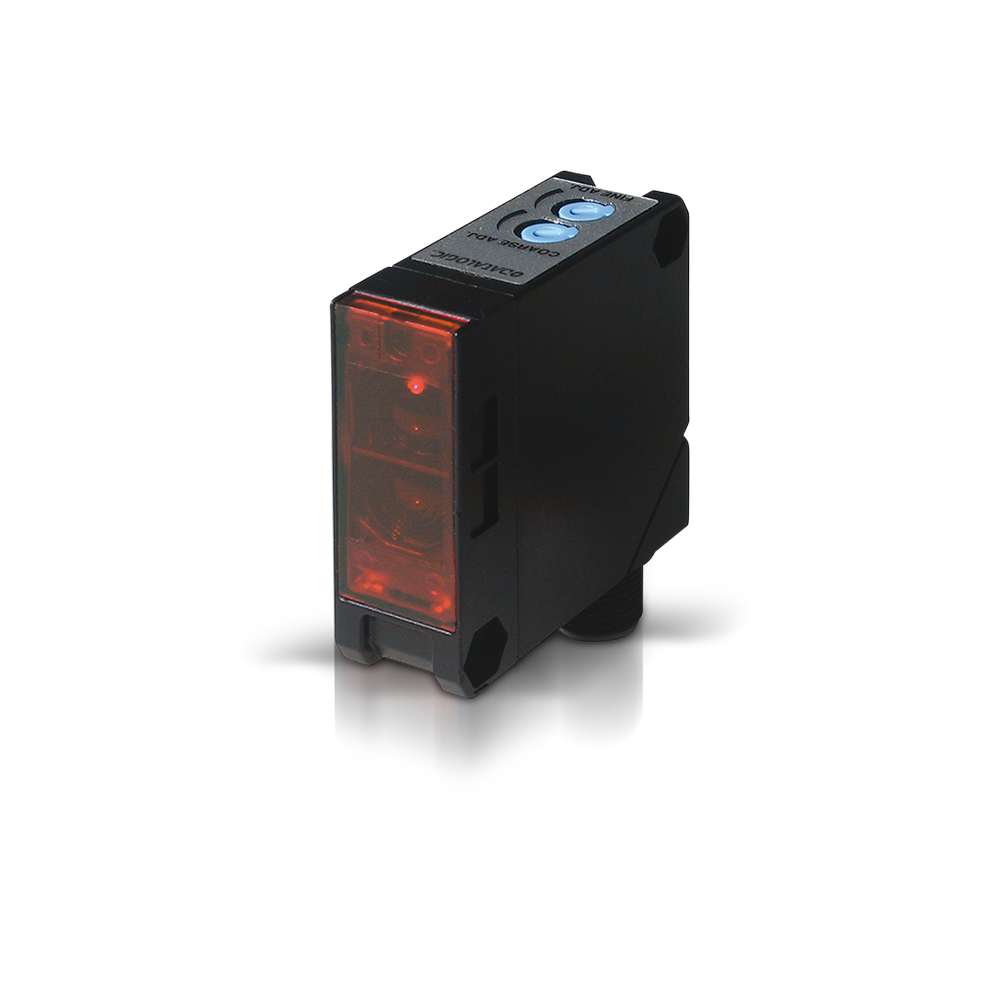

Photoelectric Sensor Cubic 50x50 Infrared LED emission trimmer adjustment adjustable support forM18 tubular sensors

Article no.: 950201200
In Stock
Register
  • Description
    Overview 50x50 mm compact dimensions Free voltage Vac/Vdc models with relay output 10-30 Vdc model with transistor output Standard cable or M12 4-pole connection

    Technical Features

    Detection properties
    Nominal sensing distance 2m
    Sensitivity adjustment Trimmer
    Application
    Function Principle Diffuse beam
    Description Compact square case
    Functions Diffuse beam
    Outputs
    Output type PNP - Light mode L/D selectable by cable/connector
    Output Function L/D selectable by cable/connector
    Switching frequency 500Hz
    Response time 1ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    LED indicators Red OUTPUT
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LED Infrared
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 18x50x50
    Housing Material ABS
    Connections M12 plug
    Active Head Material PMMA
    Storage temperature - 25°C…+70°C
    Material
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 18x50x50
    Operating Temperature - 25°C…+ 55°C (Without freeze)
    Mechanical Protection IP65
