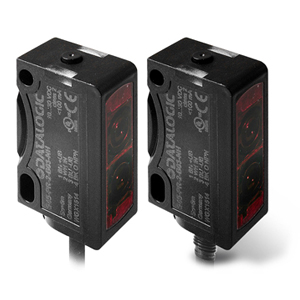

S45-PH-5-B03-PH

S45-PH-5-B03-PH
Photoelectric Sensor Miniature Red Laser emission Teach in Retro Reflex polarized plastic radial laser pnp ext teach - M8

Article no.: 950411140
In Stock
Register
  • Description
    Overview Red LED and Laser emissions Precise risk free laser class 1 emission Diffused LED proximity 800mm Background Suppression 400mm Retroreflective Class 1 Laser 15m/Red LED 7m Through beam Class 1 Laser 20m/Red LED 15m IP69K housing 2m Cable or metal M8 4 pole version PNP or NPN output with remote teach in input High speed RGB and white emission contrast sensor High precision distance sensor up to 200 mm

    Technical Features

    Detection properties
    Nominal sensing distance 15m
    Sensitivity adjustment Teach-in
    Application
    Function Principle Polarized retroreflective
    Description Miniature european style rear holes
    Optic position Radial 90°
    Functions Polarized retroreflective
    Outputs
    Output type PNP L/D selectable
    Output Function L/D selectable
    Response time 0,5
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Output voltage drop ≤2V@Iload=100mA
    LED indicators Green (PowerON) Yellow (status output)
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LASER Red (650nm)
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 12x34x20
    Housing Material ABS(Housing), PMMA (Optics)
    Connections M8 plug 4pin
    Active Head Material PMMA
    Storage temperature - 25°C…+70°C
    Material Plastic ABS / PMMA
    Diameter/Dimension cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 12x34x20
    Operating Temperature - 25°C…+ 55°C (Without freeze)
    Mechanical Protection IP67 & IP69K
