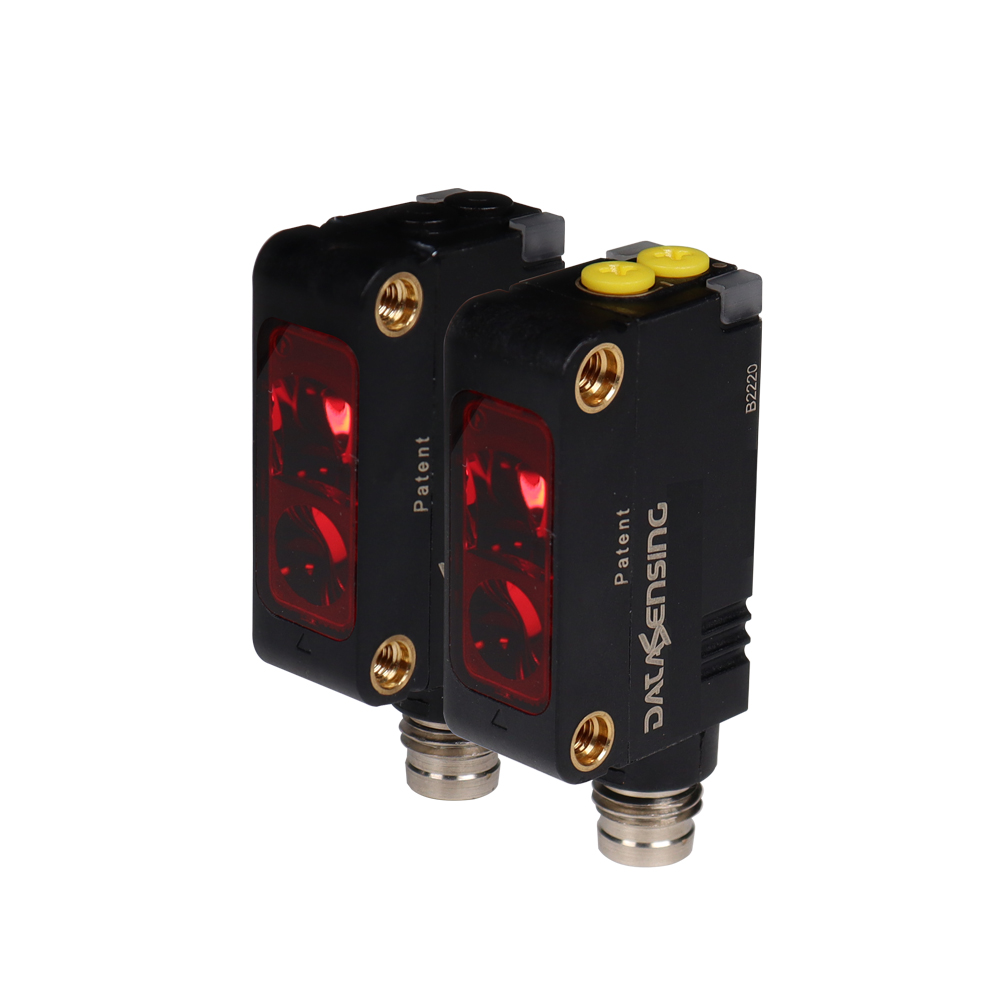

S3N-PH-5-FG01-P TXRX LASER PNP L/D M8
S3N-PH-5-FG01-P TXRX LASER PNP L/D M8
Photoelectric Miniature Red Laser emission Through Beam Transmitter andReceiver double trimmer Adj + L/D PNP Connector M8 4P
In Stock
-
Description
Overview All models with visible and bright red emission LED and Laser emission models Multiple Background suppression functions Shiny and clear object detection Single, Double trimmer & Push Button models Diffuse proximity up to 100 cm Background suppression up to 800 mm (LED trimmer version) Polarized RRX 7 m (Red LED emission) Polarized RRX 12 m (Red Laser emission) Through-beam 20 m and Laser 30 m Connection with 2 m Cable or M8 connector Rugged IP67 Plastic miniature case M3 threaded holes on the front side with metal inserts State of the art IO-Link connectivity with extended Smart Tasks
Technical Features
Detection propertiesNominal sensing distance 30m Sensitivity adjustment 1 turn trimmer Minimum sensing distance (blind zone) 0mm ApplicationFunction Principle Through beam emitter and receiver Notes (class 1 LASER) Optic position Radial 90° Functions Through beam emitter and receiver OutputsOutput type PNP L/D selectable by trimmer L/D Selectable Output Function L/D Selectable Switching frequency 2kHz Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 35mA Load current ≤100mA Leakage current ≤ 300 μA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators yellow OUTPUT LED, green POWER ON LED Short-circuit protection Yes Reverse Polarity Protection Yes Emission LASER Red (650nm) class1 Interference to external light according to EN 60947-5-2 : 2020 Impulsive Overvoltage Protection Yes Insulation resistance >20 MΩ 500 Vdc, between electronics and housing Contact resistance 500 Vac 1 min., between electronics and housing 0,1µF @Vmax - 1µF @Vmin Yes Mechanical dataHousing Material Plastic Polymer Fiber Glass reinforced Connections M8 plug 4pin Active Head Material PMMA Storage temperature - 25°C…+70°C Plug connector material Metal shaft material POM, PMMA Diameter/Dimension Cubic Test/ApprovalsApprovals CE cULus CDRH 1 EMC compatibility EN 60947-5-2 Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) Generical DataDimensions 11x31x19 mm Operating Temperature -25°C ... 55°C Mechanical Protection IP67 - Accessories
