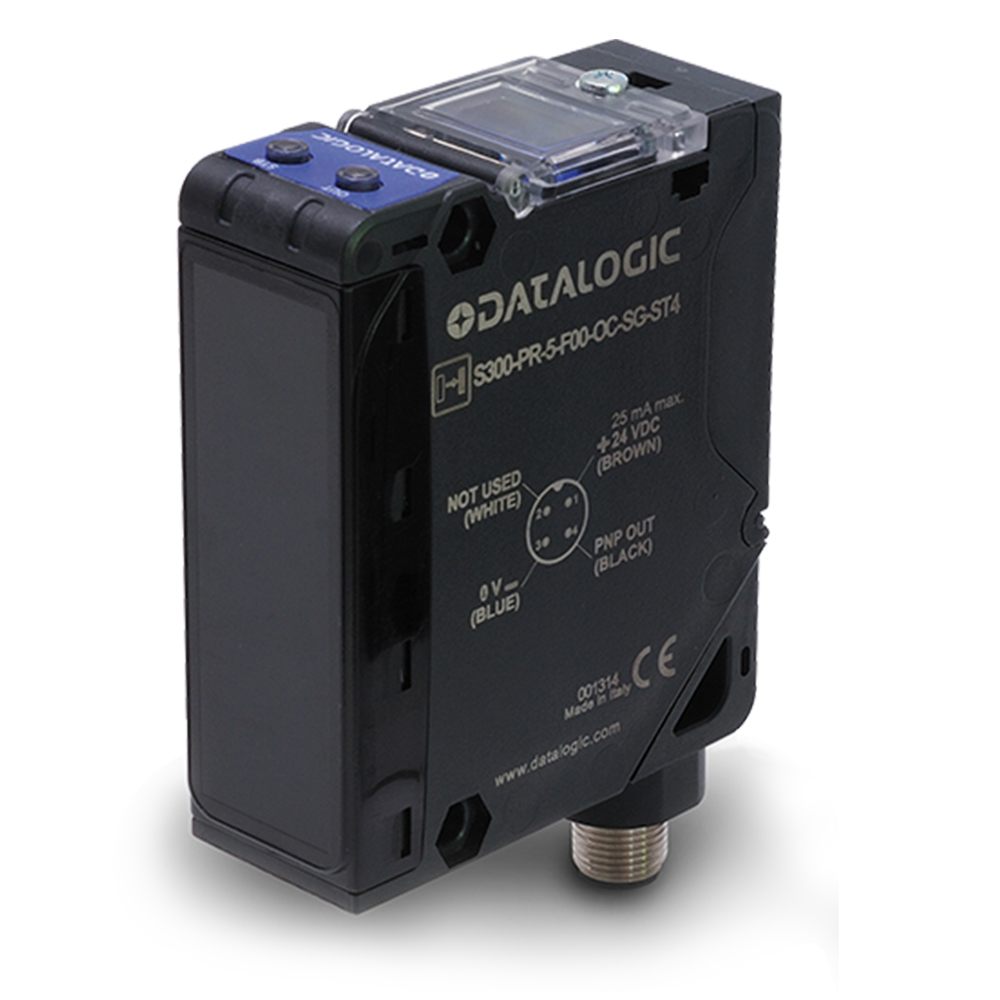

S300-PA-2-B01-OC POL 12-30VDC

S300-PA-2-B01-OC
Photoelectric Sensor Maxi Red LED emission Retro Reflex polarized plastic axial pnp/npn output - DC Terminal Block

Article no.: 951451540
In Stock
Register
  • Description
    Overview Industrial plastic housing with IP67 mechanical protectionTiming function from 0.6-16 s ON delay, OFF delay and ONE SHOTTerminal block for both Vdc and Vac/ Vdc free voltageDistance trimmer for mechanical background suppression models

    Technical Features

    Detection properties
    Nominal sensing distance 10m
    Sensitivity adjustment Trimmer
    Application
    Function Principle Polarized retroreflective
    Description Large case horizontal mount
    Optic position axial
    Functions Polarized retroreflective
    Outputs
    Output type NPN/PNP - Dark/Light sel.
    Switching frequency 500Hz
    Response time 1
    Electrical data
    Operating Voltage 12…30VDC
    No-Load supply current ≤ 35mA
    Load current ≤100mA
    Output voltage drop ≤ 2,4V
    LED indicators Yellow (output state) Green (stability)
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LED Red (660nm)
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 25x70x100
    Housing Material PBT Fiber Glass reinforced
    Connections Terminal block
    Active Head Material PMMA
    Storage temperature - 40°C…+70°C
    Material Plastic - PBT / PC
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 25x70x100
    Operating Temperature - 40°C…+ 55°C
    Mechanical Protection IP67
