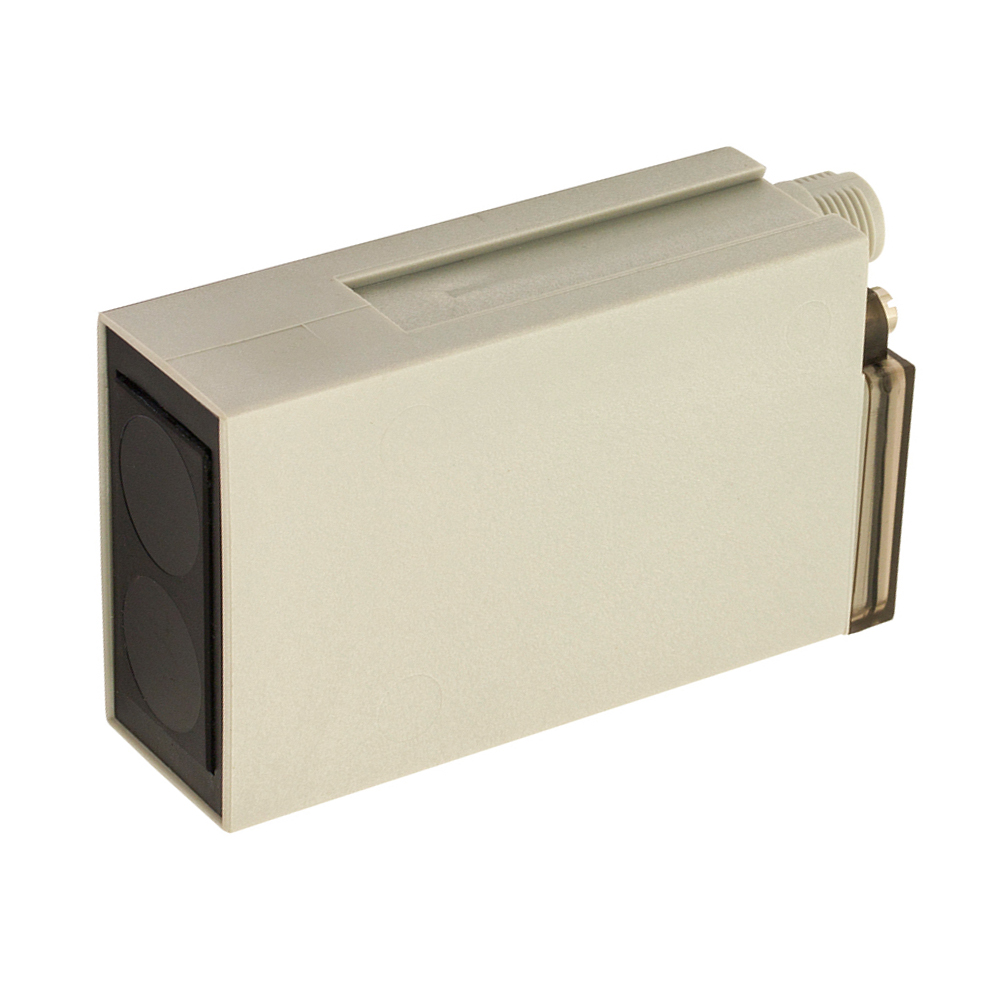

Maxi,NPN/PNP-NO/NC,M12,Reflex

Photo.Maxi,NPN/PNP-NO/NC,M12 plug,Reflex
Photoelectric sensor maxi Retroreflective 12 m 10...30Vdc NPN/PNP NO/NC without fixing slide conn. M12

Article no.: RXC/00-1A
Orderable item
Register
  • Description
    Overview Models: diffuse reflection, retro-reflective, polarized, through-beam and background suppression Series with high performances and wide possibilities of installation High sensing distance and very small dimensions Relay output or multifunctional DECOUT® Timer function delay on, delay off, one shot; trimmer for sensitivity adjustment Switch reducing the emission for fine detection in through-beam types LED alignment indicator with 360° visibility, 2 LED indicators (stable signal, output) M12 standard plug cable exit; axial and right angle brackets

    Technical Features

    Detection properties
    Nominal sensing distance 12m
    Thermal drift of Sr 10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Retro reflective
    Notes On RL110 reflector
    Optic position Axial
    Outputs
    Output type Decout NPN/PNP Selectable Decout NO/NC Selectable
    Output Function Decout NO/NC Selectable
    Switching frequency 500Hz
    Response time 1ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 25mA
    Load current ≤100mA
    Leakage current ≤ 10μA
    Output voltage drop ≤1,2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Red (output status) o (alineament), Green (stability)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Infrared (880nm)
    Interference to external light ≥ 10000lux (incandescent lamp)
    Mechanical data
    Dimensions 26x86,6x50
    Weight 75g
    Housing Material PC
    Connections M12 plug
    Active Head Material PMMA
    Operating temperature - 25°C…+ 70°C ( without freeze)
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
    Degree of protection IP65
    Accessories
    Supplied Accessories ST80 mounting bracket and screws
    Generical Data
    Dimensions 26x86,6x50
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP65
