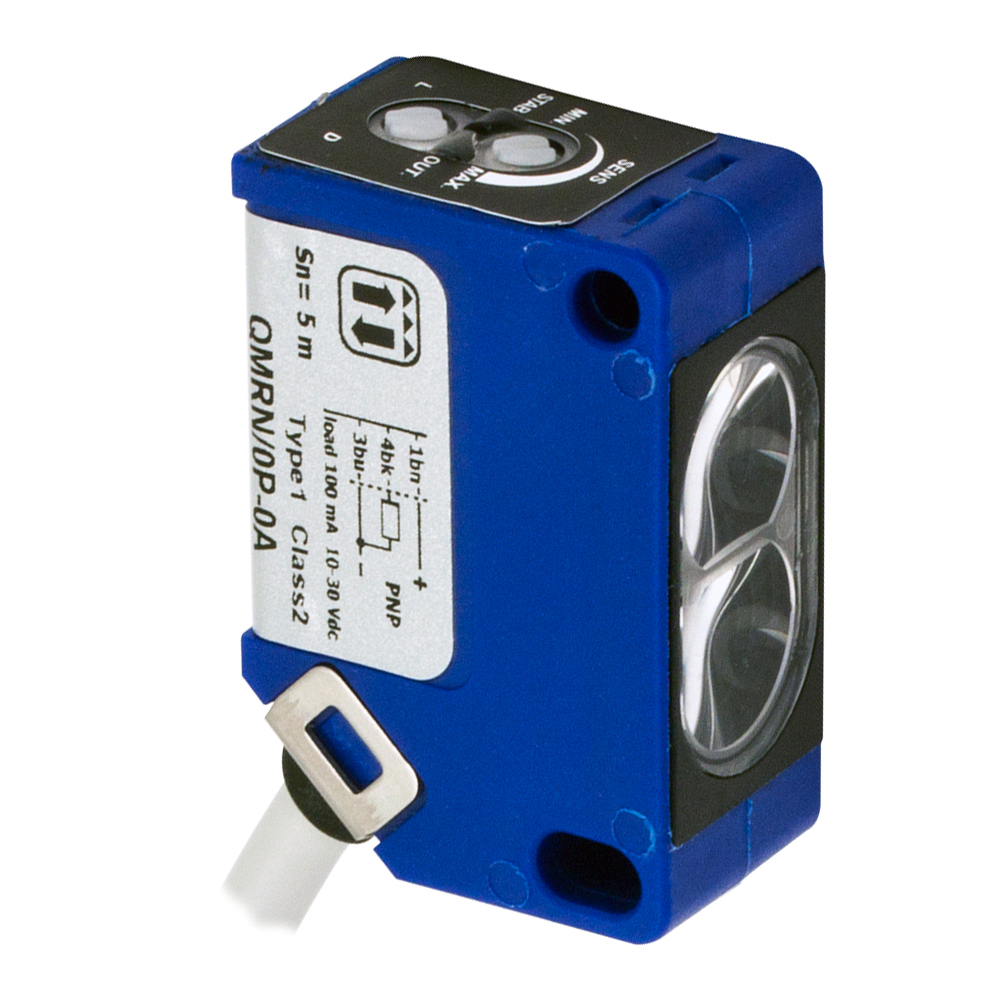

Mini,PNP-NO/NC,PigtailM12,Refl

Photo.Mini,PNP-NO/NC,Pigtail M12,Reflex
Photoelectric sensor Miniature cubic photoelectric Polarized adj. 5 m PNP L/D cable 200 mm with plug M12

Article no.: QMRN/0P-0AVE80
In Stock
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 5m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Polarized
    Notes On RL110 reflector
    Optic position Radial 90°
    Outputs
    Output type PNP L/D Selectable
    Output Function L/D Selectable
    Switching frequency 2kHz
    Response time 250µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (status output), green (stability)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Red (630nm)
    Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Housing Material PA66
    Connections 200mm PVC cable + M12 plug
    Active Head Material PMMA
    Tightening torque 1Nm
    Storage temperature - 30°C…+ 80° C (Without freeze)
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Generical Data
    Dimensions 31,2x21x13mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
