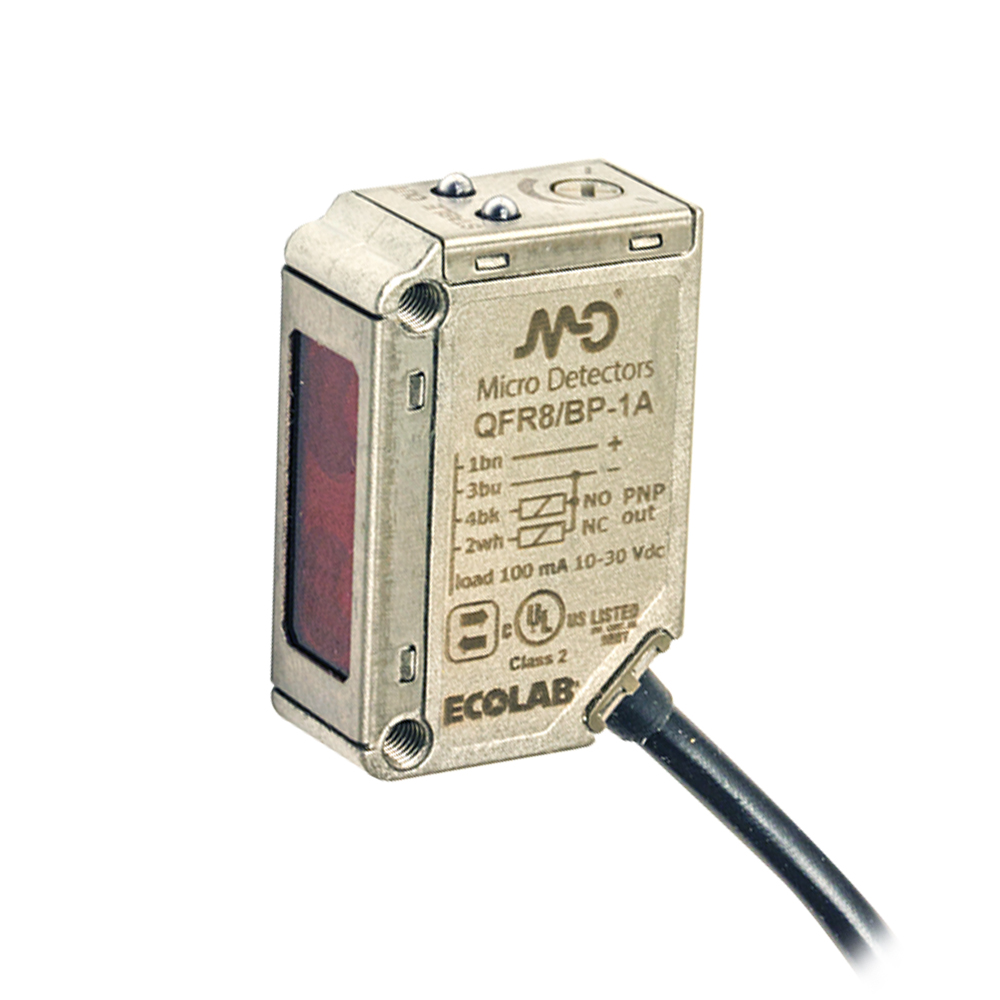

Ph.Mini,PNP-NO+NC,Cabl,Reflx

Photo.Mini,PNP-NO+NC,Cable,Reflex
Photoelectric sensor Miniature cubic IP69K Metal. AISI 316L Polarized 6m. Red PNP NO +NC cable 2m

Article no.: QFRN/BP-1A
Orderable item
Register
  • Description
    Overview

    Technical Features

    Detection properties
    Nominal sensing distance 6m
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Diffuse reflection (medium distance, ≤600mm)
    Notes On RL110 reflector
    Emitter/Receiver
    Optic position Radial 90°
    Outputs
    Output type PNP NO+NC
    Output Function NO+NC
    Switching frequency 1Khz
    Response time 500µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 25mA
    Load current ≤100mA
    Leakage current ≤100μA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (status output), green (stability, powerON)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Red (625nm)
    Interference to external light ≤10000lux
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Dimensions 31,4x21x11mm
    Weight 100g
    Housing Material Stainless steel AISI 316L
    Connections 2m PVC cable
    Active Head Material PPSU
    Operating temperature - 25°C…+ 60° C (Without freeze)
    Storage temperature -40° ... +70°C
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus ECOLAB
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP68, IP69K
    Accessories
    Supplied Accessories Mouting bracket screwdriver
    Generical Data
    Dimensions 31,4x21x11mm
    Operating Temperature - 15°C...+ 55°C (Without freeze)
    Mechanical Protection IP68, IP69K
