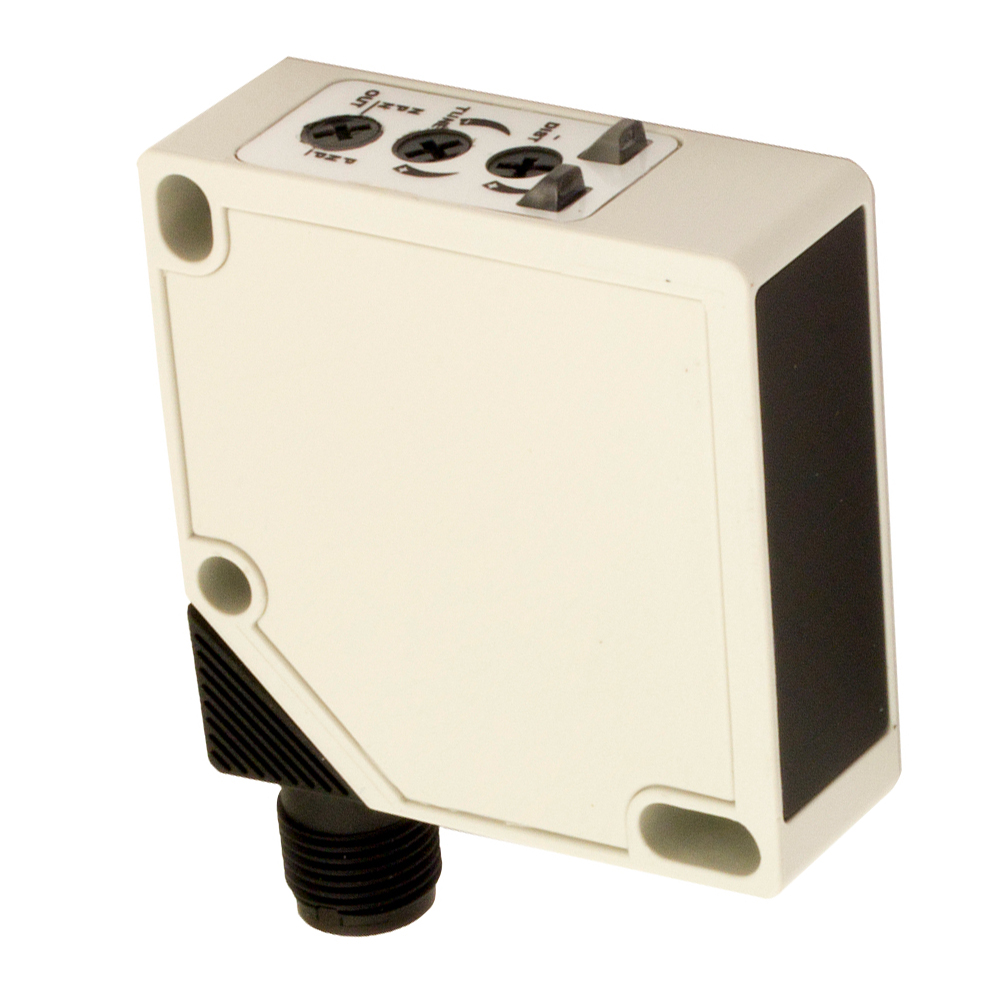

50x50,NPN/PNP-NO+NC,M12,Diff.
Photo.50x50,NPN/PNP-NO+NC,M12 plug,Diff.
Photoelectric sensor 50 x 50 Polarized 6m 10..30Vdc NPN/PNP NO+NC conn. M12
In Stock
-
Description
Overview Universal photoelectric sensor, excellent performances and high versatility due to the wide choice of different versions available Cable output or revolving connector, NPN/PNP outputs for Vdc models or SPDT relay output for multi -voltage Vdc / Vac models Complementary outputs NO + NC available on the Vdc models or selectable output NO/NC available on the multi-voltage Vdc/Vac models Totally protected against electrical damages Wide choice of optical functions available: Diffuse: 2 m; background suppression: 500 mm; polarized: 6m; through beam: 20 m. Dual multifunction output state LEDs
Technical Features
Detection propertiesNominal sensing distance 6m Sensitivity adjustment Trimmer Minimum sensing distance (blind zone) 0,2m ApplicationFunction Principle Polarized Optic position Axial OutputsOutput type NPN/PNP Selectable NO+NC Output Function NO+NC Switching frequency 500Hz Response time 1ms Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 40mA Load current ≤200mA Output voltage drop ≤2,5V@Iload=200mA Max ripple content ≤10% LED indicators Yellow (Output status), Green (stability, powerON) Time delay before availability ≤200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Red (660nm) Mechanical dataDimensions 50X50mm Weight 200g Housing Material PC/ABS Connections M12 plug Active Head Material PMMA Operating temperature - 20°C…+ 60°C ( UL omologation 0°C…60°C) Material PC/ABS Diameter/Dimension Cubic Test/ApprovalsEMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-66 Degree of protection IP67 AccessoriesSupplied Accessories Mounting bracket Generical DataDimensions 50x50x17mm Operating Temperature - 20°C…+ 60°C (Without freeze) Mechanical Protection IP67
