Photo.50x50,NPN/PNP-NO+NC,Cable,BGS

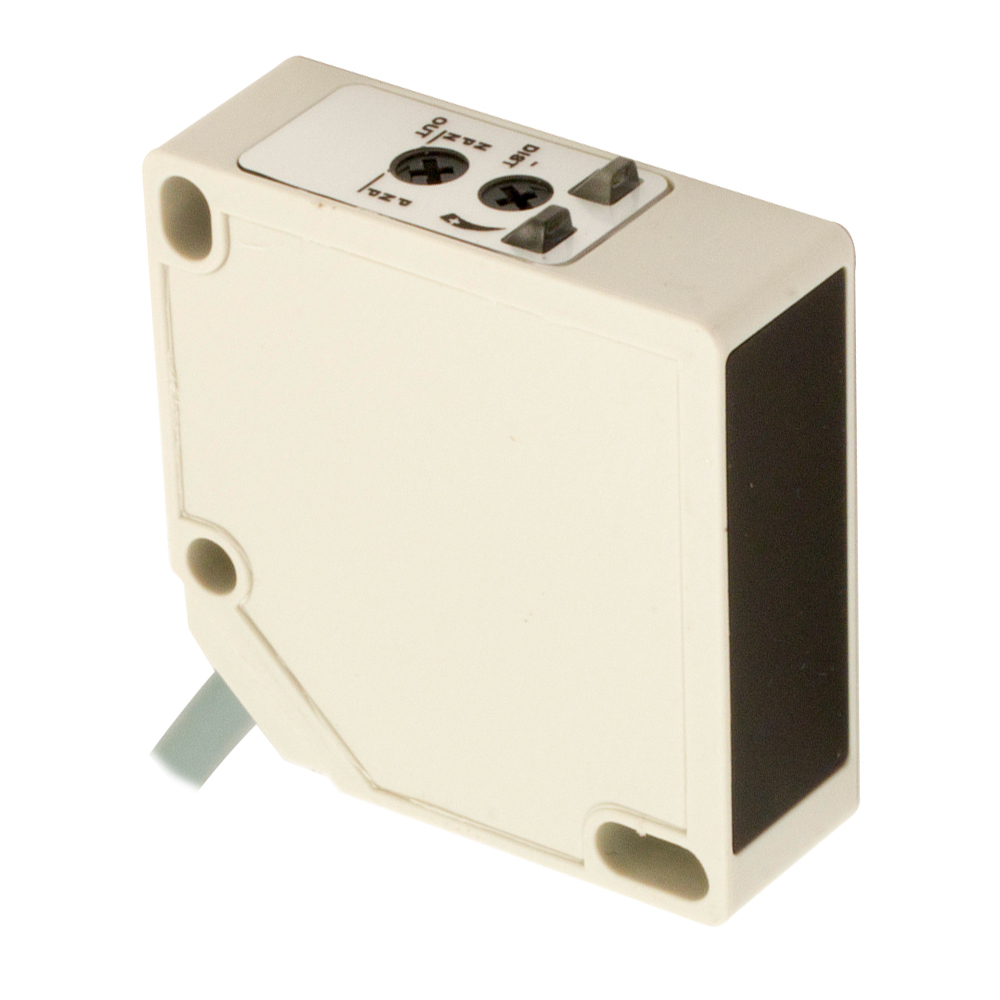

Photoelectric sensor 50 x 50 Bgs 120…500 mm 10..30Vdc NPN/PNP NO+NC cable 2m
Orderable item
-
Description
Overview Universal photoelectric sensor, excellent performances and high versatility due to the wide choice of different versions available Cable output or revolving connector, NPN/PNP outputs for Vdc models or SPDT relay output for multi -voltage Vdc / Vac models Complementary outputs NO + NC available on the Vdc models or selectable output NO/NC available on the multi-voltage Vdc/Vac models Totally protected against electrical damages Wide choice of optical functions available: Diffuse: 2 m; background suppression: 500 mm; polarized: 6m; through beam: 20 m. Dual multifunction output state LEDs
Technical Features
Detection propertiesNominal sensing distance 500mm Sensitivity adjustment Trimmer Minimum sensing distance (blind zone) 120mm ApplicationFunction Principle Blackground suppression Optic position Axial OutputsOutput type NPN/PNP Selectable NO+NC Output Function NO+NC Switching frequency 500Hz Response time 1ms Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 40mA Load current ≤200mA Output voltage drop ≤2,5V@Iload=200mA Max ripple content ≤10% LED indicators Yellow (Output status), Green (stability, powerON) Time delay before availability ≤200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Infrared (850nm) Mechanical dataDimensions 50X50mm Weight 200g Housing Material PC/ABS Connections 2m PVC cable Active Head Material PMMA Operating temperature - 20°C…+ 60°C ( UL omologation 0°C…60°C) Material PC/ABS Diameter/Dimension Cubic Test/ApprovalsEMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-62 Degree of protection IP67 AccessoriesSupplied Accessories Mounting bracket Generical DataDimensions 50x50x17mm Operating Temperature - 20°C…+ 60°C (Without freeze) Mechanical Protection IP67
