Ph.Midi,PNP-NO/NC,Cabl,E + R

Photo.Midi,PNP-NO/NC,Cable,E + R

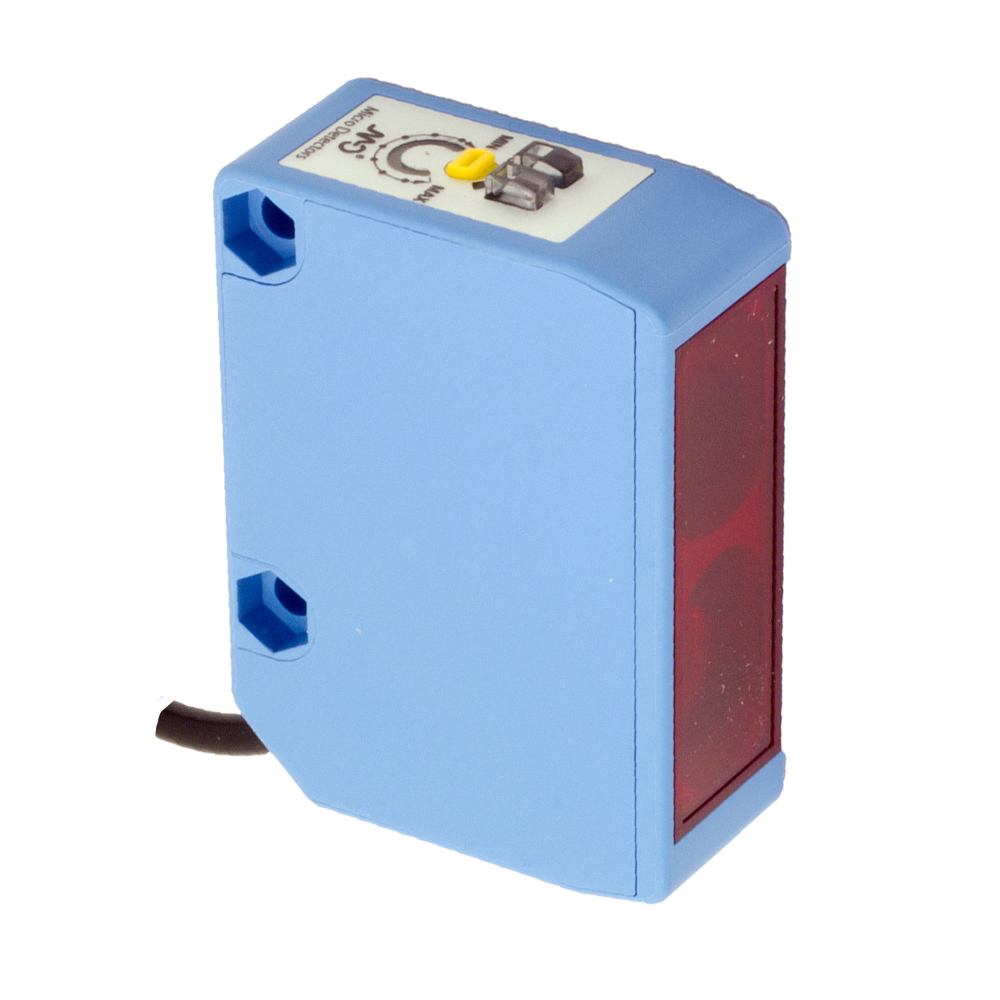

Photoelectric sensor compact E +R adj. 10...30Vdc 50 m PNP L/D cable 2m

Article no.: FGRHD/0P-0A
Orderable item
Register
  • Description
    Overview Cable output or with revolving connector, NPN or PNP output (DC models) and SPDT voltage free relay output (AC models) Selectable LO/DO output status Totally protected against electrical damages Background suppressions models: 310 mm, 600 mm Reflex polarized sensitivity adjustment 12 m Emitter and Receiver with max detecting range of 50 m Double Multifunction LED indicator: output state and using the pointing Sensitive adjustment models

    Technical Features

    Detection properties
    Nominal sensing distance 50m
    Sensitivity adjustment Potentiometer 2 turns with position indicator (emitter)
    Application
    Function Principle Emitter and Receiver
    Optic position Axial
    Emitter Code FGRH/00-0E
    Receiver Code FGRD/0P-0E
    Outputs
    Output type PNP L/D Selectable
    Output Function L/D Selectable
    Switching frequency 1Khz
    Response time 500µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 35mA (emitter), ≤ 20mA (receiver)
    Load current ≤100mA
    Output voltage drop ≤1,8V@Iload=100mA
    Max ripple content
    LED indicators Green (powerON) Yellow (status output)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Red
    Interference to external light 10,000Lux (minimum sunlight), 3,000 min HF lamp
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Dimensions 20x44,9x60mm
    Weight
    Housing Material ABS
    Connections 2m PVC cable
    Active Head Material PMMA
    Operating temperature -25°C…+55°C
    Material
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE UR
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
    Degree of protection IP67
    Accessories
    Supplied Accessories Mounting bracket STFG 00
    Generical Data
    Dimensions 20x44,9x60mm
    Operating Temperature - 25°C…+ 55°C (Without freeze)
    Mechanical Protection IP67
