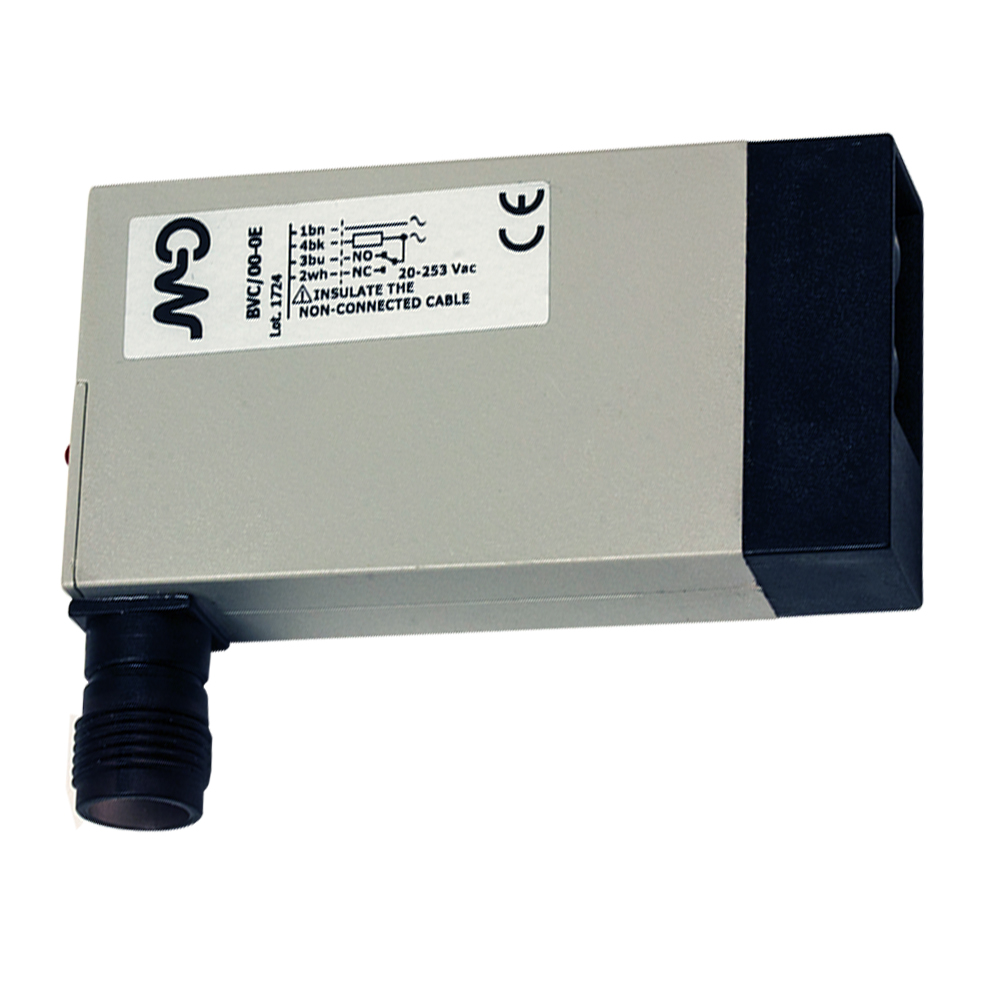

Midi,NPN/PNP-NO/NC,M12,Diff.
Photo.Midi,NPN/PNP-NO/NC,M12 plug,Diff.
Photoelectric sensor midi Diffuse 1600 mm NPN/PNP NO/NC conn. M12 90°
Orderable item
-
Description
Overview Wide range of models: diffuse, retro-reflective, polarized Muntifunctional DECOUT® output and logic connection possibilities (DC types) Multivoltage 20-253 Vac and TRIAC output with NO/NC selectable (AC types) Sensitivity adjustment Standard cable exit or M12 plug exit LED status indicator Completely filled with resin High sensing range
Technical Features
Detection propertiesNominal sensing distance 1,6m Repeat Accuracy ≤ 5% Sensitivity adjustment Trimmer ApplicationFunction Principle Diffuse reflection (long distance, >600mm) Optic position Axial OutputsOutput type Decout NPN/PNP Selectable NO/NC Selectable Output Function NO/NC Selectable Switching frequency 80Hz Response time 6,25ms Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 25mA Load current ≤100mA Leakage current ≤ 10μA Output voltage drop ≤1,2V@Iload=100mA Max ripple content ≤10% LED indicators Red (output status) Time delay before availability 200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Infrared (880nm) Interference to external light 3000lux Incandescent Lamp, 10000lux Mechanical dataDimensions 16x37x64 Weight 185g Housing Material ABS Connections M12 plug 90° Active Head Material PMMA Operating temperature - 25°C…+ 70°C ( without freeze) Material Diameter/Dimension Cubic Test/ApprovalsApprovals CE EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-38 Degree of protection IP65 AccessoriesSupplied Accessories ST01 mounting brakets and screws Generical DataDimensions 16x37x64 Operating Temperature - 25°C…+ 70°C (Without freeze) Mechanical Protection IP65
