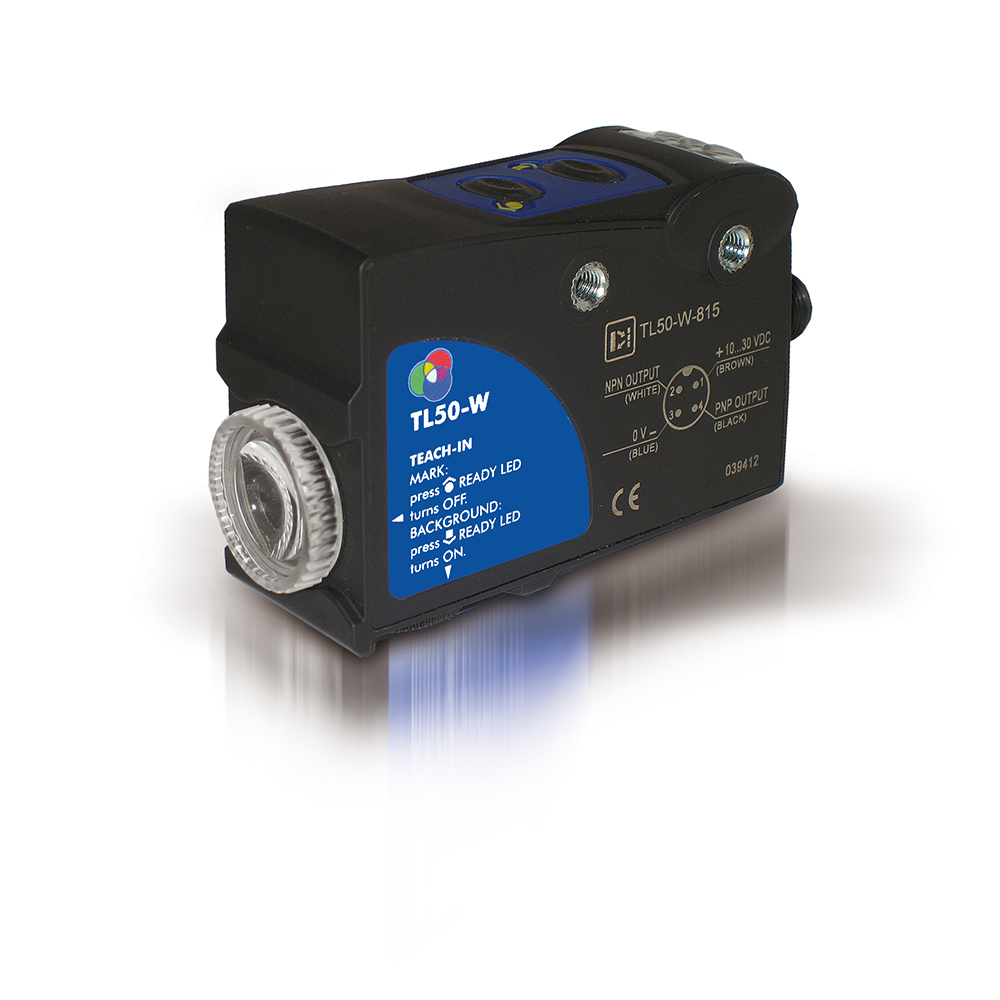

TL50-W-815 10-20MM V-SPOT M12-4 NPN/PNP

TL50-W-815
Photoelectric Sensor Midi Contrast sensor 8 mm. basic vertical spot RGB Emission npn/pnp out - M12

Article no.: 954651000
Orderable item
Register
  • Description
    Overview

    Technical Features

    Detection properties
    Nominal sensing distance 9mm
    Spot dimension 1,5 x 5mm
    Sensitivity adjustment Teach-in
    Application
    Function Principle Contrast mark detection
    Description Standard case - vertical spot
    Optic position axial
    Functions Contrast mark detection
    Outputs
    Output type NPN/PNP Dark/Light sel.
    Output Function Dark/Light sel.
    Switching frequency 15 kHz
    Response time 0,033 (15kHz)
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 50mA
    Output voltage drop ≤2V@Iload=100mA
    LED indicators Yellow (output state) Green (Ready) Orange (delay)
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LED RGB
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 31x53x80
    Housing Material Plastic - ABS / PMMA
    Connections M12 plug
    Active Head Material Glass
    Storage temperature - 25°C…+70°C
    Material
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 31x53x80
    Operating Temperature - 10°C…+ 55°C
    Mechanical Protection IP67
