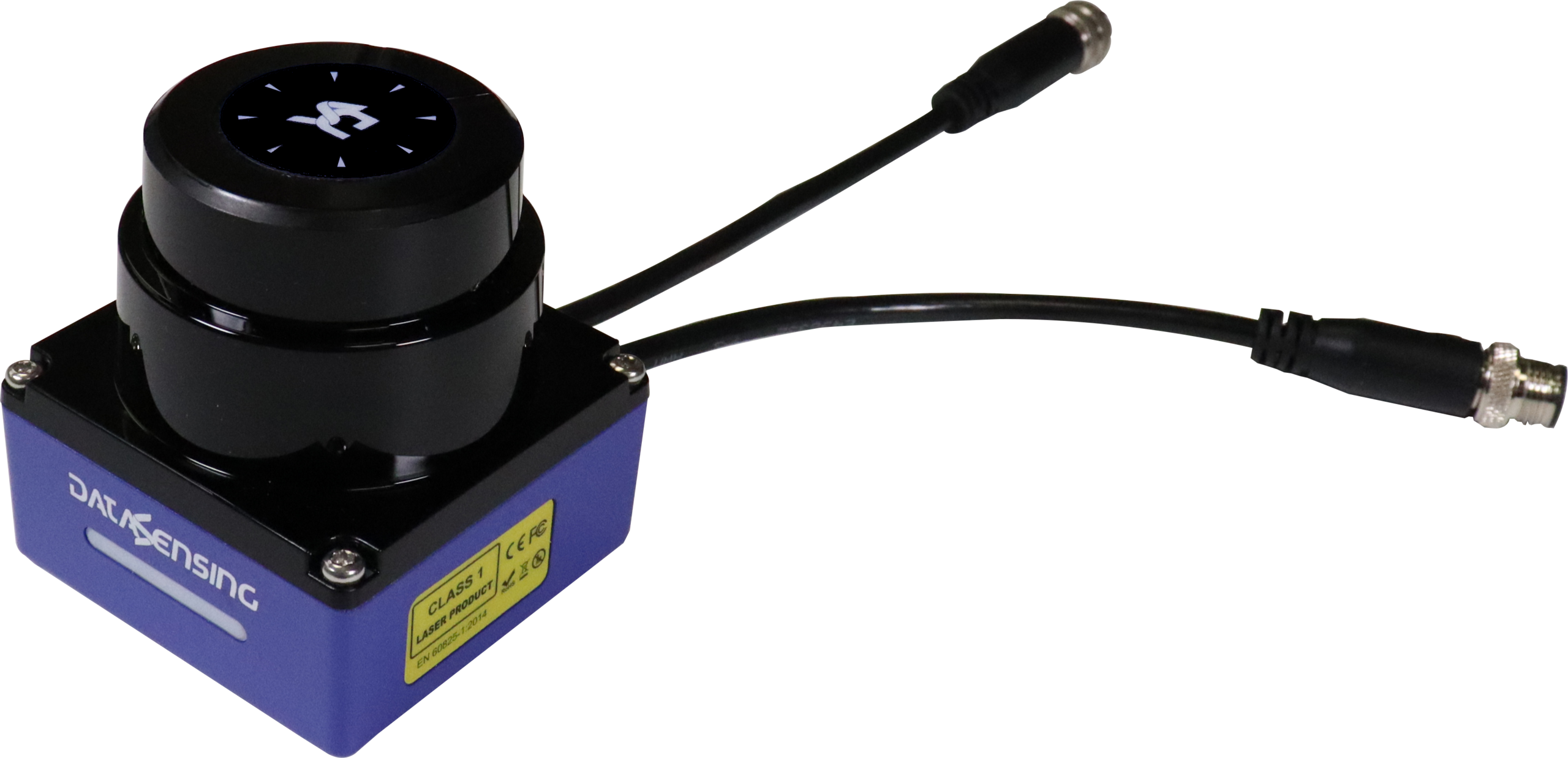

LGS-A10 Anticollision Compact Lidar
LGS-A10 Compact lidar for collision avoidance and 2D object detection, 2D FILES, CAD FILES, SERIES CATALOGUE, USER MANUALS, SAFETY AND LIDARS SOFTWARE
In Stock
-
Description
Compact, reliable and rugged Lidar for collision avoidance and for 2Dobject detection available also for outdoor applications. Very easy to install and use
- ToF technology on infrared laser
- 2D Measurement data for natural navigation and for object profiling
- 360° measurement for all-round scanning
- Very Compact design suitable also for smaller machines
- High precision and reliable measurement up to 25 meters
- Up to 225000 measured points per second
- Up to 25 Hz selectable rotation frequency
- 0.25° angle resolution
- Dimensions: 65 x 65 x 70 mm
- 10 m x 360° detection field
- 3 simultaneous detection outputs
- Up to 16 zone sets
- 5 selectable detection capabilities
- 10 selectable response times
- Output response time min = 80 ms
Detection properties Nominal sensing distance 25 m (Measurement) ; 10 m (Object detection) Minimum sensing distance (blind zone) 0.1 m Measurement range @ 10% targe remission 10 m Angular resolution 0.25° @10Hz / 0.5° @15Hz / 1° @25Hz Application Description Compact lidar LGS-A10 Functions AMR AGV Collsion avoidance - 2D object detection Configuration and monitoring interface LGS PRO Outputs Response time 80 ms min Data Transmitted angle - distance - signal strenght of each measuring point ; time stamp and more Ethernet connection M12 4 pins M Key D -- IEEE 802.3u 100Mbps Ethernet Configurable Output max number 3 simoultaneous on M12 12 pins connector Electrical data Operating Voltage 9...30 Vdc Emission Laser infrared Mechanical data Dimensions 65x65x70 mm Weight <500 g Material aluminium / PC Mechanical protection IP67 Generical Data Operating Temperature -10 ...+60°C -
