IS-F12-S1-S2

Name: IS-F12-S1-S2
SKU: 95B065360
Availability: BackOrder

IS-F12-S1-S2

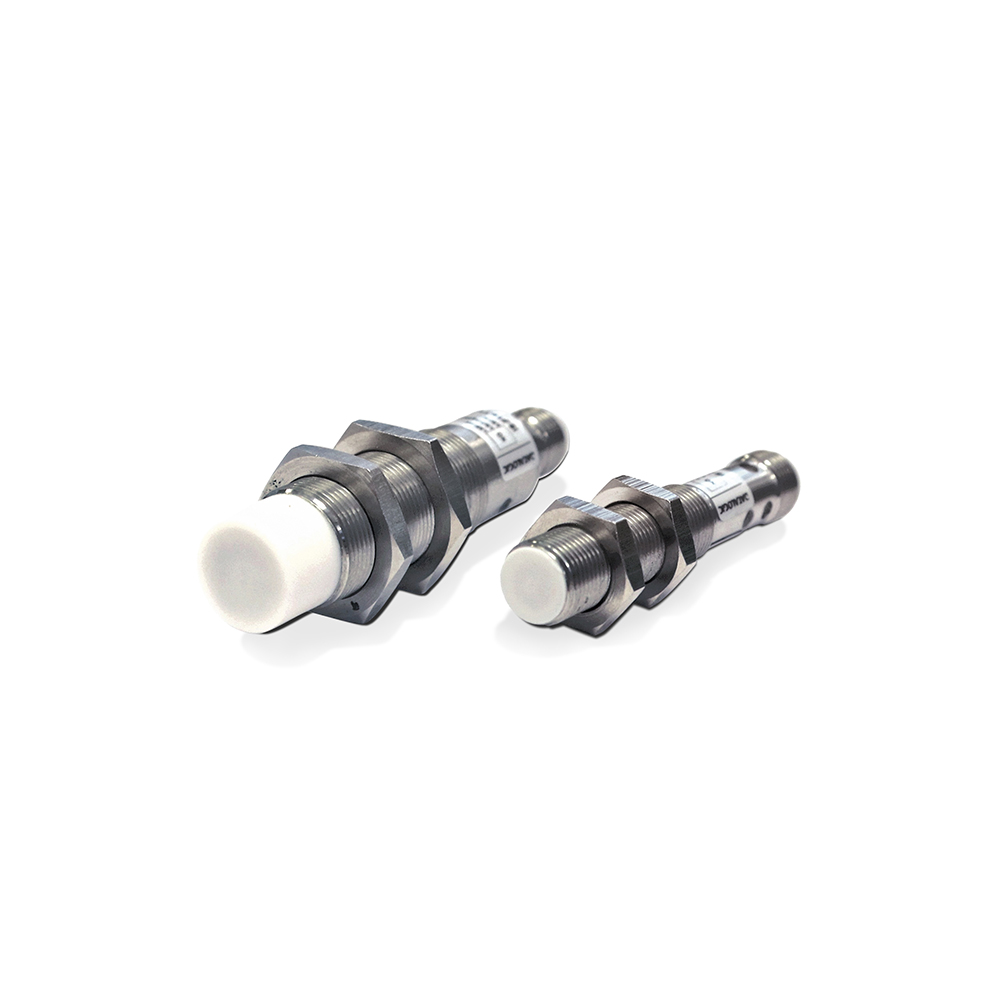

Inductive Proximity Sensor ø12 standard stainless steel - field i mmune flush 2 mm - pnp no 3 wires- M12

Article no.: 95B065360

Orderable item

Overview Standard proximity M4, M5, M8, M12, M18, M30 Double range (i.e. M12 4mm, M18 14mm, M3020mm) Unshielded or shielded models for flush mounting Nickel brass or stainless steel short and longhousing Ecolab and Diversey certifications for industrialdetergents Multi-voltage, Metal face, Weld field immune models NO/NC, NPN or PNP output and programmableversions.

Technical Features

Detection properties

Nominal sensing distance	2mm
Operanting distance	0…1,62mm
Standard target	12x12mm FE360
Correction Factor	copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85
Repeat Accuracy	< 1% (UB 24V Ta=23°C ±5°C)
Hysteresis	< 15%

Application

Description	M12 weld field immune flush mount
Functions	Proximity

Outputs

Output type	PNP
Output Function	NO
Switching frequency	2kHz
Response time	0,25

Electrical data

Operating Voltage	10...30Vdc
No-Load supply current	≤ 10mA
Load current	200mA
Output voltage drop	≤ 1,5V @100mA
Max ripple content	≤ 10%
LED indicators	Yellow LED output state
Time delay before availability	< 0,1ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	≥100kHz
Protection against inductive loads	Yes

Mechanical data

Mounting	Shielded
Dimensions	Ø12x67
Housing Material	Stainless steel
Connections	M12 Plug
Active Head Material	PTFE
Material	Stainless steel
Diameter/Dimension	M12

Test/Approvals

Approvals

Generical Data

Dimensions	Ø12 / L = 67mm
Operating Temperature	-25°C…+70°C
Mechanical Protection	IP67
