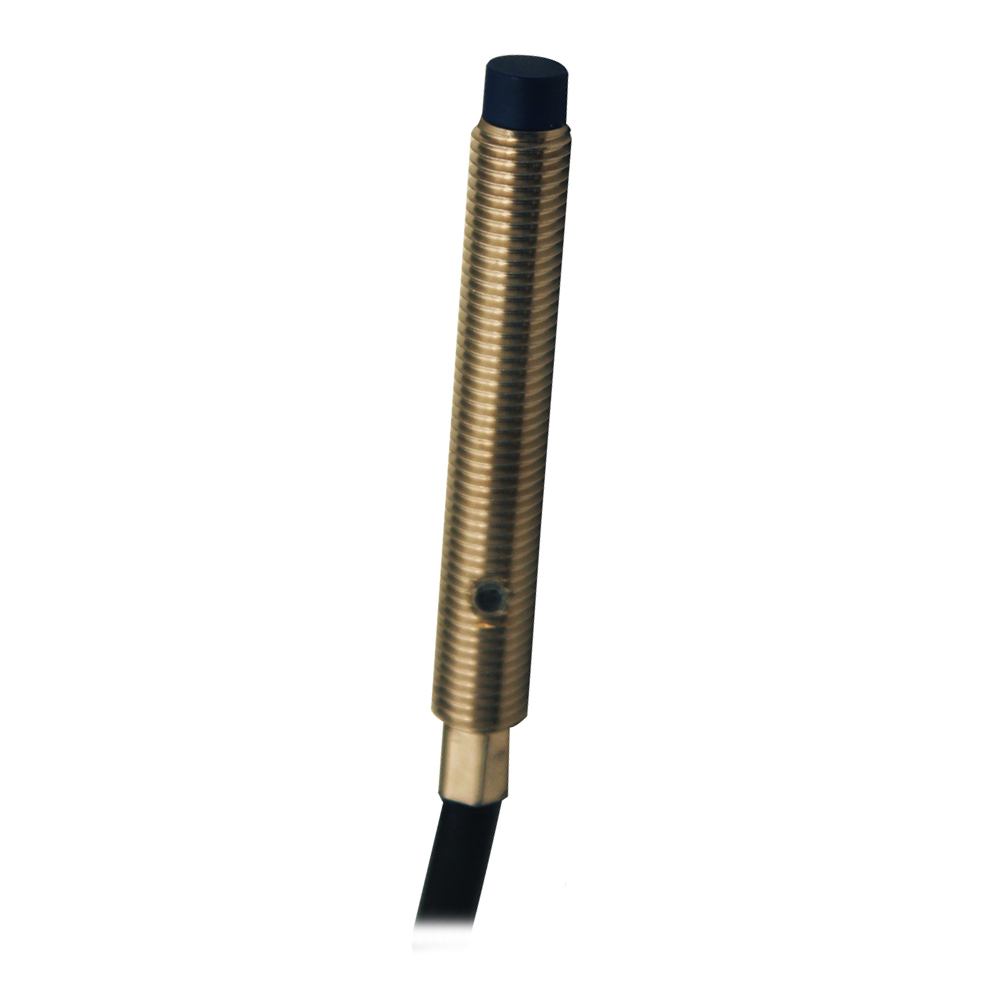

Ind.M8,2 wires AC/DC-NC,Cable,Nsch-LD Inductive sensor AC/DC M8, unshielded, PUR cable exit, NC (Vac)-NC (Vdc), 2D FILES, FILE 3D, CAD FILES, EU DECLARATIONS, SERIES CATALOGUE
Orderable item
-
Description
Detection properties Nominal sensing distance 4mm Operanting distance 0…3,2mm Standard target 12x12mm FE360 Correction Factor copper: 0,47 / aluminium: 0,52 / brass: 0,57 / stainless steel: 0,79 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% Application Description M8 standard no-flush mount Functions Proximity Outputs Output type MOSFET Output Function NC Switching frequency 25Hz (AC) - 900Hz (DC) Electrical data Operating Voltage 20...120Vac/50...60Hz...20...120Vdc Load current 5…55ma(Vac) - 5…80mA (Vdc) Leakage current ≤ 0,55mA (Vac) - ≤ 0,40mA (Vdc) Output voltage drop ≤ 7,5V (Vac) - ≤ 8,5V (Vdc) Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤100ms Short-circuit protection Yes Impulsive Overvoltage Protection Yes Inrush current 150mA/150ms (AC/DC) 0,1µF @Vmax - 1µF @Vmin 0,1µF @Vmax - 1µF @Vmin Mechanical data Mounting Unshielded Dimensions M8 x 1 / L = 61,9mm Weight 70g Housing Material Nickel-plated brass Connections 2m PUR Cable Active Head Material PA4T Tightening torque 3Nm Operating temperature -25°C…+70°C Material Nickel-plated brass Diameter/Dimension M8 Test/Approvals Approvals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 Accessories Supplied Accessories 2 nuts M8x1 Generical Data Dimensions M8 x 1 / L = 61,9mm Operating Temperature -25°C…+70°C Mechanical Protection IP67 -
