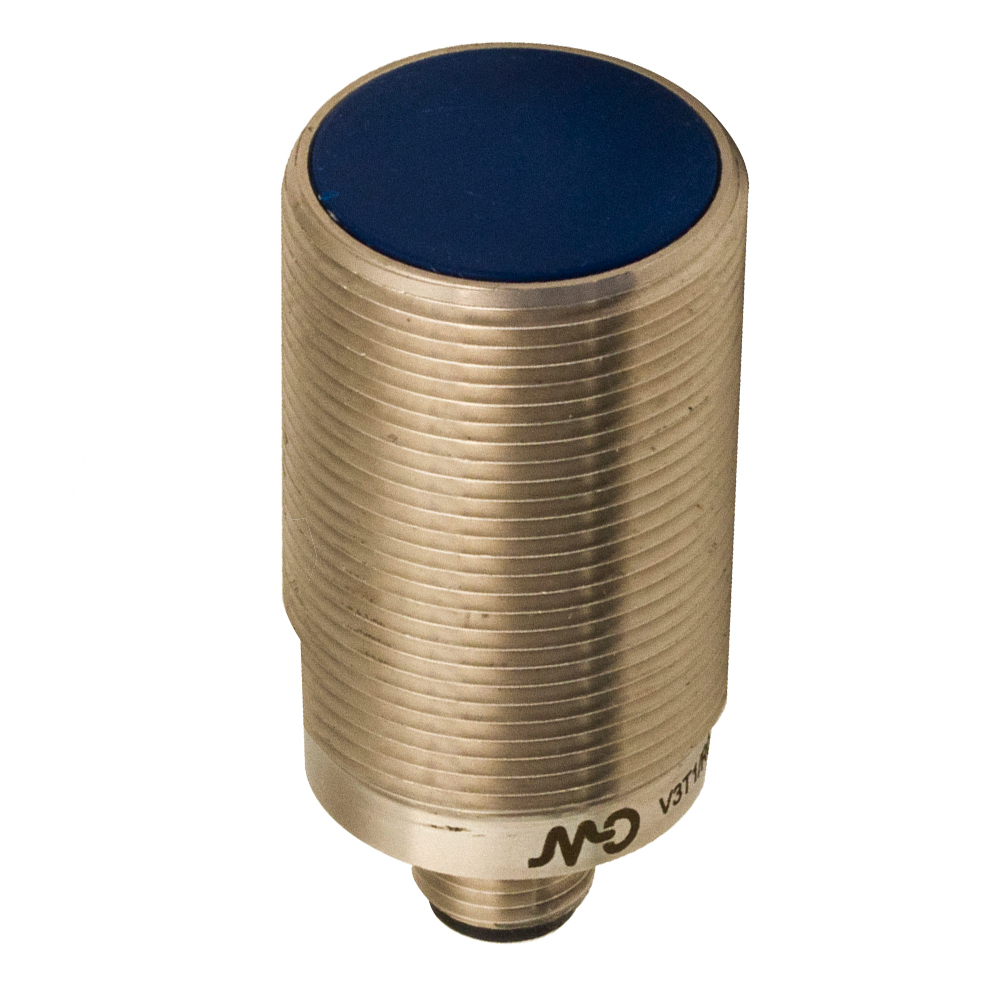

Inductive sensor AC/DC M30, shielded, 1/2"-20UNF plug cable exit, NC (Vac)-NC/NO (Vdc)

Article no.: V3T1/S0-3Q
Orderable item
Register
  • Description
    Overview

    Technical Features

    Detection properties
    Nominal sensing distance 12mm
    Operanting distance 0…9,7mm
    Standard target 36x36mm FE360
    Correction Factor copper: 0,42 / aluminium: 0,48 / brass: 0,53 / stainless steel: 0,83
    Thermal drift of Sr < 10%
    Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
    Hysteresis 1 … 20%
    Application
    Description M30 standard flush mount
    Functions Proximity
    Outputs
    Output type MOSFET
    Output Function NC (Vac) - NC/NO (Vdc)
    Switching frequency 25Hz (AC) - 250Hz (DC)
    Electrical data
    Operating Voltage 20...250Vac/50...60Hz...20...250Vdc
    Load current 5…140ma(Vac) - 5…200mA (Vdc)
    Leakage current ≤ 1mA (Vac) - ≤ 0,7mA (Vdc)
    Output voltage drop ≤ 7,5V (Vac) - ≤ 8V (Vdc)
    Max ripple content ≤ 10%
    LED indicators Yellow LED output state
    Time delay before availability ≤100ms
    Short-circuit protection Yes
    Impulsive Overvoltage Protection Yes
    Inrush current 600mA/150ms (AC/DC)
    0,1µF @Vmax - 1µF @Vmin 1µF @Vmax - 1µF @Vmin
    Mechanical data
    Mounting Shielded
    Dimensions M30 x 1,5 / L = 55mm
    Weight 120g
    Housing Material Nickel-plated brass
    Connections ½" - 20UNF plug
    Active Head Material PA4T
    Tightening torque 40Nm
    Operating temperature -25°C…+70°C
    Material Nickel-plated brass
    Diameter/Dimension M30
    Test/Approvals
    Approvals CE cULus
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories 2 nuts M30x1.5
    Generical Data
    Dimensions M30 x 1,5 / L = 55mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
