M18,2wire AC/DC-NO,Cable,Ns-LD

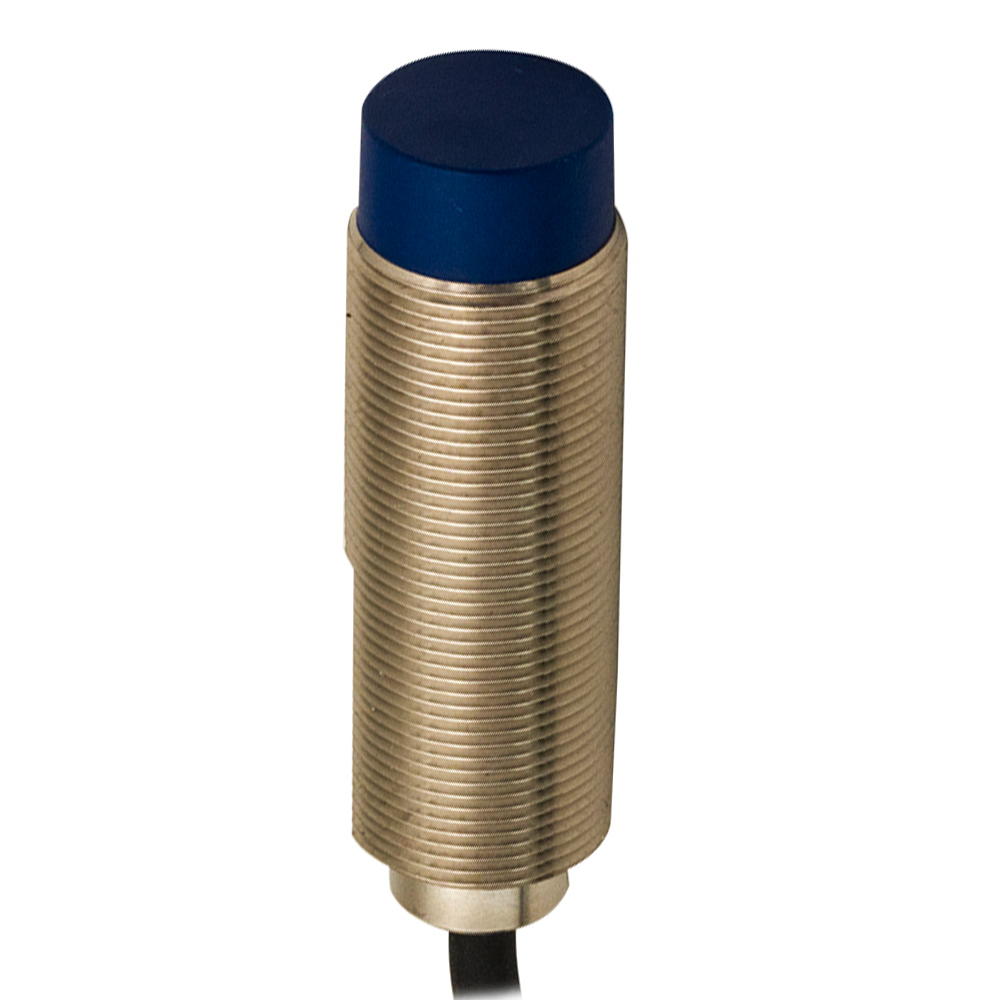

Ind.M18,2 wires AC/DC-NO,Cable,Nsch-LD Inductive sensor AC/DC M18, unshielded, PUR cable exit, NO (Vac)-NO/NC (Vdc), 2D FILES, FILE 3D, CAD FILES, EU DECLARATIONS, SERIES CATALOGUE
Orderable item
-
Description
Detection properties Nominal sensing distance 10mm Operanting distance 0…8,1mm Standard target 30x30mm FE360 Correction Factor copper: 0,47 / aluminium: 0,51 / brass: 0,55 / stainless steel: 0,77 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% Application Description M18 standard no-flush mount Functions Proximity Outputs Output type MOSFET Output Function NO (Vac) - NO/NC (Vdc) Switching frequency 25Hz (AC) - 550Hz (DC) Electrical data Operating Voltage 20...250Vac/50...60Hz...20...250Vdc Load current 5…140ma(Vac) - 5…200mA (Vdc) Leakage current ≤ 1mA (Vac) - ≤ 0,7mA (Vdc) Output voltage drop ≤ 7,5V (Vac) - ≤ 8V (Vdc) Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤100ms Short-circuit protection Yes Impulsive Overvoltage Protection Yes Inrush current 600mA/150ms (AC/DC) 0,1µF @Vmax - 1µF @Vmin 1µF @Vmax - 1µF @Vmin Mechanical data Mounting Unshielded Dimensions M18 x 1 / L = 60mm Weight 100g Housing Material Nickel-plated brass Connections 2m PUR Cable Active Head Material PA4T Tightening torque 25Nm Operating temperature -25°C…+70°C Material Nickel-plated brass Diameter/Dimension M18 Test/Approvals Approvals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 Accessories Supplied Accessories 2 nuts M18x1 Generical Data Dimensions M18 x 1 / L = 60mm Operating Temperature -25°C…+70°C Mechanical Protection IP67 -
