M12,PNP-NO+NC,M12,Nsch-STD,ATX
Ind.M12,PNP-NO+NC,M12 Plug,Nsch-STD

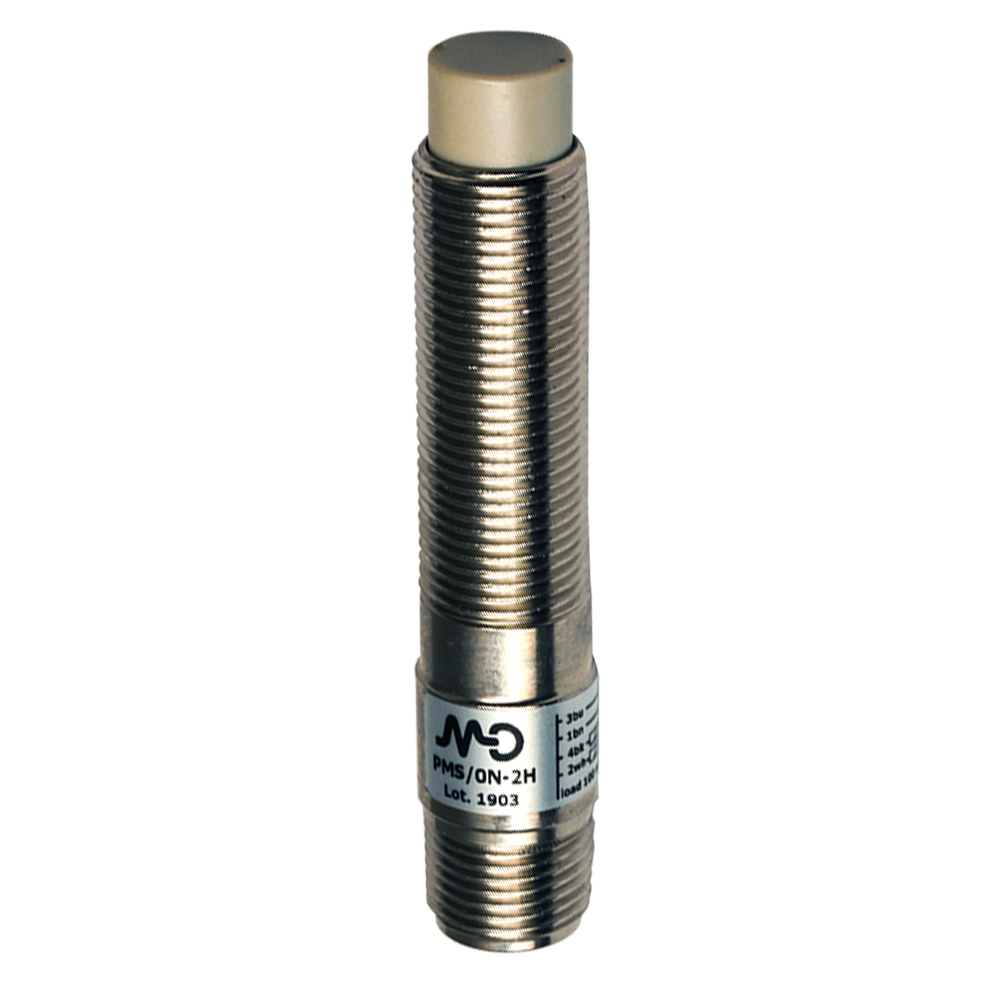

Inductive sensor M12 shielded PNP conn. M12 II 3G Ex nA IIC T5, II 3D Ex tD A22 IP67 T90°C
Orderable item
-
Description
Technical Features
Detection propertiesNominal sensing distance 4mm Operanting distance 0…3,24mm Standard target 12x12mm FE360 Correction Factor copper: 0,41 / aluminium: 0,47 / brass: 0,56 / stainless steel: 1,15 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription M12 standard no-flush mount Functions Proximity OutputsOutput type PNP Output Function NO + NC Switching frequency 2kHz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 15mA Load current ≤ 100mA Leakage current ≤ 10μA Output voltage drop ≤ 2V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical dataMounting Unshielded Housing Material Nickel-plated brass Connections M12 Plug Active Head Material PPS Tightening torque 10Nm Material Nickel-plated brass Diameter/Dimension M12 Test/ApprovalsApprovals CE II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 AccessoriesSupplied Accessories 2 nuts M12x1 Generical DataDimensions M12 x 1 / L =64,6mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
