In.M12,PNP-NO+NC,M12Plug,SchLD
Ind.M12,PNP-NO+NC,M12 Plug,Sch-LD

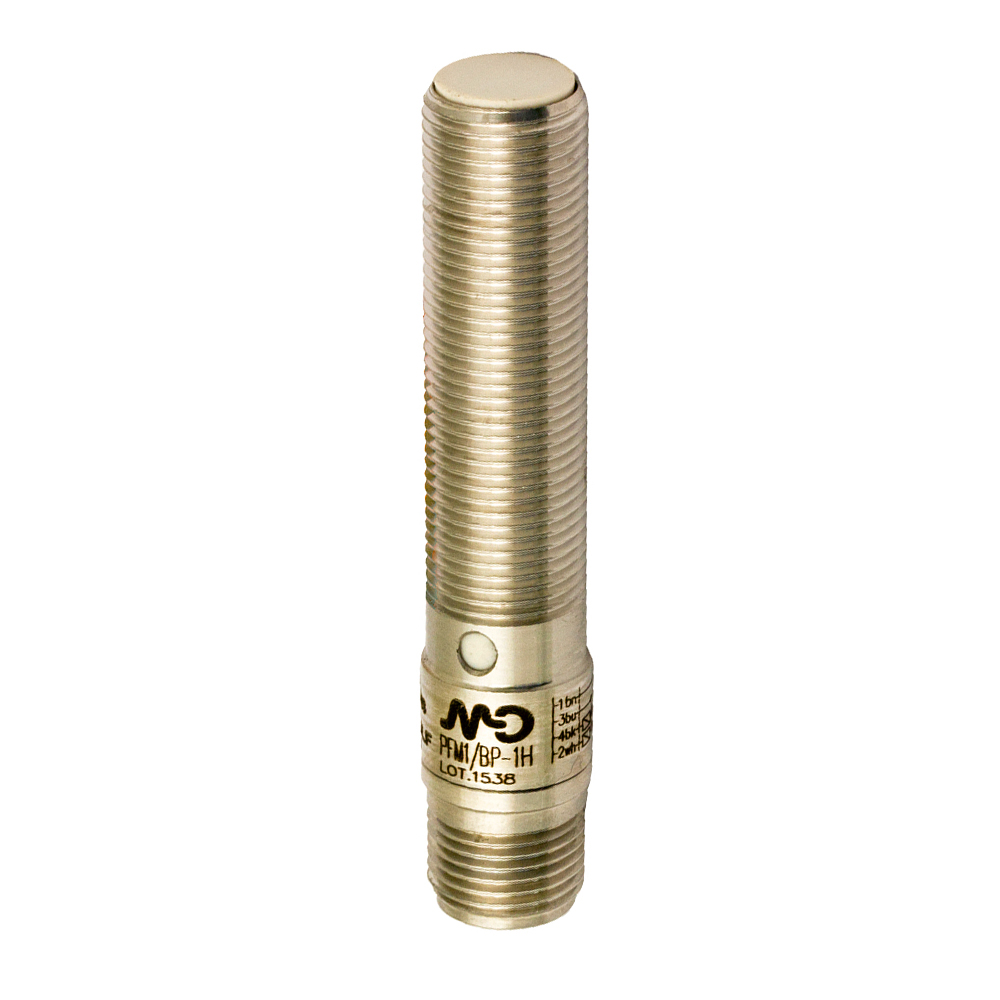

Inductive sensor M12 shielded LD NO+NC/PNP conn. M12
Orderable item
-
Description
Overview AISI 316L (DIN 1.4404) stainless steel housing LED status indicator IP67 – IP68 – IP69K protection degree ATEX models, cat. 3, available on request Complete protection against electrical damages Standard and long distance models
Technical Features
Detection propertiesNominal sensing distance 4mm Operanting distance 0…3,24mm Standard target 12x12mm FE360 Correction Factor copper: 0,30 / aluminium: 0,35 / brass: 0,40 / stainless steel: 0,75 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription M12 standard flush mount Functions Proximity OutputsOutput type PNP Output Function NO + NC Switching frequency 2kHz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 15mA Load current ≤ 200mA Leakage current ≤ 15μA Output voltage drop ≤ 2V @200mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical dataMounting Shielded Dimensions M12 x 1 / L = 64,6mm Weight 30g Housing Material AISI316L Stainless Steel Connections M12 Plug Active Head Material PPS Tightening torque 25Nm Operating temperature -40°C…+80°C (up to 100°C for short exposure during cleaning process) Material AISI316L Stainless Steel Diameter/Dimension M12 Test/ApprovalsApprovals CE cULus ECOLAB DIVERSEY EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP68, IP69K AccessoriesSupplied Accessories 2 nuts M12x1 Generical DataDimensions M12 x 1 / L = 64,6mm Operating Temperature -40°C…+80°C (up to 100°C for short exposure during cleaning process) Mechanical Protection IP67
