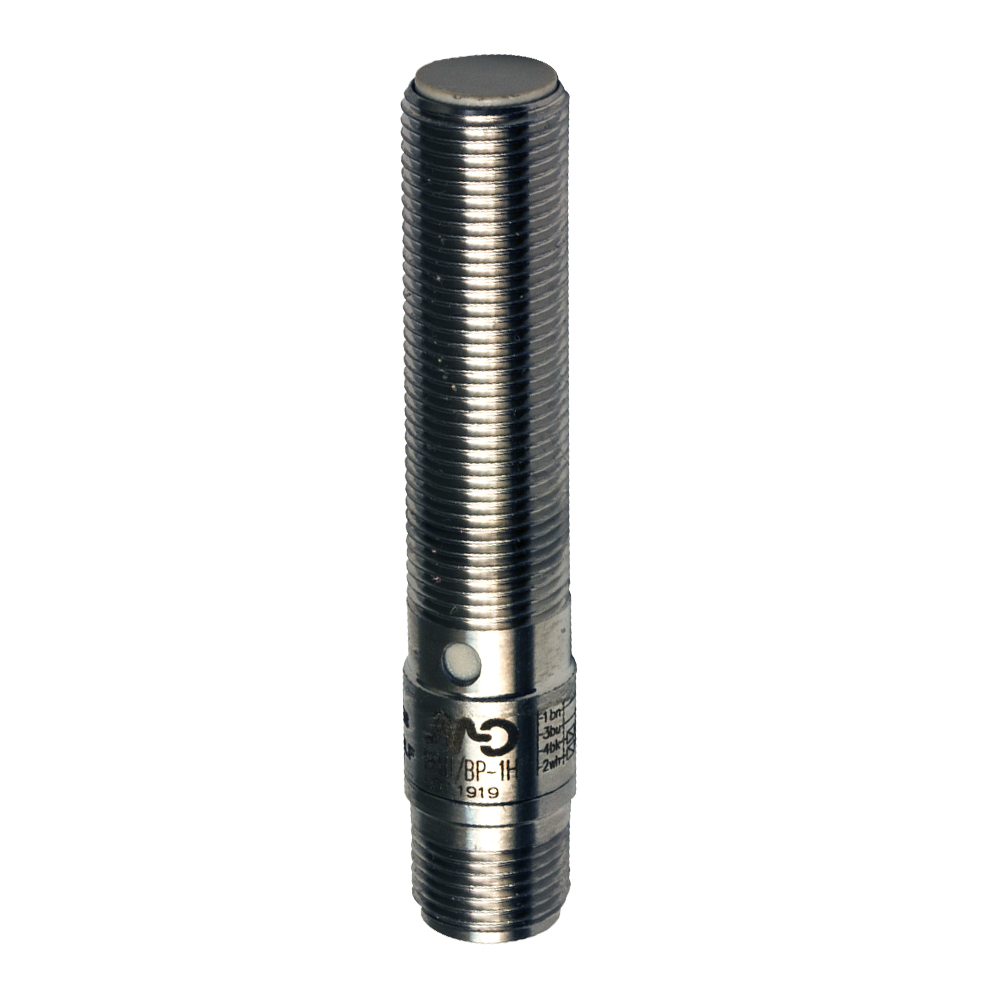

I.M12,PNP-NO+NC,M12Plug,SchSTD

Name: I.M12,PNP-NO+NC,M12Plug,SchSTD
SKU: PFM1/BP-1H26
Availability: BackOrder

Ind.M12,PNP-NO+NC,M12 plug,Sch-STD
Inductive sensor M12 shielded Std. NO+NC/PNP temperature range -25°C …+ 110°C

Article no.: PFM1/BP-1H26

Orderable item

Overview AISI 316L (DIN 1.4404) stainless steel housing LED status indicator IP67 – IP68 – IP69K protection degree ATEX models, cat. 3, available on request Complete protection against electrical damages Standard and long distance models

Technical Features

Detection properties

Nominal sensing distance	2mm
Operanting distance	0…1,62mm
Standard target	12x12mm FE360
Correction Factor	copper: 0,25 / aluminium: 0,30 / brass: 0,40 / stainless steel: 0,75
Thermal drift of Sr	< 10%
Repeat Accuracy	< 5% (UB 24V Ta=23°C ±5°C)
Hysteresis	1 … 20%

Application

Description	M12 standard flush mount
Functions	Proximity

Outputs

Output type	PNP
Output Function	NO + NC
Switching frequency	2kHz

Electrical data

Operating Voltage	10...30Vdc
No-Load supply current	≤ 15mA
Load current	≤ 200mA
Leakage current	≤ 15μA
Output voltage drop	≤ 2V @200mA
Max ripple content	≤ 10%
LED indicators	No
Time delay before availability	≤ 50ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Impulsive Overvoltage Protection	Yes
Protection against inductive loads	Yes

Mechanical data

Mounting	Shielded
Dimensions	M12 x 1 / L = 64,6mm
Weight	30g
Housing Material	AISI316L Stainless Steel
Connections	M12 Plug
Active Head Material	PPS
Tightening torque	25Nm
Operating temperature	-25°C…+110°C
Material	AISI316L Stainless Steel
Diameter/Dimension	M12

Test/Approvals

Approvals	CE cULus ECOLAB DIVERSEY
EMC compatibility	IEC 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP68, IP69K

Accessories

Supplied Accessories

2 nuts M12x1

Generical Data

Dimensions	M12 x 1 / L = 64,6mm
Operating Temperature	-25°C…+110°C
Mechanical Protection	IP67
