In.M18,NPN-NO,M12Plug,NSchSTD

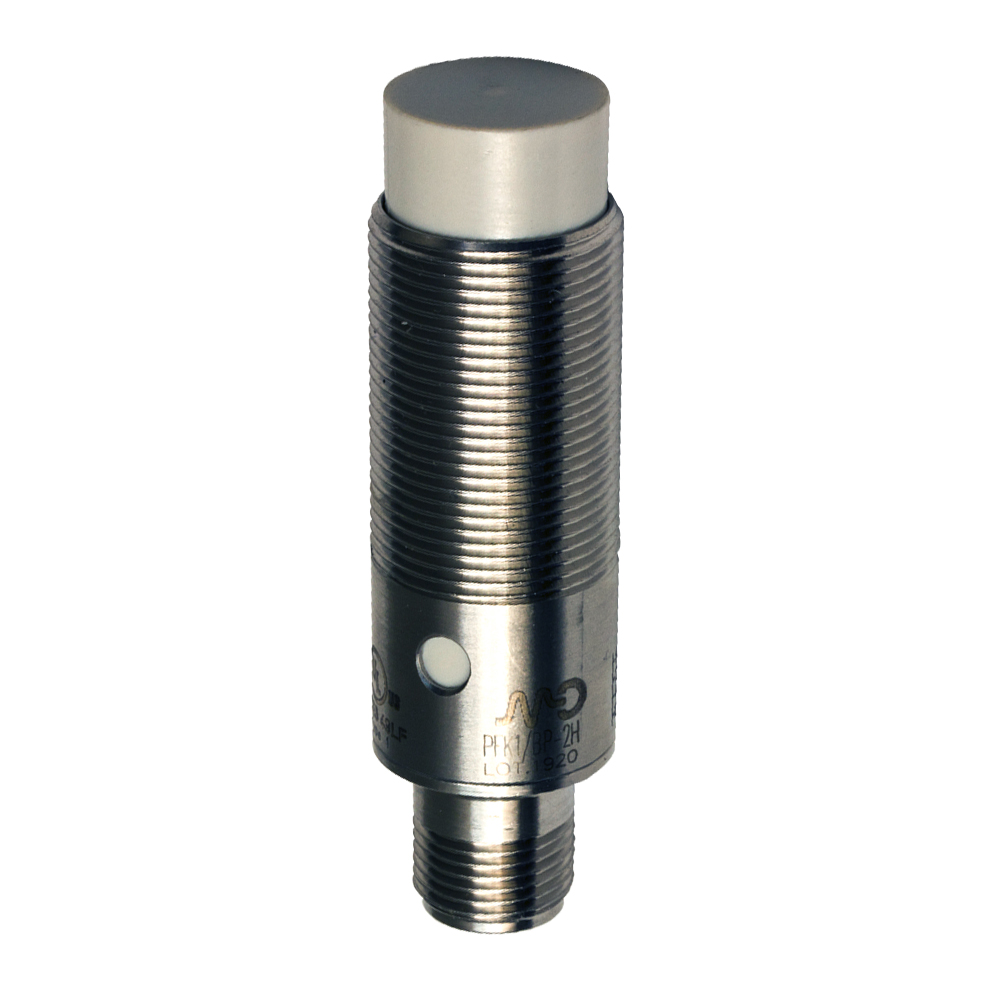

Ind.M18,NPN-NO,M12 Plug,Nsch-STD Inductive sensor M18 unshielded Std. NO/NPN conn. M12, 2D FILES, FILE 3D, CAD FILES, EU DECLARATIONS, SERIES CATALOGUE, USER MANUALS
Orderable item
-
Description
- AISI 316L (DIN 1.4404) stainless steel housing
- LED status indicator
- IP67 – IP68 – IP69K protection degree
- ATEX models, cat. 3, available on request
- Complete protection against electrical damages
- Standard and long distance models
Detection properties Nominal sensing distance 8mm Operanting distance 0…6,48mm Standard target 24x24mm FE360 Correction Factor copper: 0,27 / aluminium: 0,35 / brass: 0,42 / stainless steel: 0,70 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% Application Description M18 standard no-flush mount Functions Proximity Outputs Output type NPN Output Function NO Switching frequency 1,5kHz Electrical data Operating Voltage 10...30Vdc No-Load supply current ≤ 15mA Load current ≤ 200mA Leakage current ≤ 10μA Output voltage drop ≤ 2V @200mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical data Mounting Unshielded Dimensions M18 x 1 / L = 63,1mm Weight 55g Housing Material AISI316L Stainless Steel Connections M12 Plug Active Head Material PPS Tightening torque 50Nm Operating temperature -40°C…+80°C (up to 100°C for short exposure during cleaning process) Material AISI316L Stainless Steel Diameter/Dimension M18 Test/Approvals Approvals CE cULus ECOLAB DIVERSY EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP68, IP69K Accessories Supplied Accessories 2 nuts M18x1 Generical Data Dimensions M18 x 1 / L = 63,1mm Operating Temperature -40°C…+80°C (up to 100°C for short exposure during cleaning process) Mechanical Protection IP67 -
