IS-18-L1-S2
IS-18-L1-S2

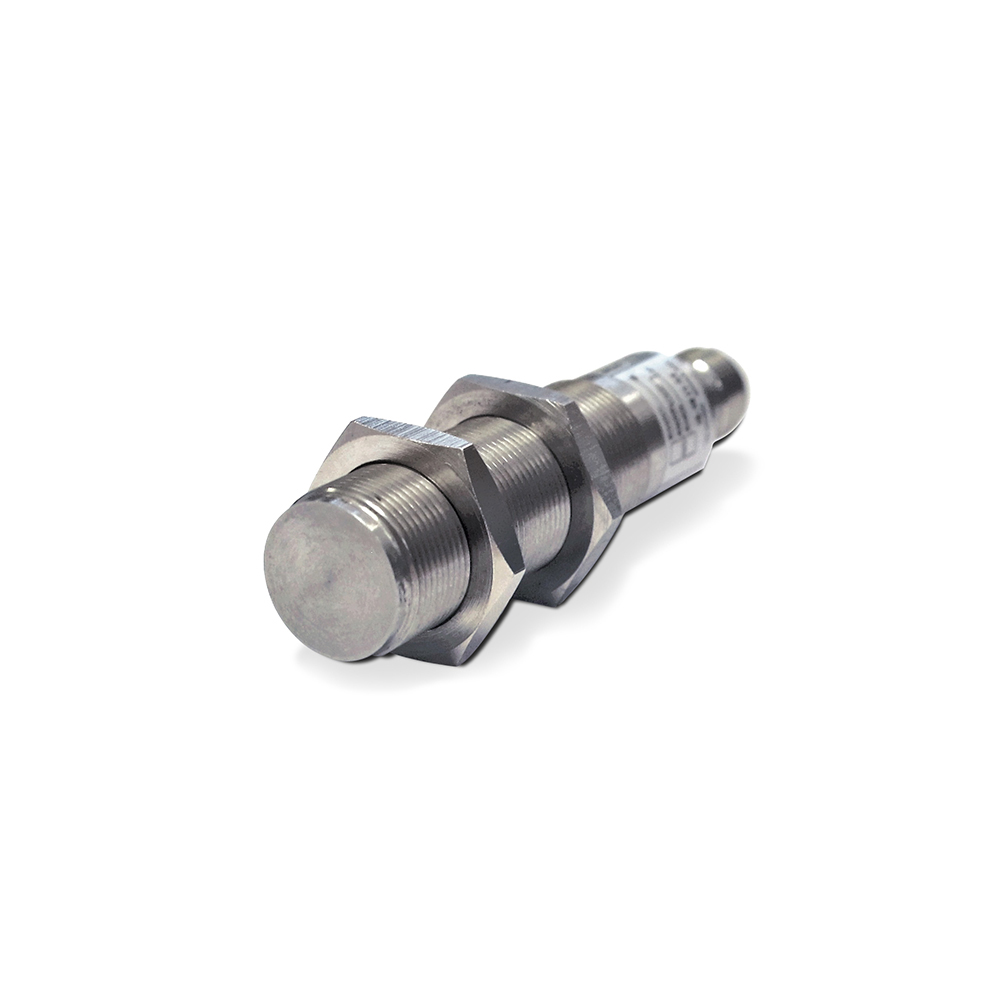

Inductive Proximity Sensor ø18 standard - metal face non flush 8 mm - pnp no 3 wires - M12
Orderable item
-
Description
Overview Standard proximity M4, M5, M8, M12, M18, M30 Double range (i.e. M12 4mm, M18 14mm, M3020mm) Unshielded or shielded models for flush mounting Nickel brass or stainless steel short and longhousing Ecolab and Diversey certifications for industrialdetergents Multi-voltage, Metal face, Weld field immune models NO/NC, NPN or PNP output and programmableversions.
Technical Features
Detection propertiesNominal sensing distance 8mm Operanting distance 0…6,48mm Standard target 24x24mm FE360 Correction Factor copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85 Repeat Accuracy < 1% (UB 24V Ta=23°C ±5°C) Hysteresis < 15% ApplicationDescription M18 metal face no-flush mount Functions Proximity OutputsOutput type PNP Output Function NO Switching frequency 500Hz Response time 1 Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current 200mA Output voltage drop ≤ 1,5V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Short-circuit protection Yes Reverse Polarity Protection Yes Emission ≥100kHz Protection against inductive loads Yes Mechanical dataMounting Unshielded Dimensions Ø18x79 Housing Material Stainless steel Connections M12 Plug Active Head Material Stainless steel AISI303 Tightening torque 20Nm Material Stainless steel Diameter/Dimension M18 Test/ApprovalsApprovals CE AccessoriesSupplied Accessories 2 nuts M18x1 Generical DataDimensions Ø18 / L = 79mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
