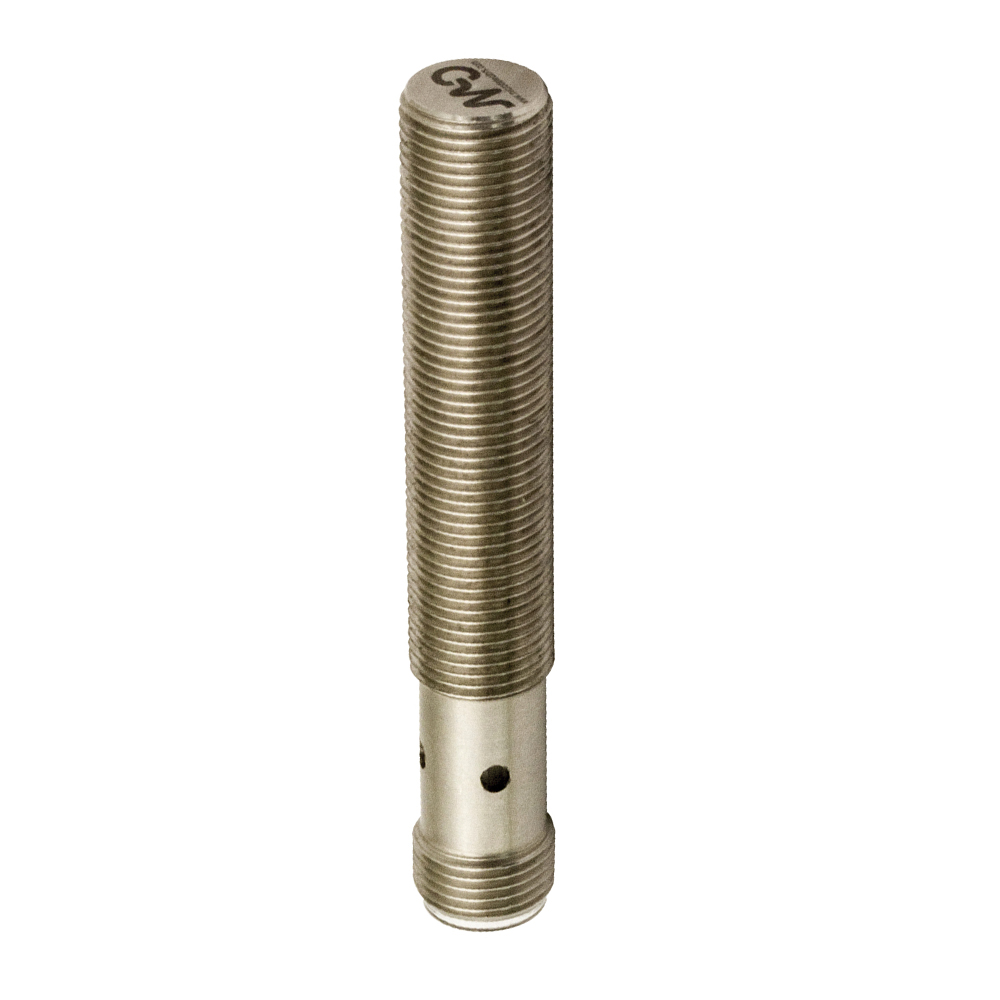

Inductive sensor full metal M12 PNP/NC M12 plug exit
Orderable item
-
Description
Overview
Technical Features
Detection propertiesNominal sensing distance 3mm Operanting distance 0…2,43mm Standard target 12x12mm FE360 Correction Factor copper: 0 / aluminium: 0 / brass: 0,1 / stainless steel: 0,53 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription M12 short flush mount Functions Proximity OutputsOutput type PNP Output Function NC Switching frequency 200Hz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current ≤ 200mA Leakage current ≤ 10μA Output voltage drop ≤ 1,5V @200mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical dataMounting Shielded Dimensions M12 x 1 / L = 52mm Weight 20g Housing Material AISI316L Stainless Steel Connections M12 Plug Active Head Material stainless steel AISI316L Tightening torque 10Nm Operating temperature -25°C…+70°C Material AISI316L Stainless Steel 0,25mm 0,50mm Diameter/Dimension M12 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP68, IP69K IK05 IK05 80bar 80bar AccessoriesSupplied Accessories 2 nuts M12x1 Generical DataDimensions M12 x 1 / L = 52mm Operating Temperature -25°C…+70°C Mechanical Protection IP68 / IP69K
