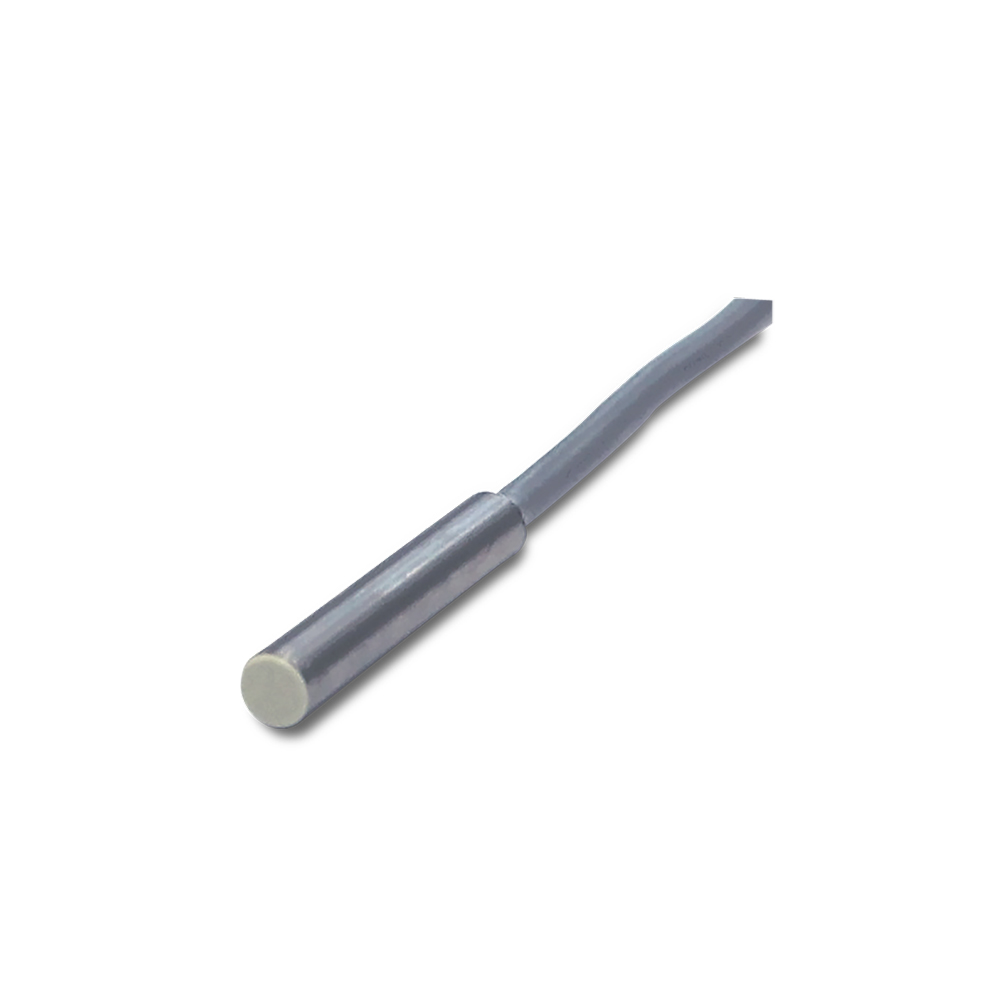

IS-12-H1-S2
IS-12-H1-S2
Inductive Proximity Sensor ø12 short - double range non flush 8 mm - pnp no 3 wires- M12
In Stock
-
Description
Overview Standard proximity M4, M5, M8, M12, M18, M30 Double range (i.e. M12 4mm, M18 14mm, M3020mm) Unshielded or shielded models for flush mounting Nickel brass or stainless steel short and longhousing Ecolab and Diversey certifications for industrialdetergents Multi-voltage, Metal face, Weld field immune models NO/NC, NPN or PNP output and programmableversions.
Technical Features
Detection propertiesNominal sensing distance 8mm Operanting distance 0…6,48mm Standard target 24x24mm FE360 Correction Factor copper: 0,4…0,5 / aluminium: 0,4…0,6 / brass: 0,5…0,7 / stainelss steel: 0,7…1,05 Repeat Accuracy < 3% (UB 24V Ta=23°C ±5°C) Hysteresis < 10% ApplicationDescription M12 short case no-flush mount Functions Proximity OutputsOutput type PNP Output Function NO Switching frequency 500Hz Response time 1 Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current 200mA Output voltage drop ≤ 1,8V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 75ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission ≥100kHz Protection against inductive loads Yes Mechanical dataMounting Unshielded Dimensions Ø12x54 Housing Material Nickel-plated brass Connections M12 Plug Active Head Material LCP Tightening torque 6Nm Material Nickel-plated brass Diameter/Dimension M12 Test/ApprovalsApprovals CE cULus ECOLAB DIVERSEY AccessoriesSupplied Accessories 2 nuts M12x1 Generical DataDimensions Ø12 / L = 54mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
