I.M30,PNP-NO,Cable,Sch-LD,ATEX

Ind.M30,PNP-NO,Cable,Sch-LD

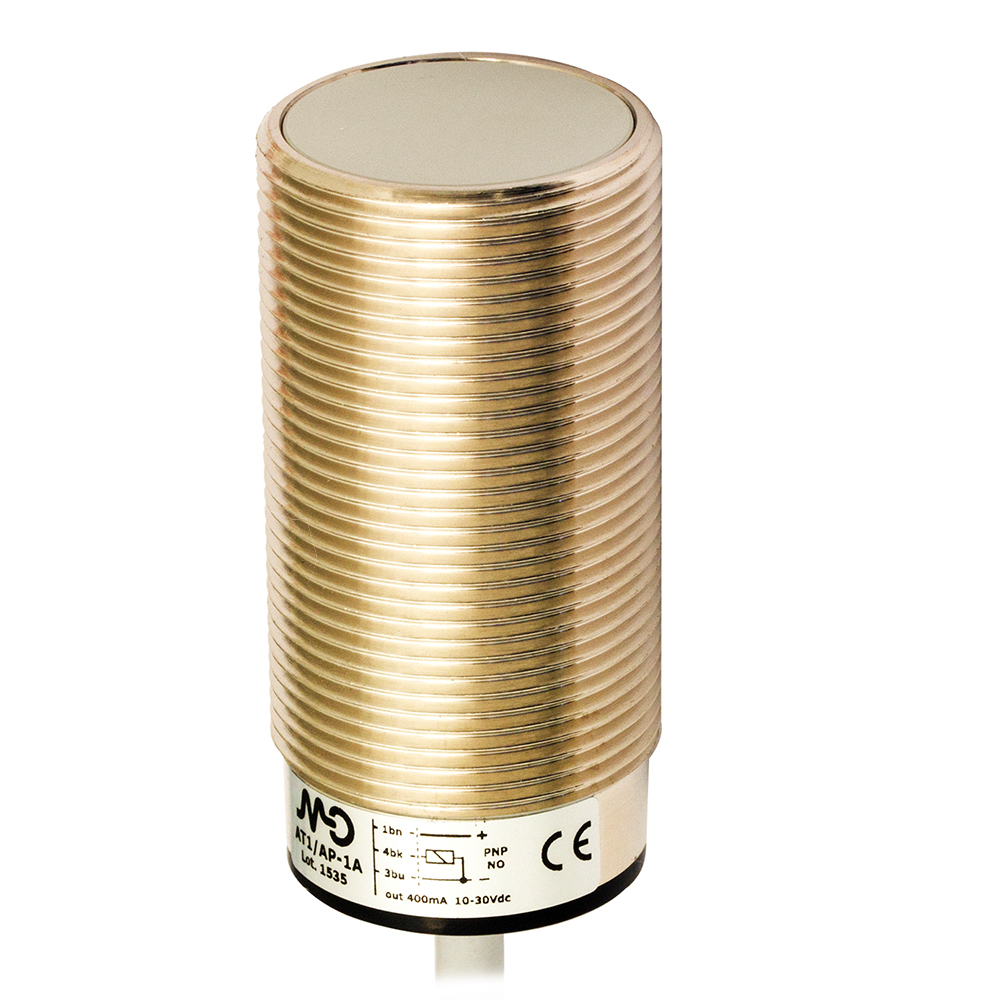

Inductive sensor M30 shielded NO/PNP cable 2m axial II 3G Ex nA IIC T5, II 3D Ex tD A22 IP67 T90°C

Article no.: AT1/AP-3AAN
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 15mm
    Operanting distance 0…12,1mm
    Standard target 45x45mm FE360
    Correction Factor copper: 0,35 / aluminium: 0,45 / brass: 0,50 / stainless steel: 0,70
    Thermal drift of Sr < 10%
    Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
    Hysteresis 1 … 20%
    Application
    Description M30 standard flush mount
    Functions Proximity
    Outputs
    Output type PNP
    Output Function NO
    Switching frequency 200Hz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 20mA
    Load current ≤ 400mA
    Leakage current ≤ 10μA
    Output voltage drop ≤ 1V @400mA
    Max ripple content ≤ 10%
    LED indicators Yellow LED output state
    Time delay before availability ≤100ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Protection against inductive loads Yes
    Mechanical data
    Mounting Shielded
    Housing Material Nickel-plated brass
    Connections 2m PVC Cable
    Active Head Material PBT
    Tightening torque 50Nm
    Material Nickel-plated brass
    Diameter/Dimension M30
    Test/Approvals
    Approvals CE UR II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories 2 nuts M30x1.5
    Generical Data
    Dimensions M30 x 1,5 / L = 60mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
