M18,0-10V+4-20mA,M12,Sch-LD
Ind.M18,0-10V+4-20mA,M12 Plug,Sch-LD

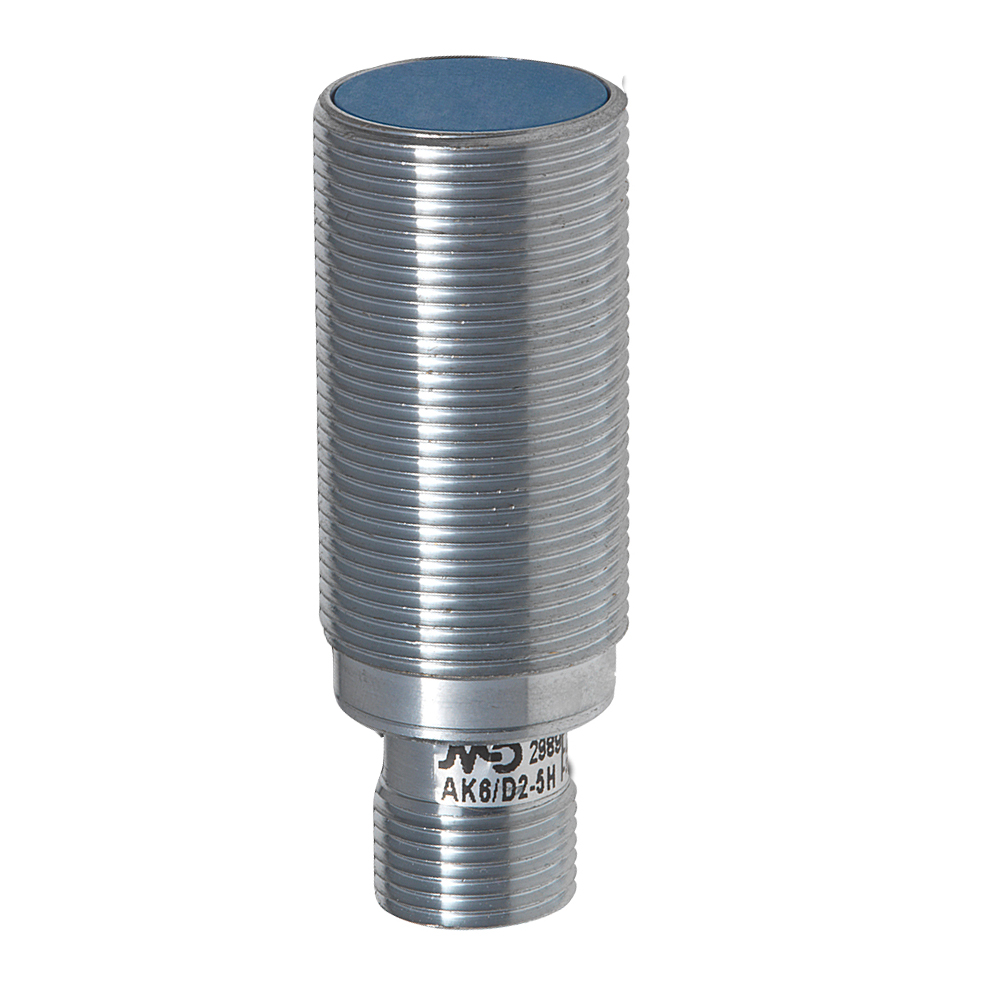

Inductive sensor M18 0-10 V+ 4-20 mA conn. M12 Sn 10 mm
Orderable item
-
Description
Technical Features
Detection propertiesNominal sensing distance 0…10mm Operanting distance 0…10mm Standard target 30x30mm FE360 Thermal drift of Sr < 10% Repeat Accuracy 0,3mm (UB 20...30Vcc/Vdc Ta=23°C ±5°C) Resolution ≤2µm ApplicationDescription M18 short case no-flush mount Functions Proximity OutputsOutput type Analogue Output Function Analogue Voltage Analogue Output 1 x 0...10V Current Analogue Output 1 x 4...20mA Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 12mA Load current ≤ 10mA 0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C) 500Hz 4mA ± 0,≤ 8mA (23°C) 20mA ± 0,≤ 8mA (23°C) 500Ω (UB = 15V) / 1kΩ (UB = 30V) Max ripple content ≤ 20% Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Max output current 4mA ± 0,≤ 8mA (23°C) 20mA ± 0,≤ 8mA (23°C) Impulsive Overvoltage Protection Yes Maximum capacitance load 500Ω (UB = 15V) / 1kΩ (UB = 30V) Output voltage 0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C) Mechanical dataMounting Partially Shielded Dimensions M18 x 1 / L = 48,5mm Weight 55g Housing Material Nickel-plated brass Connections M12 Plug Active Head Material PBT Tightening torque 25Nm Operating temperature -25°C…+70°C Material Nickel-plated brass Diameter/Dimension M18 Test/ApprovalsApprovals CE EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories 2 nuts M18x1 Generical DataDimensions M18 x 1 / L = 48,5mm Operating Temperature -25°C…+70°C Mechanical Protection IP67
