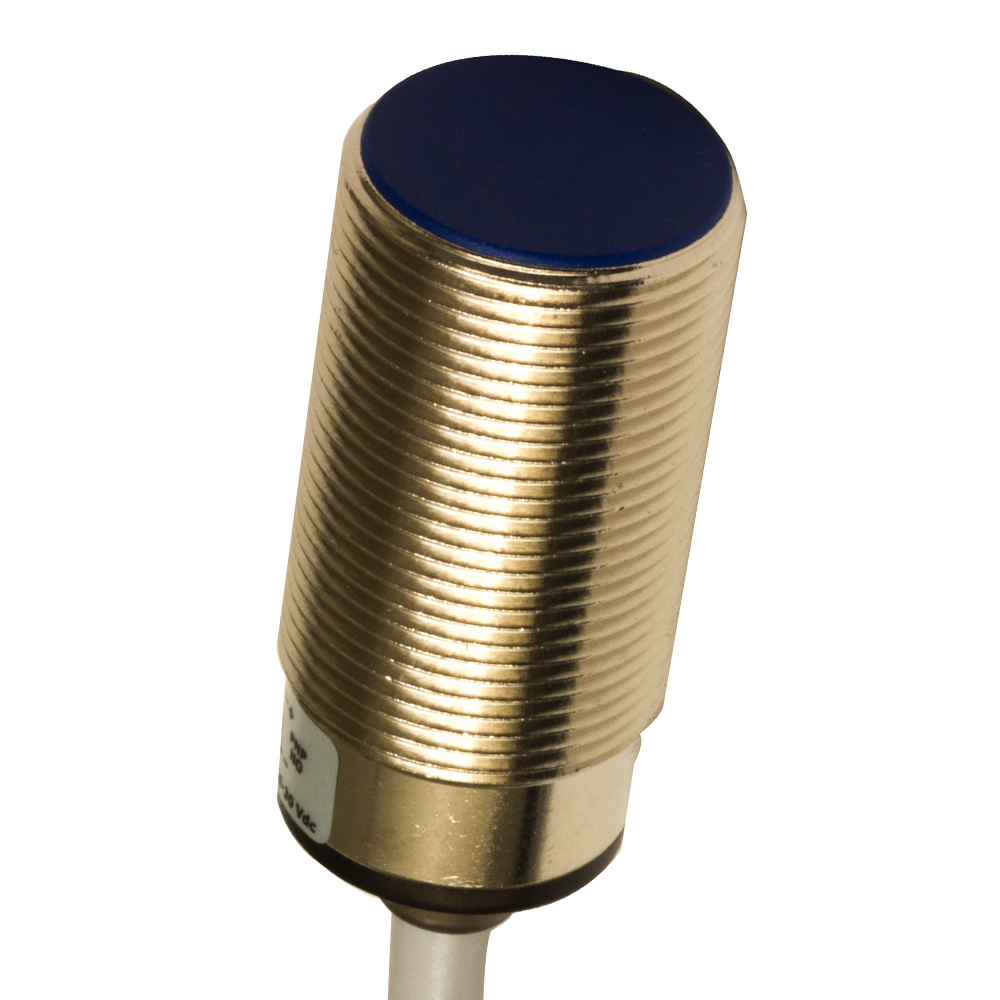

Inductive sensor M18 0-10 V+ 4-20 mA Sn 10 mm cable 2m axial

Article no.: AK6/D2-5A
Orderable item
Register
  • Description
    Overview

    Technical Features

    Detection properties
    Nominal sensing distance 0…10mm
    Operanting distance 0…10mm
    Standard target 30x30mm FE360
    Thermal drift of Sr ≤ 10%
    Repeat Accuracy 0,3mm (UB 20...30Vcc/Vdc Ta=23°C ±5°C)
    Resolution ≤2µm
    Application
    Description M18 short case no-flush mount
    Functions Proximity
    Outputs
    Output type Analogue
    Output Function Analogue
    Voltage Analogue Output 1 x 0...10V
    Current Analogue Output 1 x 4...20mA
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 12mA
    Load current ≤ 10mA
    0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C)
    500Hz
    4mA ± 0,≤ 8mA (23°C) 20mA ± 0,≤ 8mA (23°C)
    500Ω (UB = 15V) / 1kΩ (UB = 30V)
    Max ripple content ≤ 20%
    Time delay before availability ≤ 50ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Max output current 4mA ± 0,≤ 8mA (23°C) 20mA ± 0,≤ 8mA (23°C)
    Impulsive Overvoltage Protection Yes
    Maximum capacitance load 500Ω (UB = 15V) / 1kΩ (UB = 30V)
    Output voltage 0V - 0 + 0,4V (23°C) +5,2V ± 0,4V (23°C) +10V ± 0,4V (23°C)
    Mechanical data
    Mounting Partially Shielded
    Dimensions M18 x 1 / L = 36mm
    Weight 116g
    Housing Material Nickel-plated brass
    Connections 2m PVC Cable
    Active Head Material PBT
    Tightening torque 25Nm
    Operating temperature -25°C…+70°C
    Material Nickel-plated brass
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories 2 nuts M18x1
    Generical Data
    Dimensions M18 x 1 / L = 36mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
