M12,2 wires DC-NO,Cabl,Nsch-LD
Ind.M12,2 wires DC-NO,Cable,Nsch-LD

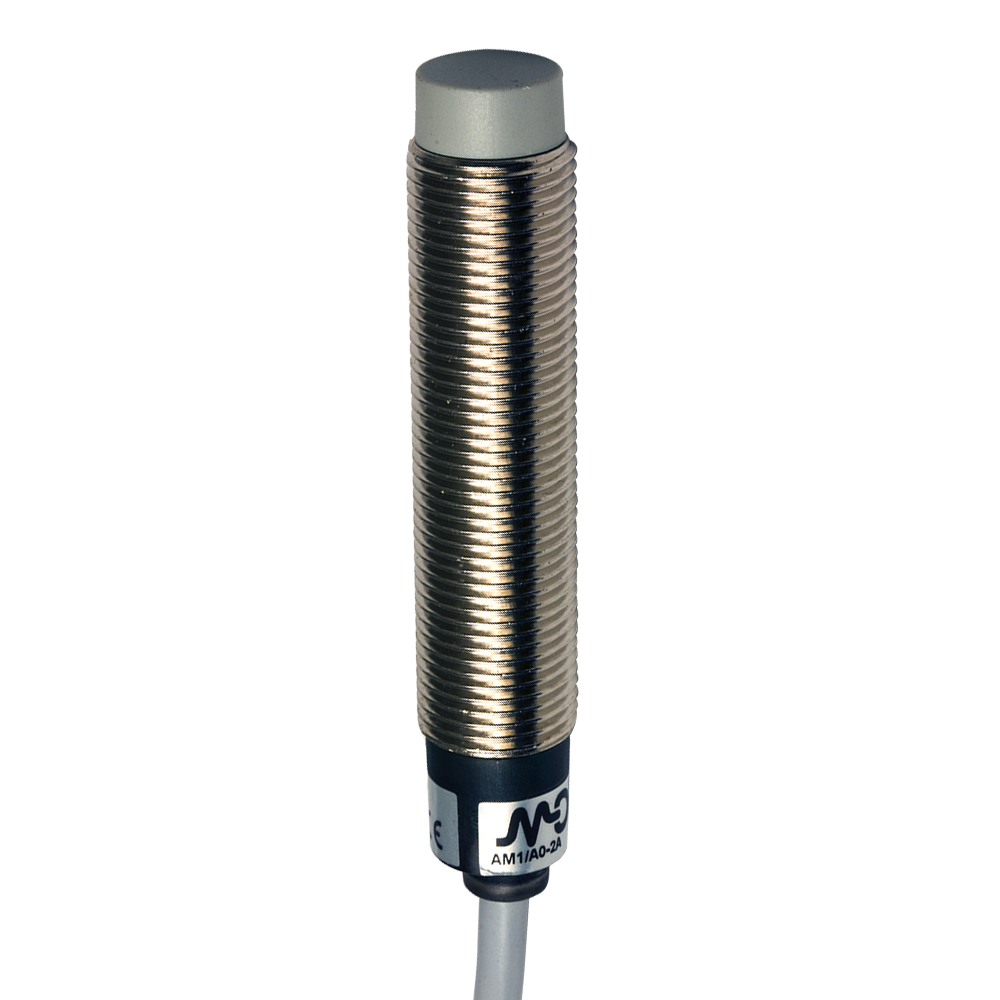

Inductive sensor M12 unshielded NO cable 2m axial
Orderable item
-
Description
Overview Wide range of models: standard, short body, long distance Output: cable, M12 and M8 plug cable exit Models with 2, 3 wires ATEX models, cat. 3, available on request
Technical Features
Detection propertiesNominal sensing distance 8mm Operanting distance 0…6,48mm Standard target 24x24mm FE360 Correction Factor copper: 0,51 / aluminium: 0,56 / brass: 0,62 / stainless steel: 0,78 Thermal drift of Sr < 10% Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C) Hysteresis 1 … 20% ApplicationDescription M12 standard no-flush mount Functions Proximity OutputsOutput type NPN/PNP Output Function NO Switching frequency 750Hz Electrical dataOperating Voltage 10...30Vdc No-Load supply current ≤ 10mA Load current 3…100mA Leakage current ≤ 0,≤ 8mA Output voltage drop ≤ 2,8V @100mA Max ripple content ≤ 10% LED indicators Yellow LED output state Time delay before availability ≤ 50ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Protection against inductive loads Yes Mechanical dataMounting Unshielded Dimensions M12 x 1 / L = 60mm Weight 70g Housing Material Nickel-plated brass Connections 2m PVC Cable Active Head Material PBT Tightening torque 10Nm Operating temperature -25°C…+70°C Material Nickel-plated brass Diameter/Dimension M12 Test/ApprovalsApprovals CE UR EMC compatibility IEC 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories 2 nuts M12x1 Generical DataDimensions M12 x 1 / L = 60mm Operating Temperature -25°C…+70°C Mechanical Protection IP67 -
