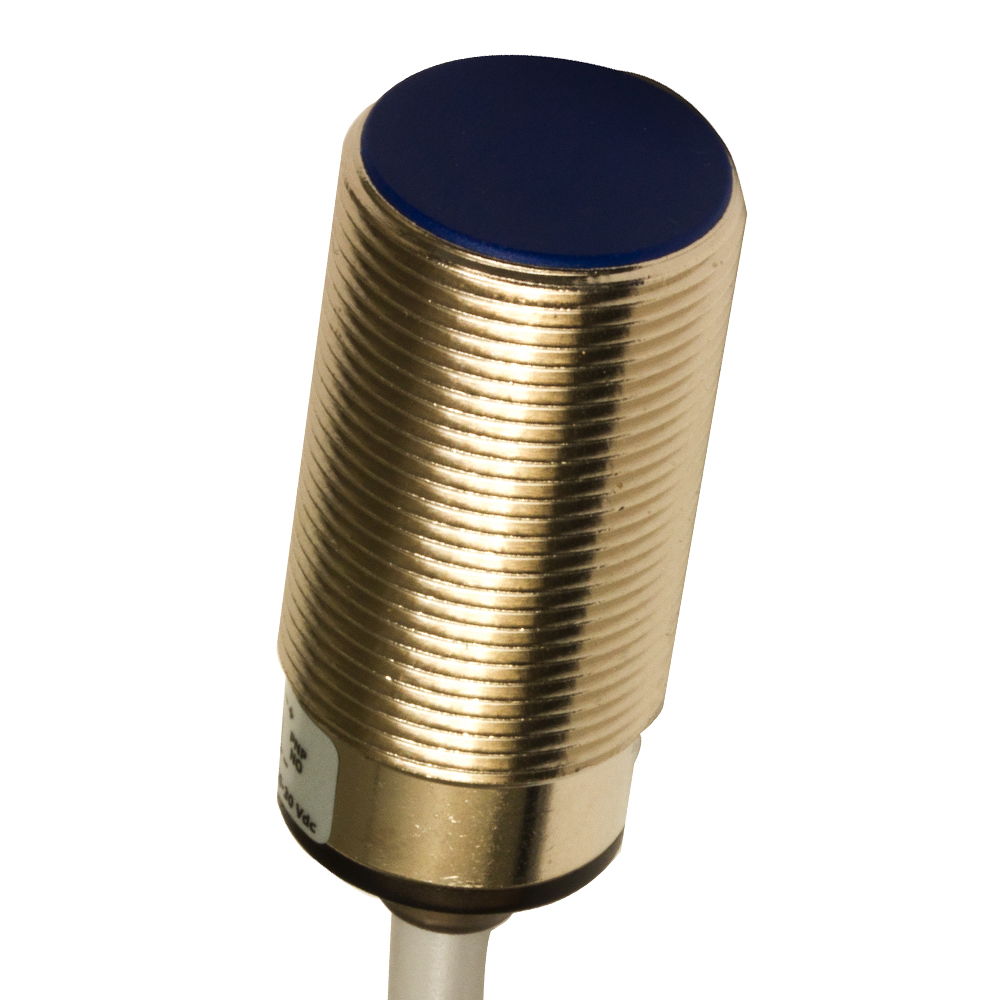

Ind.M18,PNP-NO,Cable,Sch-LD

Ind.M18,PNP-NO,Cable,Sch-LD
Inductive sensor M18 short shielded NO/PNP cable 2m axial PUR

Article no.: AK6/AP-3A8F
In Stock
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 8mm
    Operanting distance 0…6,48mm
    Standard target 24x24mm FE360
    Correction Factor copper: 0,39 / aluminium: 0,45 / brass: 0,51 / stainless steel: 0,77
    Thermal drift of Sr < 10%
    Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
    Hysteresis 1 … 20%
    Application
    Description M18 short case flush mount
    Functions Proximity
    Outputs
    Output type PNP
    Output Function NO
    Switching frequency 2,5kHz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 10mA
    Load current ≤ 400mA
    Leakage current ≤ 10μA
    Output voltage drop ≤ 1,5V @400mA
    Max ripple content ≤ 10%
    LED indicators Yellow LED output state
    Time delay before availability ≤ 50ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Protection against inductive loads Yes
    Mechanical data
    Mounting Shielded
    Housing Material Nickel-plated brass
    Connections 2m PUR Cable
    Active Head Material PBT
    Tightening torque 25Nm
    Material Nickel-plated brass
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE UR
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories 2 nuts M18x1
    Generical Data
    Dimensions M18 x 1 / L = 39mm
    Operating Temperature -25°C…+70°C
    Mechanical Protection IP67
