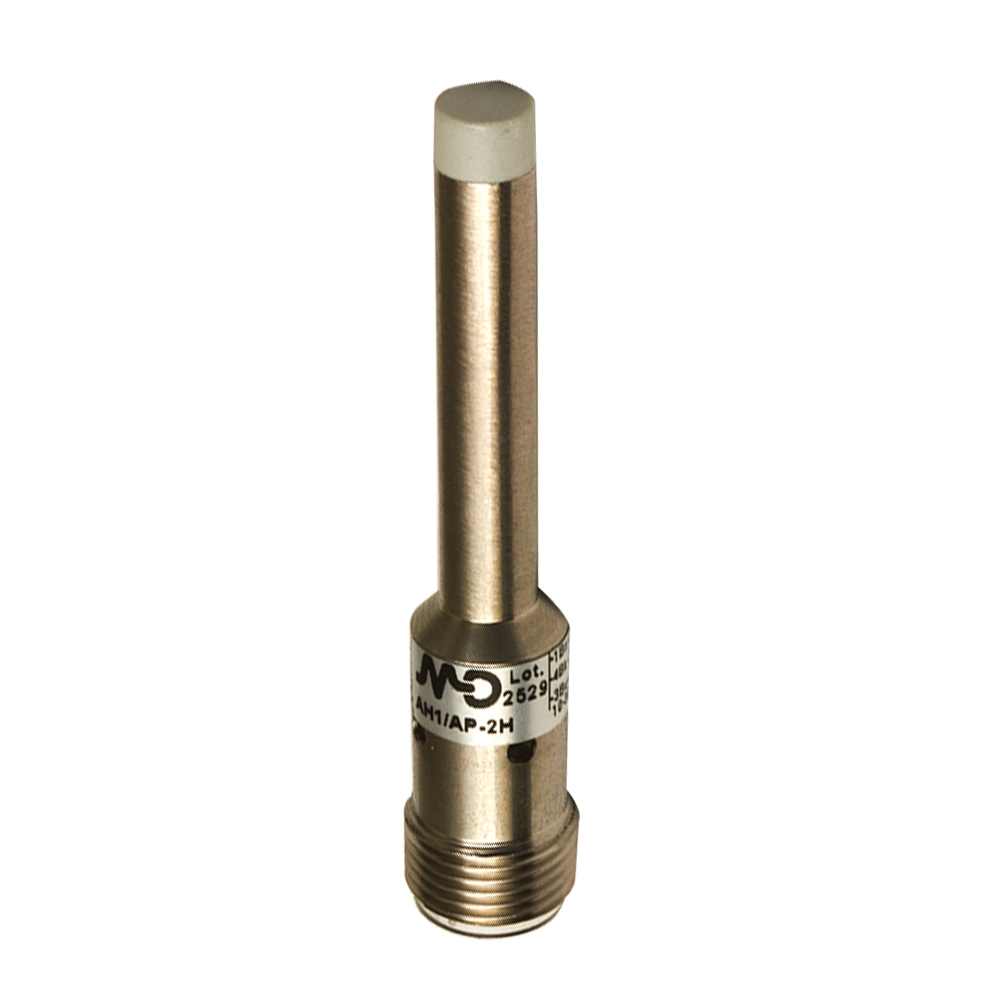

In.d6,5,NPN-NC,M12Plug,NSchSTD

Name: In.d6,5,NPN-NC,M12Plug,NSchSTD
SKU: AH1/CN-2H
Availability: BackOrder

Ind.d6,5,NPN-NC,M12 Plug,Nsch-STD
Inductive sensor Ø6,5 mm unshielded NC/NPN plug M12

Article no.: AH1/CN-2H

Orderable item

Overview Extremely reduced dimensions Metal housing (stainless steel) LED status indicator 360° visible IP 67 protection degree ATEX models, cat. 3, available on request Complete protection against electrical damages Standard and long distance models Standard and short body housing

Technical Features

Detection properties

Nominal sensing distance	2,5mm
Operanting distance	0…2,02mm
Standard target	8x8mm FE360
Correction Factor	copper: 0,39 / aluminium: 0,45 / brass: 0,54 / stainless steel: 0,81
Thermal drift of Sr	< 10%
Repeat Accuracy	< 5% (UB 24V Ta=23°C ±5°C)
Hysteresis	1 … 20%

Application

Description	Ø6,5 standard no-flush mount
Functions	Proximity

Outputs

Output type	NPN
Output Function	NC
Switching frequency	5kHz

Electrical data

Operating Voltage	10...30Vdc
No-Load supply current	≤ 10mA
Load current	≤ 200mA
Leakage current	≤ 10μA
Output voltage drop	≤ 1,8V @200mA
Max ripple content	≤ 10%
LED indicators	Yellow LED output state
Time delay before availability	≤ 50ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Impulsive Overvoltage Protection	Yes
Protection against inductive loads	Yes

Mechanical data

Mounting	Unshielded
Dimensions	Ø6,5 / L = 60mm
Weight	5g
Housing Material	AISI303 Stainless Steel
Connections	M12 Plug
Active Head Material	PBT
Operating temperature	-25°C…+70°C
Material	AISI303 Stainless Steel
Diameter/Dimension	Ø6,5

Test/Approvals

Approvals	CE UR
EMC compatibility	IEC 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Generical Data

Dimensions	Ø6,5 / L = 60mm
Operating Temperature	-25°C…+70°C
Mechanical Protection	IP67
